The VHF/UHF APC detector circuits (PA unit; D501, D504,
D401, D404) detect the forward and reflection signals and
convert into DC voltages. The converted DC voltages are
combined and applied to the ALC amplifier (pins 1, 2) as
"VUFOR" voltage.
For the current APC, the driving current at the power ampli-
fiers is detected in the voltages ("ICH" and "ICL") which
appear at both terminals of detector resistors (PA unit; R721,
R722). The detected voltages are applied to the APC ampli-
fier (IC1601, pins 5–7).
When the current of the power amplifier exceeds 22 A, The
output voltage from the APC amplifier (IC1601, pin 7) con-
trols the ALC line to prevent excessive current flow.
3-2-12 RF, ALC, SWR METER CIRCUITS (LOGIC UNIT)
While transmitting, RF, ALC or SWR meter readings are
available and can be selected with the [F3 (MET)] switch.
(1) Power meter
The "FOR," "VFOR" and "UFOR" voltages are combined to
the "FORL" voltage, and it is then applied to the main CPU
(IC1302, pin 113) for indicating the TX output power.
(2) ALC meter
The ALC bias voltage from the buffer amplifier (MAIN unit;
IC1601, pin 14) is applied to the main CPU (IC1302, pin 115)
via the "ALCL" signal line for indicating the ALC level.
(3) SWR meter
The "FORL" and "REFL" voltages are applied to the main
CPU (IC1302, pins 113, 114) respectively. The main CPU
compares the ratio of "FORL" to "REFL" voltage and indi-
cates the SWR for the [ANT1] connector.

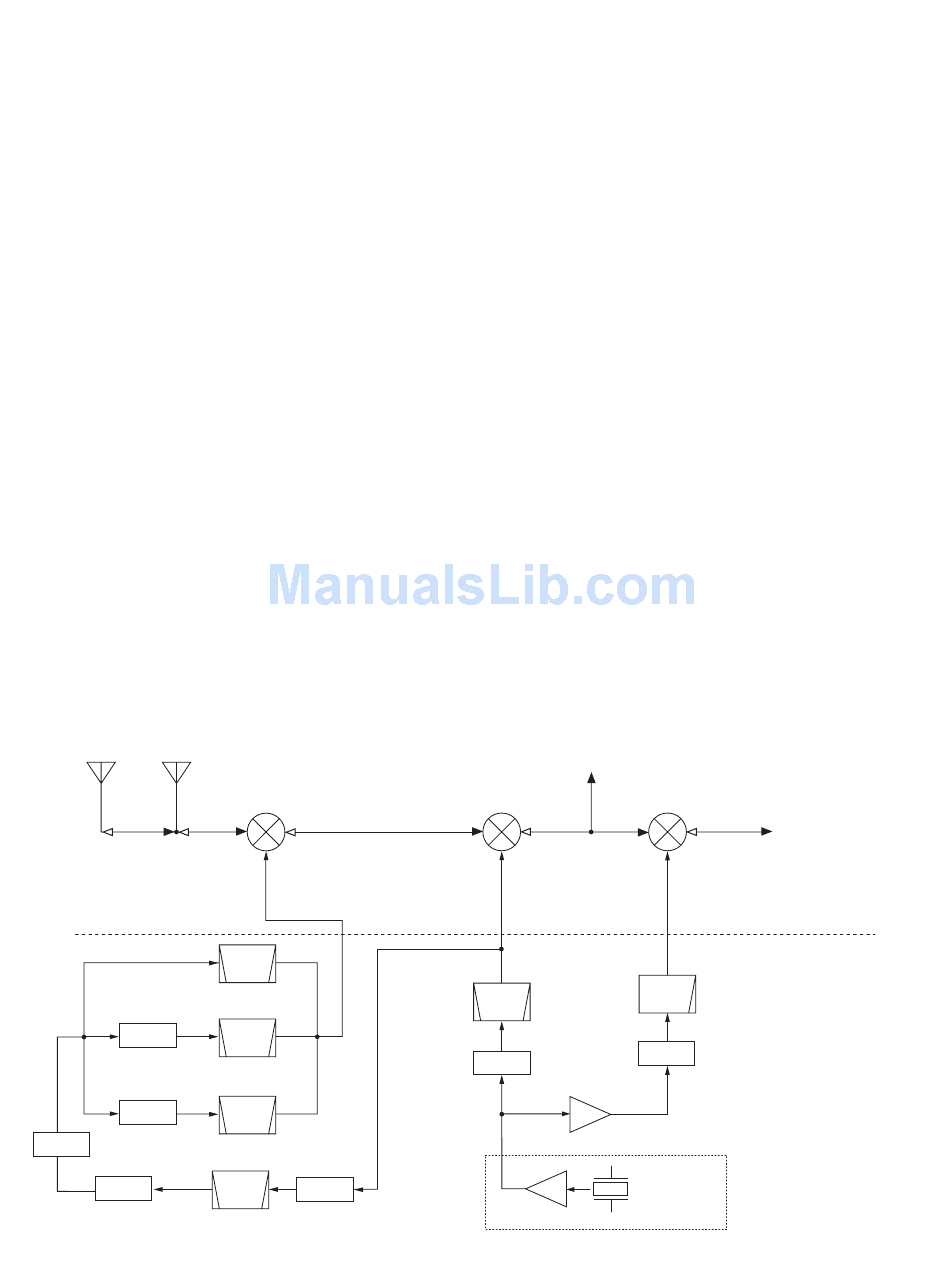

• FREQUENCY CONSTRUCTION

[ANT2]
[ANT1]
0.03– 60–
60 MHz 470 MHz
MAIN UNIT
DDS UNIT
×2
D456
×4
D471
×2
Q301
DDS
IC301
372.096 MHz
(system clock)
1st mixer
IC401
1st IF: 124.487 MHz
(WFM: 134.732 MHz)
124.517–
594.487 MHz
(1st LO)
BPF
124.517–
154.486999 MHz
BPF
154.487–
324.486999 MHz
BPF
524.487–
594.487 MHz
×3
BPF
Q201
FI201

3-3 DDS CIRCUITS

3-3-1 GENERAL
The DDS unit generates a 1st LO (124.517–594.487 MHz),
a 2nd LO (124.032 MHz) and a 3rd LO (438.85 kHz) fre-
quencies.
3-3-2 1ST LO CIRCUIT (DDS UNIT)
The 1st LO circuit generates a 1st LO signal based on the
system clock that is tripled the 2nd LO frequency.
The 124.032 MHz 2nd LO signal is applied to the tripler
circuit (Q201) and then passed through the high-pass filter
(L205, L206, L210, C206–C210, C217–C219). The filtered
signal is amplified at Q211 and then passed through the
bandpass filter (FI201). The filtered signal is applied to the
DDS IC (IC301) as the 372.096 MHz system clock. The
DDS IC generates 38.62189–199.999999 MHz frequency
based on the system clock. The output signal from the DDS
IC (IC301, pins 20, 21) is applied to the doubler circuit
(D301) and then amplified at IC401 (pins 1, 4) after being
passed through the low-pass filter (L331, L332, C331, C332,
C335). The amplified signal is applied to one of the multiplier
circuits which is selected from the readout frequency and
then amplified at IC451 (pins 1, 5). The amplified signal is
passed through the bandpass filters.
The filtered signal is applied to the 1st mixer circuit (MAIN
unit) via J851.
to WFM detector
(IC1401)
2nd mixer
D801
2nd IF: 455 kHz
124.032 MHz
(2nd LO)
BPF FI101
×5 Q101
AMP.
IC61
AMP.
Q1
3 - 7
3rd mixer
IC1101
to DSP circuit
3rd IF: 16.15 kHz
438.85 kHz
(3rd LO)
LPF
DDS
IC51
24.8064 MHz
(system clock)
Ref. Osc.
24.8064 MHz
X1
