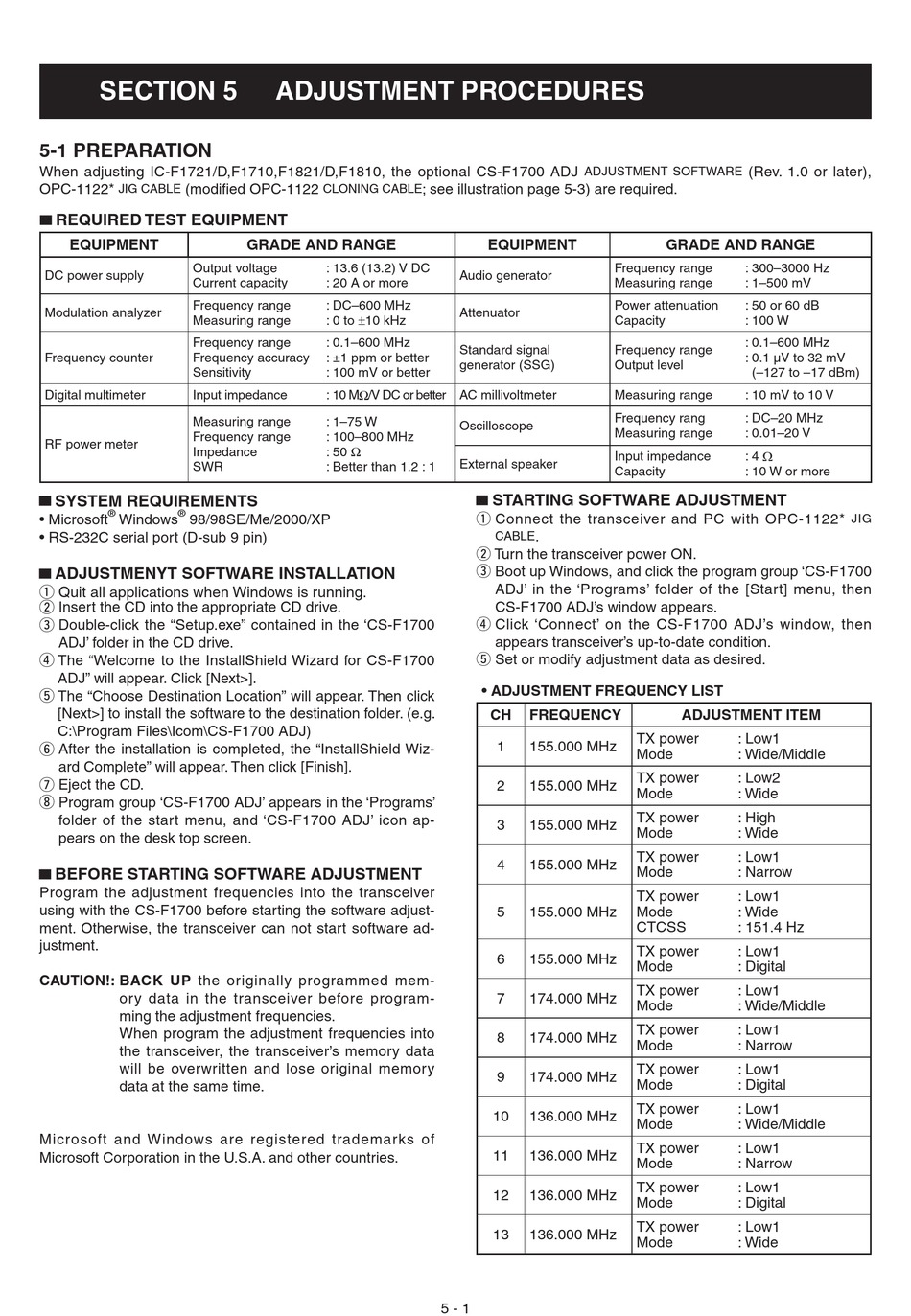

SECTION 5

5-1 PREPARATION

When adjusting IC-F1721/D,F1710,F1821/D,F1810, the optional CS-F1700 ADJ
OPC-1122* (modifi ed OPC-1122
JIG CABLE
▄ REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
Frequency range
Modulation analyzer
Measuring range
Frequency range
Frequency counter Frequency accuracy
Sensitivity
Digital multimeter Input impedance
Measuring range
Frequency range
RF power meter
Impedance
SWR
▄ SYSTEM REQUIREMENTS
® ®
• Microsoft Windows 98/98SE/Me/2000/XP
• RS-232C serial port (D-sub 9 pin)
▄ ADJUSTMENYT SOFTWARE INSTALLATION
q Quit all applications when Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the "Setup.exe" contained in the 'CS-F1700
ADJ' folder in the CD drive.
r The "Welcome to the InstallShield Wizard for CS-F1700
ADJ" will appear. Click [Next>].
t The "Choose Destination Location" will appear. Then click
[Next>] to install the software to the destination folder. (e.g.
C:\Program Files\Icom\CS-F1700 ADJ)
y After the installation is completed, the "InstallShield Wiz-
ard Complete" will appear. Then click [Finish].
u Eject the CD.
i Program group 'CS-F1700 ADJ' appears in the 'Programs'
folder of the start menu, and 'CS-F1700 ADJ' icon ap-
pears on the desk top screen.
▄ BEFORE STARTING SOFTWARE ADJUSTMENT
Program the adjustment frequencies into the transceiver
using with the CS-F1700 before starting the software adjust-
ment. Otherwise, the transceiver can not start software ad-
justment.
CAUTION!: BACK UP the originally programmed mem-
ory data in the transceiver before program-
ming the adjustment frequencies.
When program the adjustment frequencies into
the transceiver, the transceiver's memory data
will be overwritten and lose original memory
data at the same time.
Microsoft and Windows are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
ADJUSTMENT PROCEDURES
CLONING CABLE
GRADE AND RANGE
: 13.6 (13.2) V DC
: 20 A or more
: DC–600 MHz
: 0 to ±10 kHz
: 0.1–600 MHz
: ±1 ppm or better
: 100 mV or better
: 10 MΩ/V DC or better AC millivoltmeter
: 1–75 W
: 100–800 MHz
: 50 Ω
: Better than 1.2 : 1
ADJUSTMENT SOFTWARE
; see illustration page 5-3) are required.
EQUIPMENT
Audio generator
Attenuator
Standard signal
generator (SSG)
Oscilloscope
External speaker
▄ STARTING SOFTWARE ADJUSTMENT
q Connect the transceiver and PC with OPC-1122*
.
CABLE
w Turn the transceiver power ON.
e Boot up Windows, and click the program group 'CS-F1700
ADJ' in the 'Programs' folder of the [Start] menu, then
CS-F1700 ADJ's window appears.
r Click 'Connect' on the CS-F1700 ADJ's window, then
appears transceiver's up-to-date condition.
t Set or modify adjustment data as desired.
• ADJUSTMENT FREQUENCY LIST
CH FREQUENCY
1 155.000 MHz
2 155.000 MHz
3 155.000 MHz
4 155.000 MHz
5 155.000 MHz
6 155.000 MHz
7 174.000 MHz
8 174.000 MHz
9 174.000 MHz
10 136.000 MHz
11 136.000 MHz
12 136.000 MHz
13 136.000 MHz
5 - 1
(Rev. 1.0 or later),
GRADE AND RANGE
Frequency range : 300–3000 Hz
Measuring range : 1–500 mV
Power attenuation : 50 or 60 dB
Capacity : 100 W
: 0.1–600 MHz
Frequency range
: 0.1 µV to 32 mV
Output level
(–127 to –17 dBm)
Measuring range : 10 mV to 10 V
Frequency rang : DC–20 MHz
Measuring range : 0.01–20 V
: 4 Ω
Input impedance
Capacity : 10 W or more
ADJUSTMENT ITEM
TX power : Low1
Mode : Wide/Middle
TX power : Low2
Mode : Wide
TX power : High
Mode : Wide
TX power : Low1
Mode : Narrow
TX power : Low1
Mode : Wide
CTCSS : 151.4 Hz
TX power : Low1
Mode : Digital
TX power : Low1
Mode : Wide/Middle
TX power : Low1
Mode : Narrow
TX power : Low1
Mode : Digital
TX power : Low1
Mode : Wide/Middle
TX power : Low1
Mode : Narrow
TX power : Low1
Mode : Digital
TX power : Low1
Mode : Wide
JIG
