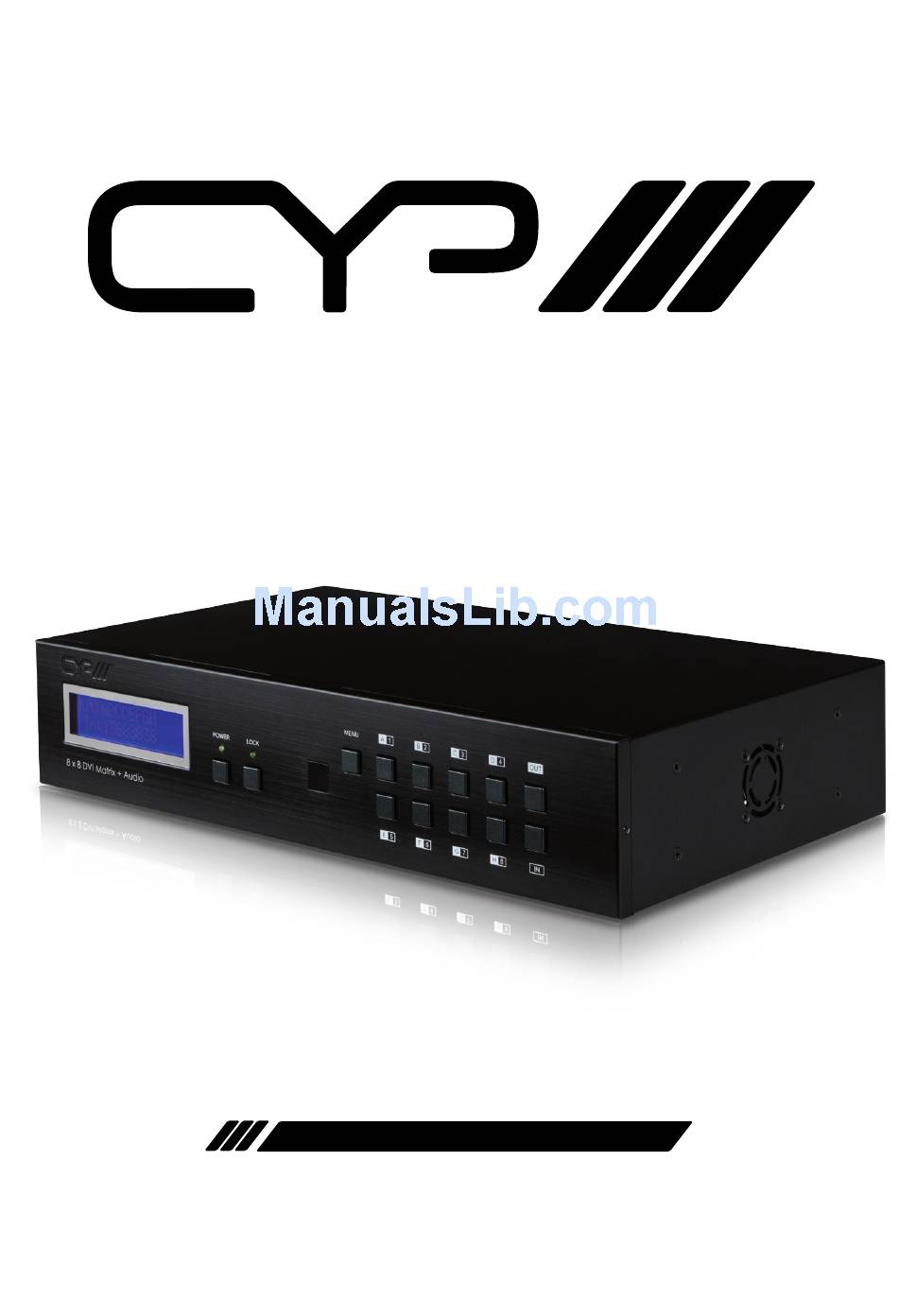

- Page 1 OR-DVI88SA 8 x 8 DVI Matrix with Audio OPERATIONS MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Side Panel ...........10 6.4 Remote Control ........10 6.5 RS-232 Protocols ........11 6.6 RS-232 Commands ........12 7. -
Page 6: Introduction

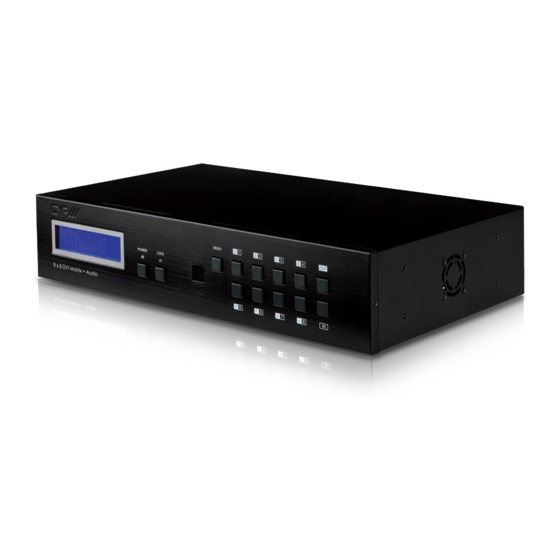

1. INTRODUCTION The OR-DVI88S Matrix Switcher connects eight DVI sources to eight displays allowing any source to be independently displayed on any screen connected to the DVI matrix outputs. This matrix switcher can be controlled via the supplied IR Remote Control, RS-232, or by using the selection buttons on the front of the unit. -
Page 7: Features
5. FEATURES Resolutions supported: PC - VGA to WUXGA; HDTV - 480i to 1080p plus 1080p24fps. Supports DVI input up to 15m with 8bit Colour depth or 10m with 12bit Colour depth. Input is Compensated, Clock / Phase Adjusted, and Jitter Eliminated RS-232 and IR Remote Control, plus IR extender Supports Audio Supports 'Deep Colour' (10 &... -
Page 8: Front Panel
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK 8X8 DVI MATRIX CMSI-8D8DSA LCM: This monitor displays your setting information with each input and output selection. POWER button & LED: Press this button to turn on the device and the green LED will illuminate when the power is on. -
Page 9: Rear Panel
6.2 Rear Panel DVI OUT DVI OUT DVI IN 2 3 4 LAN: Reserved. RS-232: This slot is to connect with D-Sub 9pin cable from the PC/NB device for RS-232 control. IR-IN: This slot is to connect with the IR extender included in the package for IR signal receiving from the remote control of this device. -
Page 10: Side Panel
6.3 Side Panel VENTILATOR: These are fan ventilator area, DO NOT block these area or cover it with any object. 6.4 Remote Control Power: Press this button to switch on the device or set it to standby mode. IN: Input ports selection 1~8. OUT: Output ports selection A~H. -
Page 11: Rs-232 Protocols
6.5 RS-232 Protocols CMSI-8D8DSA Remote Control Console Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 12: Rs-232 Commands
6.6 RS-232 Commands Command Description A1~A8 Switch output A to 1~8 B1~B8 Switch output B to 1~8 C1~C8 Switch output C to 1~8 D1~D8 Switch output D to 1~8 E1~E8 Switch output E to 1~8 F1~F8 Switch output F to 1~8 G1~G8 Switch output G to 1~8 H1~H8... -
Page 13: Specifications
7. SPECIFICATIONS Video Bandwidth 225MHz/6.75 Gbps Input Ports 8 x DVI, 8 x 3.5mm Phone Jack 1 x IR, 1 x RS-232, 1 x mini USB B type (for firmware update only), 1 x RJ-45 (LAN) Output Ports 8 x DVI , 8 x 3.5mm Phone Jack ESD Protection Human body model: ±8 kV (air-gap discharge) -
Page 14: Connection And Installation
8. CONNECTION AND INSTALLATION Monitor Monitor Monitor Monitor Amplifier Amplifier Amplifier Amplifier Monitor Monitor Monitor Monitor Active Active Active Active Speakers Speakers Speakers Speakers Audio Equipment DVI OUT DC 24V DVI IN... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
