- Page 1 CMLUX-44S 4 by 4 HDMI V1.3 Matrix Operation Manual CMLUX-44S...
- Page 2 Revision History Version No. Date Summary of Change 20081001 Preliminary Release Precautions Failure to follow the precautions described below may cause damage to HDMI 1.3 Matrix Box and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction..…………………………………………........ 2. Application......…………………………………………..… 3. Package Contents.......……………………………….……. 4. System Requirements......……………………………..…… 5. Features........………………………………………...……….. 6. Installation........…………………………………...………….. 7. Front View........…………………………………...………….. 8. Remote Control.......…………………………………...……….…. 9. RS-232 Protocal.......…………………………………...………….. 9.1 Commands .......…………………………………...………….. 10. Connection and Installation..............11. Specifications.................. -
Page 4: Introduction
1. Introduction Thank you for purchasing HDMI V1.3 Matrix. While HDMI products are getting more and more popular in the market people usually have more than one HDMI devices and sources in one place. HDMI V1.3 Matrix provides the excellent solution for connecting all the devices and sources together for your convenience use, it also provides you a variety of choices on where to play your images with remote controller. -
Page 5: Features
5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. Supports digital video formats in Deep Color 12bit and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. The HDMI input is compensated, clock / phase adjusted, and jitter ... -
Page 6: Installation
6. Installation RS-232 DC 5V HDMI OUTPUT HDMI INPUT EDID EDID Control Switcher: Default factory setting is TV, leave as it is when the displays are working properly. Switch to STD to use built-in EDID Detail capability in Note. RS-232 communication port: Connect the COM port of your PC for the distant control over RS-232 channel. -
Page 7: Front View

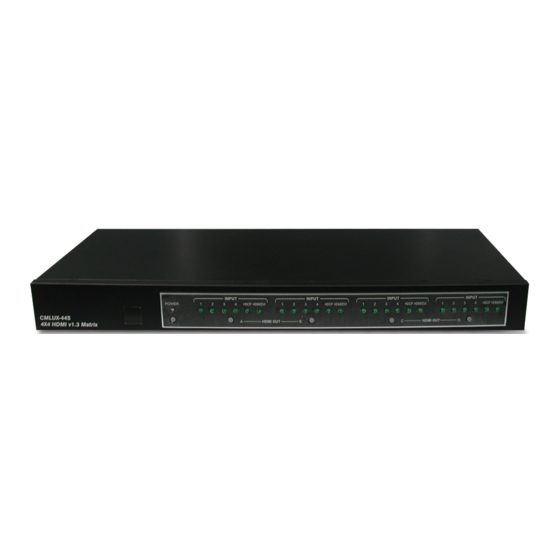

7. Front View POWER HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI HDCP HDMI/DVI CMLUX-44S HDMI OUT HDMI OUT 4X4 HDMI v1.3 Matri x 6 7 8 Remote control sensor. Power switch & LED Indicator: The LED will illuminate when the power is turned on. -
Page 8: Remote Control
OUT C. 5. Input Select for HDMI OUT D: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT D. 9. RS-232 Protocal Pin Definition CMLUX-44S Remote Control Console Definition Definition → ← Baud Rate: 9600bps... -
Page 9: Commands
9.1 Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13 Output A select Input3 PORT 14 Output A select Input4 PORT 21 Output B select Input1 PORT 22 Output B select Input2 PORT 23... -
Page 10: Connection And Installation
10. Connection and Installation Blu-ray HD TV HD TV HD TV HD TV... -
Page 11: Specifications
11. Specifications Frequency Bandwidth 2.25Gbps (single link) Input Ports 4 x HDMI female ports, Output Ports 4 x HDMI female ports EDID Standard, TV/Moving Port 1 HDMI Audio Output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D- TrueHD, DTS-HD HDMI Cable in 1080p 8bit (15M), 1080p 12bit (15M) HDMI Cable out 1080p 8bit (15M), 1080p 12bit (6M) - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20081013 MPM-CMLUX44S...
