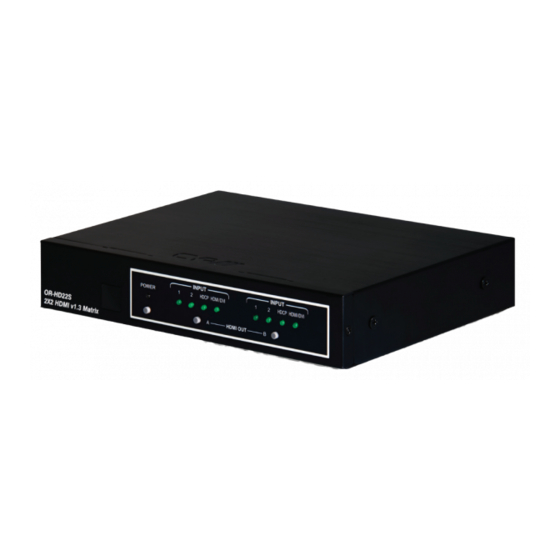

  • Page 1 OR-HD22S v1.3 HDMI 2 x 2 Matrix Switcher OPERATION MANUAL...
  • Page 2 Precautions Failure to follow the precautions described below may cause damage to this v1.3 HDMI Matrix and void the warranty. • DO NOT open the case. This will void the warranty, if you find a problem with this product, please return it to your retailer or seller who will assist you or provide you with a solution.

  • Page 3: Table Of Contents

    Table of Contents Introduction Application Package Contents System Requirements Features Operation Controls and Functions Rear Panel Front Panel Remote Control RS-232 Protocol Command Sets Connection Diagram Specifications Finden Sie ab Seite 9.

  • Page 4: Introduction

    1. Introduction Thank you for purchasing this HDMI V1.3 Matrix. As HDMI products become increasingly popular, users often have multiple HDMI sources and displays. This HDMI matrix provides an excellent and convenient solution for connecting all of your HDMI equipment. You can select which source to view on each display using the remote control.

  • Page 5: System Requirements

    4. System Requirements HDMI source device(s) and HDMI display device(s). 5. Features • v1.3HDMI, HDCP 1.1 and DVI 1.0 compliant. • Supports digital video formats in Deep Color (12bit) and new lossless digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio). •...

  • Page 6: Operation Controls And Functions

    6. Operation Controls and Functions 6.1 Front Panel 1. Remote control sensor. 2. Power button & LED Indicator: Press the button to turn the unit on/off. The LED lights green when power is on and red when the power is off. 3.

  • Page 7: Rear Panel

    6.2 Rear Panel 1. IR IN: Place the IR receiver end of cable in front of your display and connect jack end to IR input, you can then use the supplied remote control to switch sources when the matrix is out of sight. 2.

  • Page 8: Remote Control

    7. Remote Control 1. Power: Press the button to turn the unit POWER On/Off. 2. Input Select for HDMI OUT ‘A’: Press 1 or OUTPUT 2 to select the required input source for HDMI OUT A. OUTPUT 3. Input Select for HDMI OUT ‘B’: Press 1 or 2 to select the required input source for OUTPUT HDMI OUT B.

  • Page 9: Rs-232 Protocol

    8. RS-232 Protocol OR-HD22S Remote Control Console Definition Definition → ← Baud Rate: 9600bps Data bit: 8bits Parity: None Stop bit: 1bit Flow Control: None Page 6...

  • Page 10: Command Sets

    8.1 Command Sets COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input 1 PORT 12 Output A select Input 2 PORT 13 (No Function) PORT 14 (No Function) PORT 21 Output B select Input 1 PORT 22 Output B select Input 2 Page 7...

  • Page 11: Connection Diagram

    9. Connection Diagram Page 8...

  • Page 12: Specifications

    10. Specifications Frequency bandwidth 2.25Gbps (single link) Input ports 2 x HDMI female ports, Output ports 2 x HDMI female ports EDID Standard, TV/Moving Port 1 PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, Dolby Digital+, Dolby HDMI Audio output TrueHD, DTS-HD HDMI Cable in 1080p 8bit (15M), 1080p 12bit (15M) HDMI Cable out 1080p 8bit (15M), 1080p 12bit (15M)
  • Page 13 Notes: Page 10...
