3 Installation

For the PS2 version while power is off, plug the male PS2 connector on the
iSCAN100 cable into the female socket on the Extronics iSOLATE100 or similar
intrinsically safe interface.

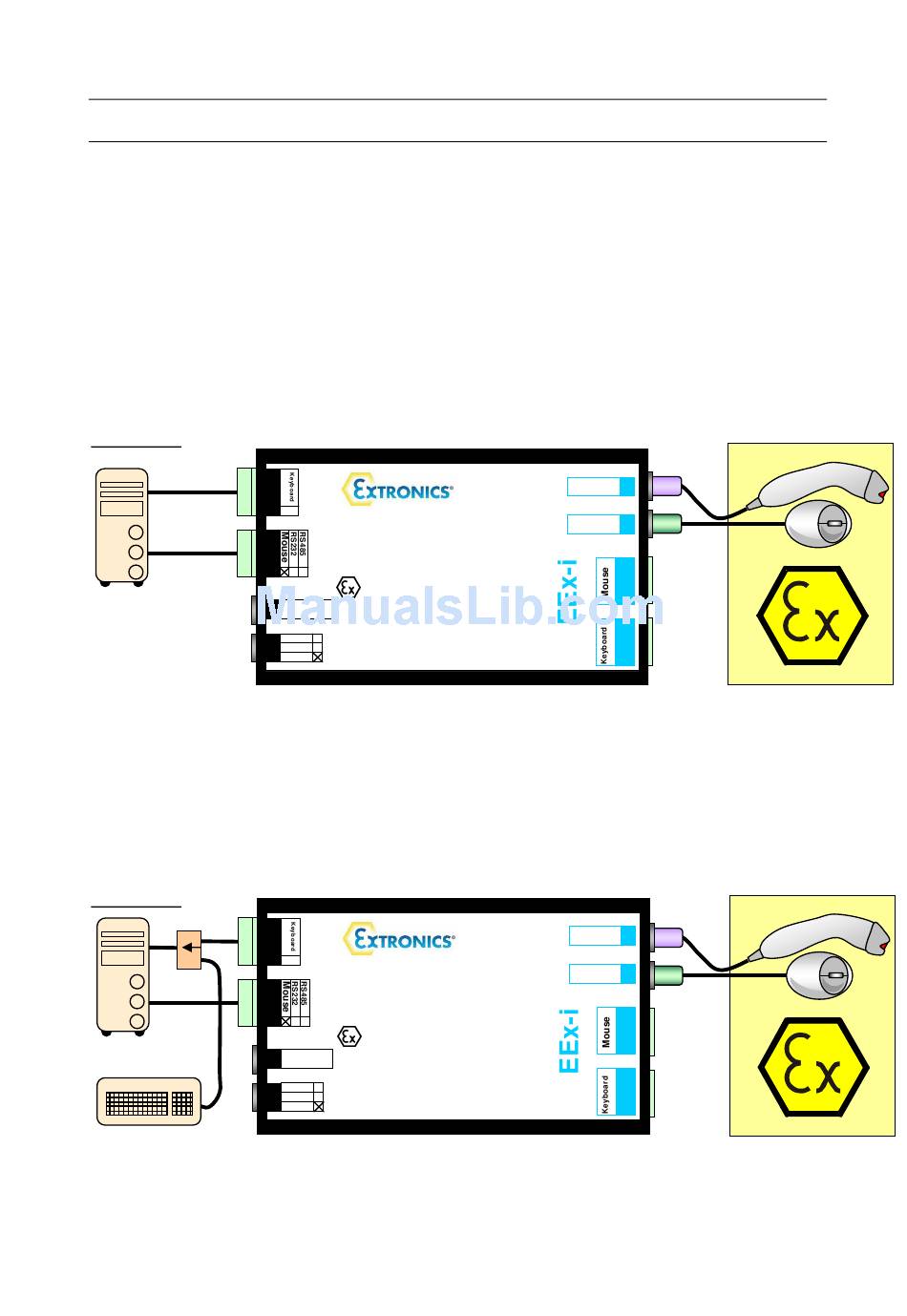

Examples and Connection details for the PS/2 can be found in Diagram 3.1 below
Examples iSCAN100 PS/2 scanner connections using the iSOLATE100 Ex01:
Example 1 Without Keyboard.
Diagram 3.1
The iSCAN100 PS/2 scanner can be connected on the hazardous side instead of
the keyboard. In this configuration the mouse may or may not be connected.
Since a scanner does not answer to the PC's request the PC might switch off the
keyboard line after booting. In this case please cancel the keyboard test in the
BIOS settings of your PC or wire a keyboard in parallel to the scanner.
Example 2 With Keyboard.
Diagram 3.2
Furthermore you may connect a keyboard with the safe side of iSOLATE100 using
its built-in keyboard wedge. Please refer to version Ex02.
