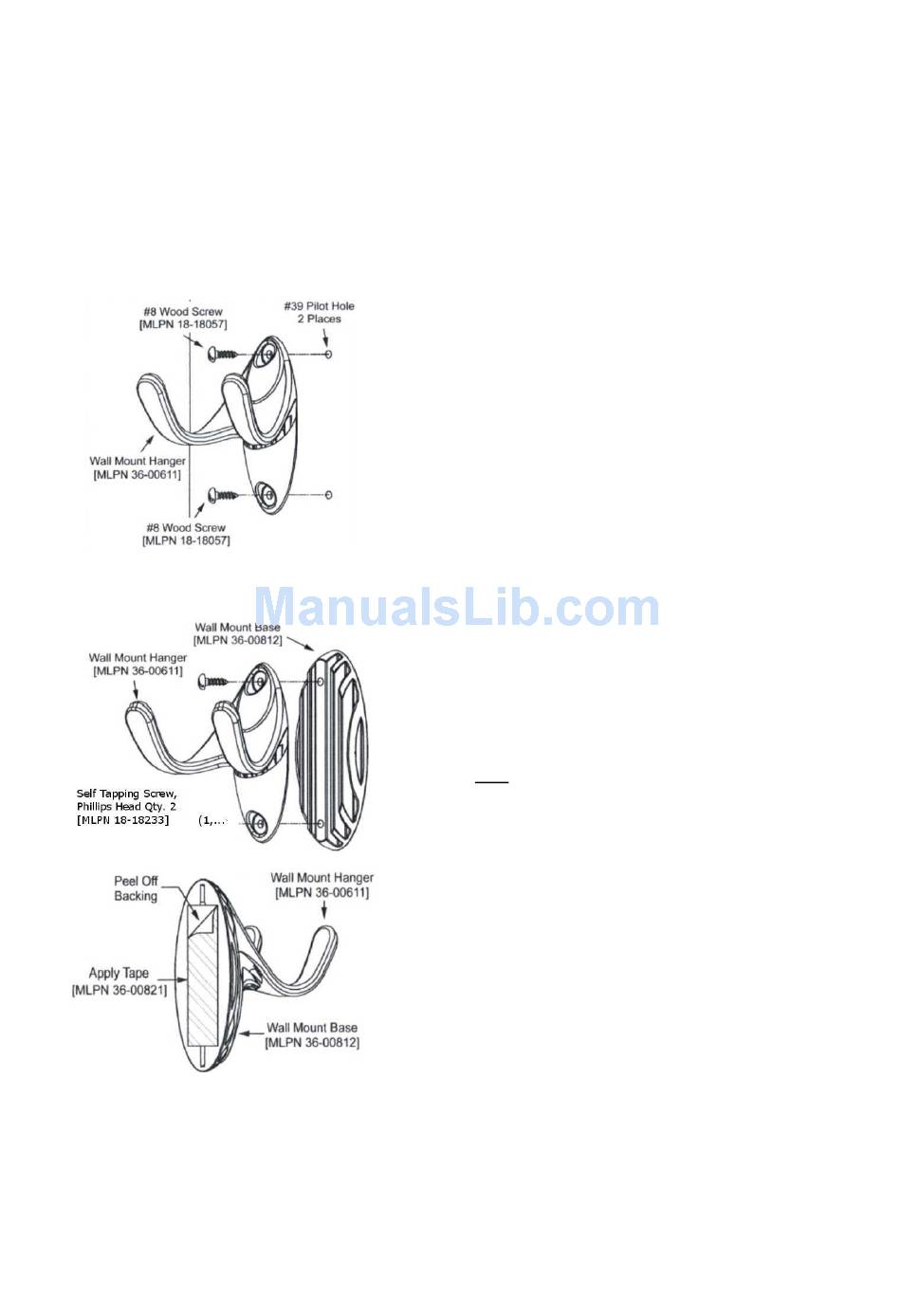

3.3.2 Optional Wall Mount Hanger Kit #46-46508

:
Contains
a) Wall mount hanger (MLPN 36-00611)
b) Wall mount base (MLPN 36-00812
c) Self tapping screw (MLPN 18-18233
d) Double sided tape
e) #8 wood screw
Wall Mount, Option 1:
Wall Mount, Option 2:
Step 1:
Drill two #39 pilot holes 3.00" apart.
Step 2:
Attach the Wall Mount Hanger to the wall with the
two #8 wood screws provided.
Step 1
Attach the Wall Mount Base to the Wall Mount
Hanger with the two 4.8 x 13 mm self-tapping
screws.
Step 2
Remove one side of the protective backing
from the double-sided adhesive tape
Step 3
Attach the tape to the back of the wall mount base.
Step 4
Remove the remaining backing from the tape and attach
to the wall.
Qty 1
Qty 1
Qty 2
Qty 1
Qty 2
