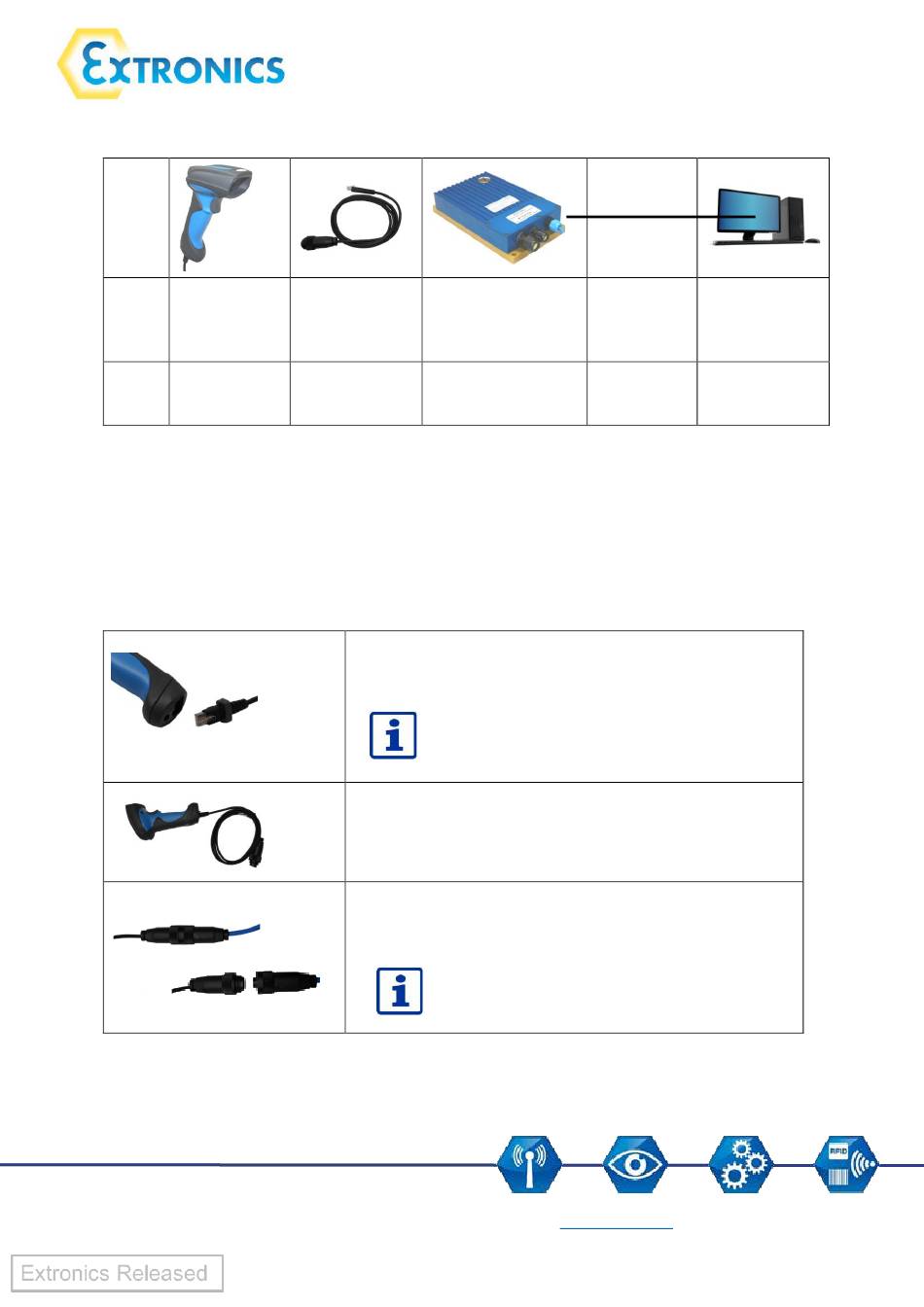

4.2 Cable range

iSCAN101
RS232 iSCAN101PDF
iSCAN1112D
iSCAN101
USB iSCAN101PDF
iSCAN1112D

5. Step by step guide to installation and operation

5.1 General connection of handheld scanner

Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
1.8 or 3.8m
or optional with
iSCANPS
4.5m or 6m
extension
1.8 or 3,8 m iSCANPS
Insert the RJ45 plug of the cable connecting the handheld
scanner with the power supply at the bottom of the scanner.
Make sure the plug has engaged fully.
Cable connected to the wired handheld scanner
Insert the plug of the connection cable into the power supply's
plug connector.
Ensure that the connection is fully secured with
the screw cap after the plug has been inserted.
Up to 20m Host
Up to 5m Host
