Rs232 Installation - extronics iSCAN100 Operating Manual

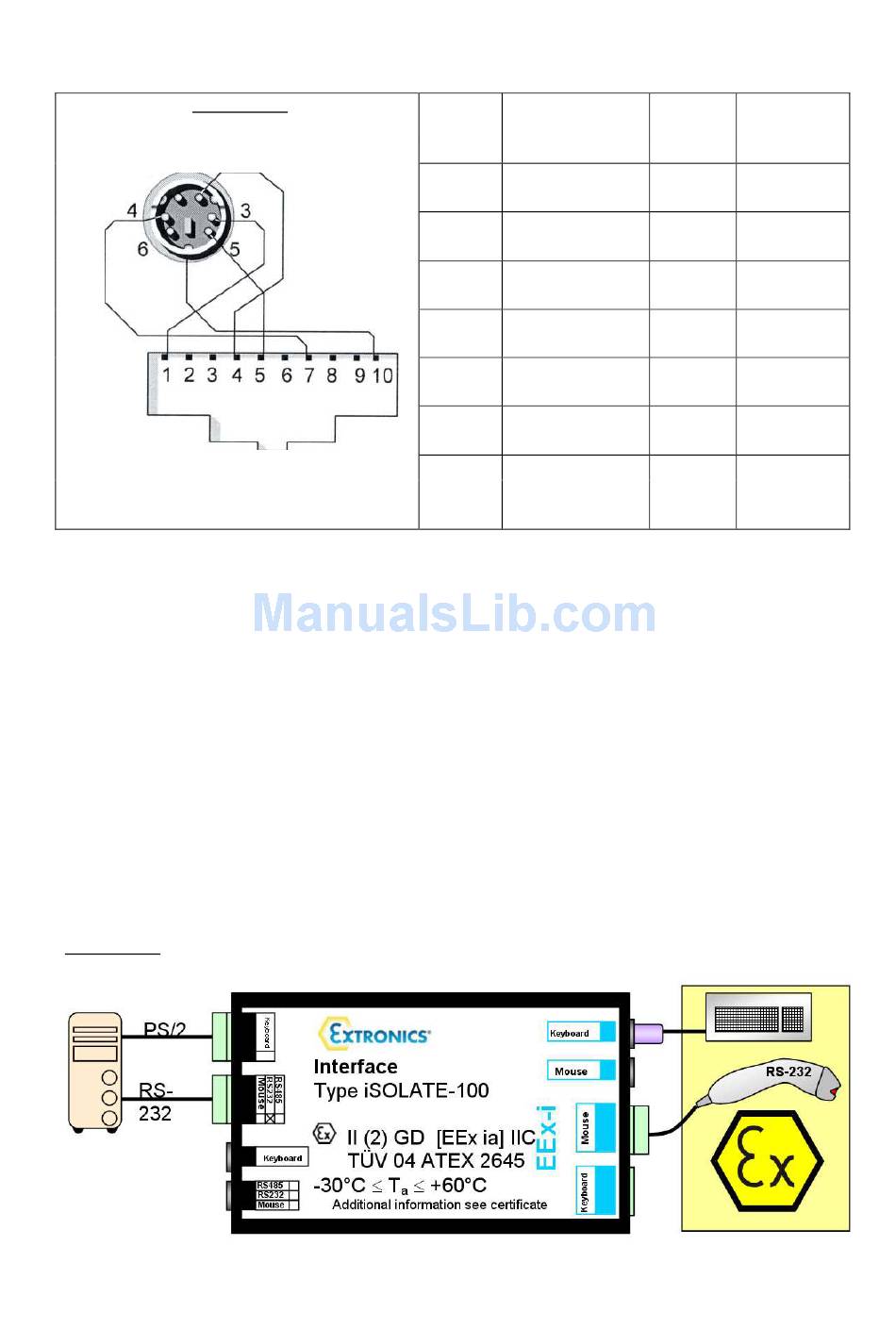

Diagram 3.2
PS2 Plug (male) of scanner cable
10-Pole RJ45 socket of the scanner
Note: If your iSCAN100 has a PS2 plug fitted when purchased cable colours may
vary from those indicated in this diagram
For the RS232 version while power is off wire the cable to the terminals on the
iSOLATE100 or similar intrinsically safe interface.
Examples and Connection details for the PS/2 can be found in Diagram 3.4 below
Version Ex03
Diagram 3.4
8
iSCAN100 PS2 Connection Details
PS2
Nodes
Shield Not

3.2 RS232 Installation

Description
1 Data
2 Not
Connected
3 Ground
4 Supply
5 Clock
6 Not
connected
connected
Colour RJ45
Nodes
Yellow 2
N/A N/A
White 3
Brown 4
Green 1
N/A N/A
N/A N/A
