Control panel
Display, indicators and
keys
20
1
ONLINE
NO PAPER

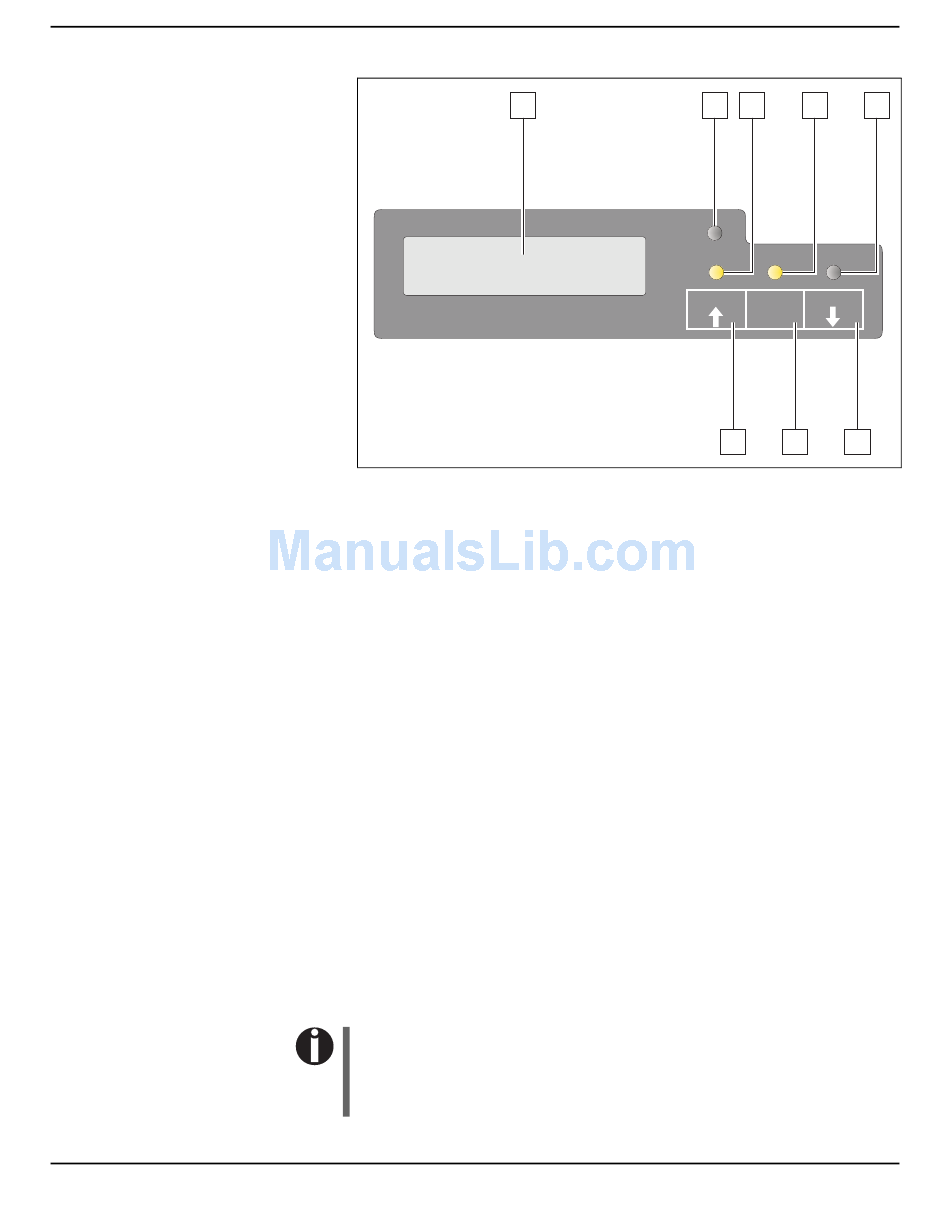

LCD display: Displays the internal printer status, operating
1
instructions and error messages.
Paper LED: Indicates whether paper is loaded; on = paper is
2
inserted, off = no paper inserted; blinking = indicates that data has
been sent to the printer.
USER1 LED: Blinks if the printer is receiving data via the first
3
interface, lights if a job is printed (see below).
Ready LED: Indicates Offline or Online status; on = online,
4
off = offline; blinking = indicates that an error has occured, the
cause of the error is indicated in the display.
USER2 LED: Blinks if the printer is receiving data via the second
5
interface, lights if a job is printed (see below).
USER2 key: Activated by application only; the functionality of the
6
key depends on the emulation and the application used (see also
USER2 LED).
STOP/EJECT key: Sets the printer to Online/Offline mode (see
7
also Ready LED); ejects inserted paper (see also Paper LED).
USER1 key: Activated by application only; the functionality of the
8
key depends on the emulation and the application used (see also
USER1 LED).
Please be aware that some emulations and applications may use
the LEDs and keys in an entirely different way defined by the
emulation and/or host software and outside the definitions con-
tained in this document.
