ELECTRICAL INSTALLATION AND SAFETY
DANGER: The output voltage and current of audio power amplifiers are a shock hazard. To minimize
the risk of electric shock from loudspeaker connecting cables, confirm that the power amplifiers are
turned "off" before connecting loudspeaker cable to the loudspeaker or amplifier. Always follow local
electrical codes and proper electrical safety procedures.
Connections*
With the exception of the ithe M12 Stage Monitor, all iBOX Series loudspeakers (including the iLF218)
come with two methods of connecting the amplifier(s) to the loudspeaker. One is a pair of industry standard NL-
4 type locking connectors wired in parallel, and the other is a barrier strip, also wired in parallel with the NL-4
type connectors. The barrier strip is equipped with a plastic safety cover to avoid electric shock hazard. The
following figures show the input panel used on full-range and subwoofer iBOX loudspeakers.

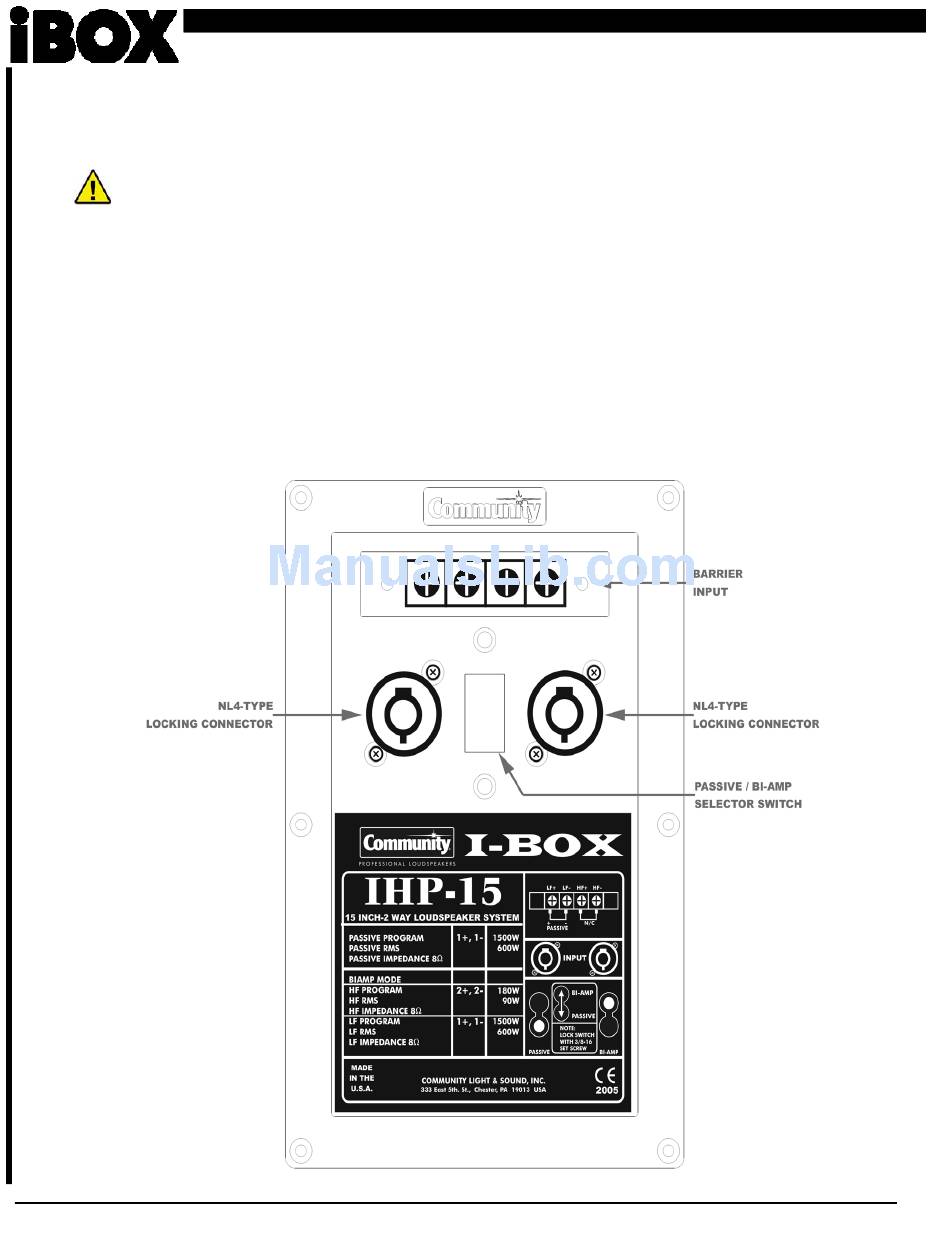

Figure 9: iBOX Full-Range Input Panel*
Community iBOX Installation/Operation Manual — Page 24
