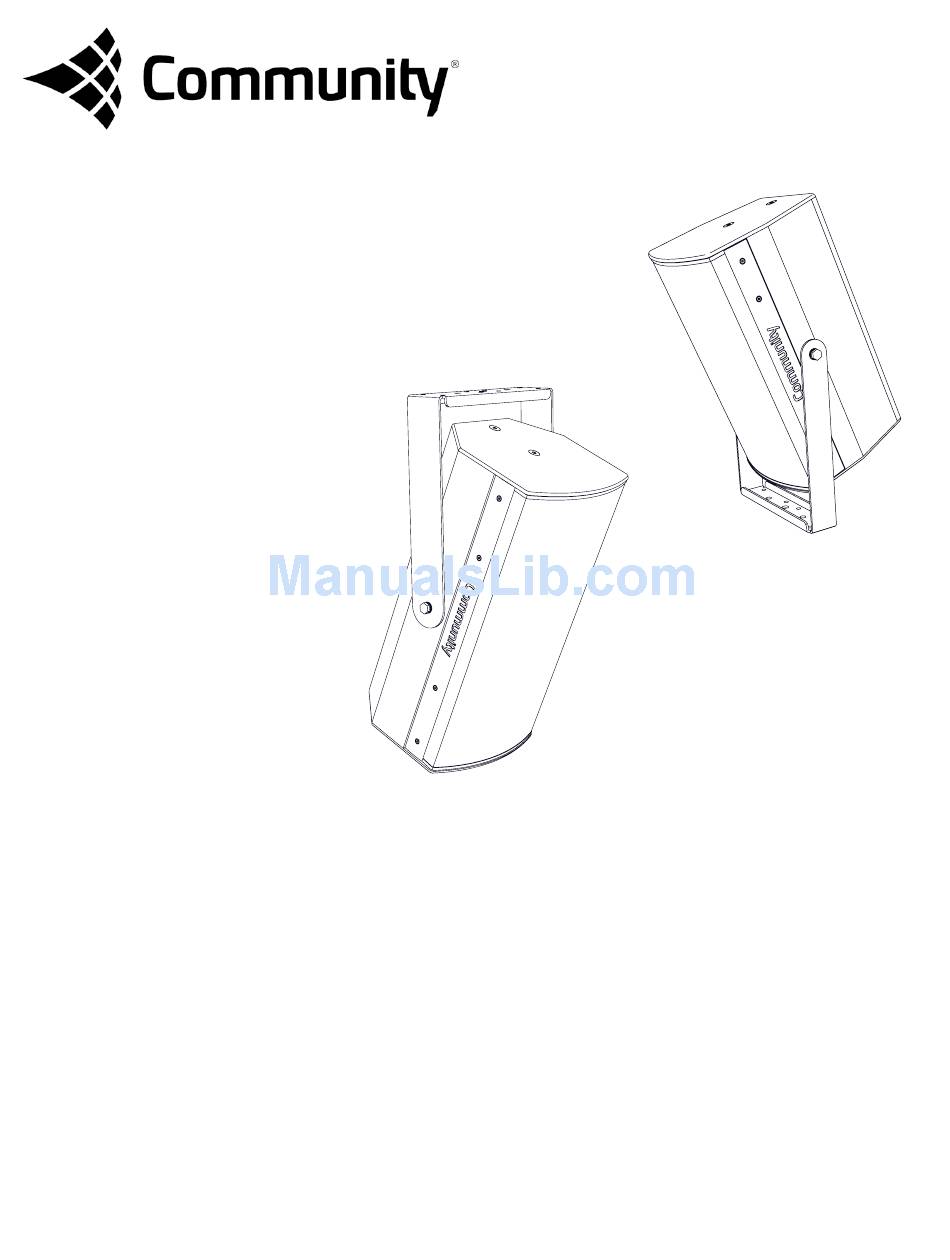

I SERIES
BalancePoint™ Flyware
For Compact loudspeakers
IVY1082
IVY2082
Community Professional Loudspeakers
333 East Fifth Street, Chester, PA 19013-4511 USA
Phone (610) 876-3400 • Fax (610) 874-0190
communitypro.com • info@communitypro.com
Vertical Yokes for IC6-1082, IC6-2082
CAUTION: Installation of loudspeakers should only be
performed by trained and qualified personnel. It is strongly
recommended that a licensed and certified professional
structural engineer approve the mounting design.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVY1082 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Community IVY1082

Summary of Contents for Community IVY1082

  • Page 1 For Compact loudspeakers IVY1082 IVY2082 Vertical Yokes for IC6-1082, IC6-2082 Community Professional Loudspeakers 333 East Fifth Street, Chester, PA 19013-4511 USA CAUTION: Installation of loudspeakers should only be performed by trained and qualified personnel. It is strongly Phone (610) 876-3400 • Fax (610) 874-0190 recommended that a licensed and certified professional communitypro.com •...

  • Page 2: Important Safety Instructions

    Contact your local dealer, distributor, or call It is always a good idea to retain the carton and Community directly for assistance. These terms are defined as: packing materials, if possible, in the event that...
  • Page 3 2. The yoke can be attached to the building structure and then the loudspeaker can be installed later. Parts: VY: Vertical Yoke (IVY1082 shown) HW-R Hardware: Code...

  • Page 4: Technical Drawings

    TECHNICAL DRAWINGS IVY1082 - VERTICAL YOKE FOR IC6-1082 MODELS 4.63" [117.5] Ø.43" [Ø11.0] Ø.33" [Ø8.5] (TYP 2 PLACES) 2.37" [60.2] (TYP 4 PLACES) .94" [24.0] .63" [16.0] 2.63" [66.7] Ø.51" [Ø13.0] Ø.33" [Ø8.5] (TYP 4 PLACES) DIMENSIONS SYMMETRICAL ABOUT CL .75"...

  • Page 5: Third Party Mounting Bracket Reference

    I SERIES Compact enclosures and their accessories (U-Brackets, Vertical Yokes) are compatible with several universal mounting options from other manufacturers. Below is a quick reference table to choose from. Model IC6-1062 IC6-1082 IC6-2082 IUB1062 IUB1082 IUB2082 IVY1082 IVY2082 lbs (kg) MM3RDX-18 60 (27.2) Adaptive Technologies MM-3RDX-120 120 (54.4) Ceiling...

  • Page 6: Helpful Installation Tips

    Indoor [lbs (kg)] WR [lbs (kg)] WT [lbs (kg)] Low Impedance Transformer Weather-Resistant WR Transformer IC6-1082 25.0 (11.3) 29.0(13.2) 19.2(8.7) 23.2 (10.5) IC6-2082 31.0 (14.1) 35.0 (15.9) 23.9 (10.8) 27.9 (12.7) Community Professional Loudspeakers communitypro.com IVY1082-2082 Manual 01JUL2016 I SERIES...
