MODELS
MEDIUM FORM-FACTOR: iHP1500 Series
The iHP1500 series loudspeakers are premium quality, large format, full-range loudspeaker systems
offering six rotatable HF horn options from models iHP1544 (40x40), iHP1564 (60x40), iHP1566 (60x60),
iHP1594 (90x40), iHP1596 (90x60) and iHP1599 (90x90). These are combined with a high-power 15-inch mid/
bass LF driver in a slightly larger enclosure than the 1200 Series, which extends the LF response to 45 Hz. The
driver complement consists of a 15" (380mm) high power low frequency driver and a 1.4" (36mm) exit /
2.87" (72.2 mm) edgewound voice coil compression driver. The large format rotatable horn flares deliver well
controlled dispersion, and utilize high order crossovers to optimize system performance. The well controlled off-
axis response enhances system performance when combined with other iBOX Mid/Hi and subwoofer elements.
As with the 1200 Series, two same-dimension subwoofers are available to provide greater LF power and
extension for larger systems. The i115S (single 15-inch Cool-Coil™ LF Driver) and i215S (dual 15-inch Cool-
Coil™ LF Drivers) subwoofers share the same cabinet profile and have been designed for integration with the
iHP1500 Series full-range cabinets for aesthetically pleasing clusters and arrays.
Model
iHP1544
iHP1564
iHP1566
iHP1594
iHP1596
iHP1599
i115S
i215S

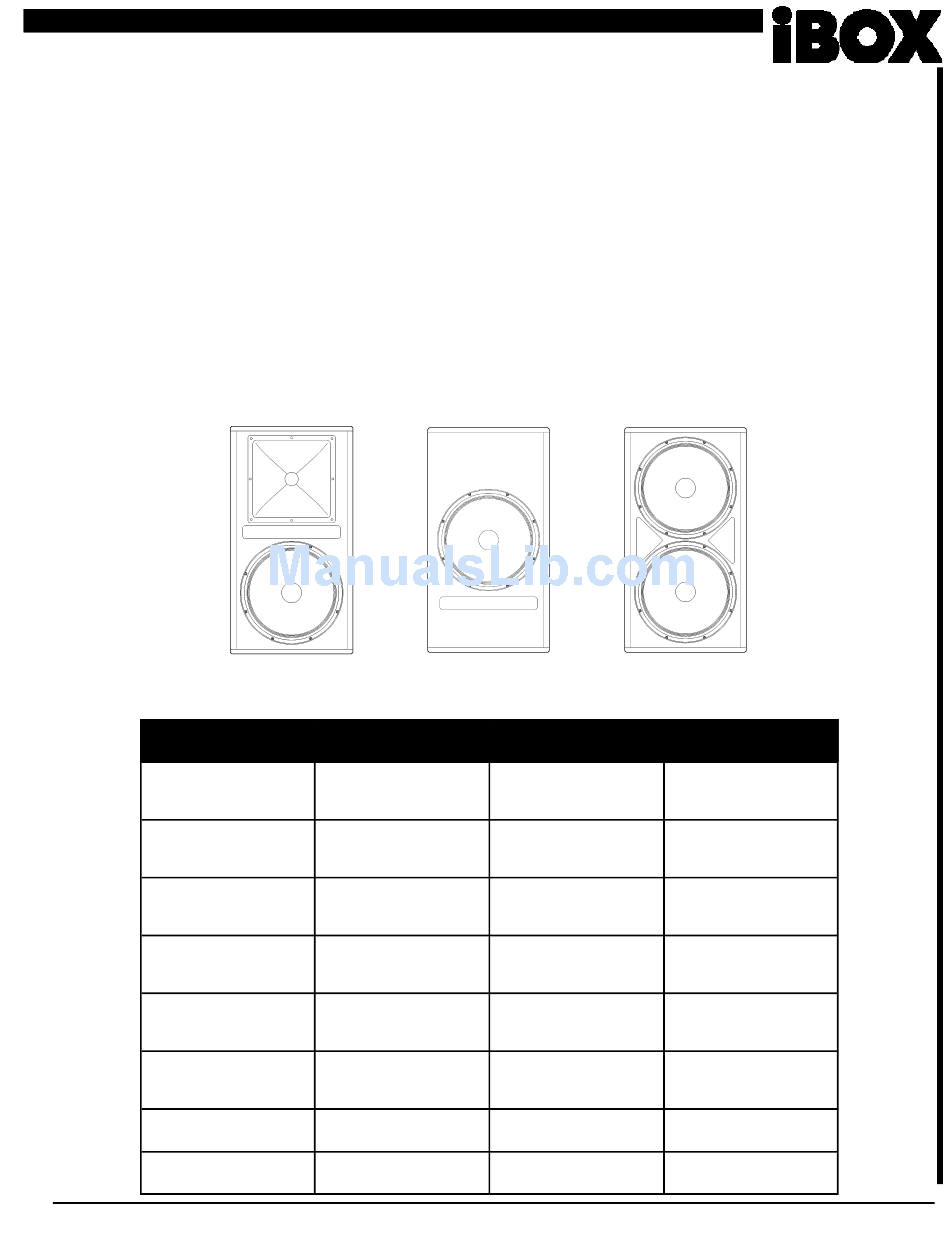

Figure 4: iHP1500 Series
Table 4: MEDIUM FORM-FACTOR: iHP1500 Series
Type
Two-Way, Full-Range
Two-Way, Full-Range
Two-Way, Full-Range
Two-Way, Full-Range
Two-Way, Full-Range
Two-Way, Full-Range
Subwoofer
Subwoofer
Community iBOX Installation/Operation Manual — Page 15
Angle of Coverage
40° x 40°
LF 1 x 15"
HF 1 x 1.4"
60° x 40°
LF 1 x 15"
field rotatable
HF 1 x 1.4"
60° x 60°
LF 1 x 15"
HF 1 x 1.4"
90° x 40°
LF 1 x 15"
field rotatable
HF 1 x 1.4"
90° x 60°
LF 1 x 15"
field rotatable
HF 1 x 1.4"
90° x 90°
LF 1 x 15"
HF 1 x 1.4"
180° x 360°
1 x 15"
180° x 360°
2 x 15"
Transducers
