LARGE FORM-FACTOR: iHP3500 Series
The iHP3500 Series are high performance three-way systems, based on
which is slightly larger than the 1500 Series. The iHP3564 (60x40) and iHP3594 (90x40) are large format, full-
range systems. The driver complement in both consists of a 15-inch (380mm) high power low frequency driver,
an 8-inch (205mm) horn loaded cone mid-range driver and a 1.4-inch (36mm) exit / 2.87" (72.2 mm) edgewound
voice coil large format HF compression driver. High order crossovers optimize system performance and the
large format horn flares deliver well controlled dispersion. Vocal quality and musical impact are enhanced by the
carefully engineered horn loaded cone midrange. The well controlled off-axis response enhances system
performance when combined with other iBOX full-range and subwoofer elements in clusters and arrays. The
horns in the iHP3564 and iHP3594 are not rotatable. However, these models can be special-ordered in
horizontal versions with rectangular cabinets at no extra cost.
The i118S and i215LVS are high power subwoofers, designed to complement the iHP3500 Series full-
range cabinets with matching exterior dimensions to allow combinations in arrays and clusters that are
acoustically and aesthetically designed to work together. A small footprint also makes these subwoofers an ideal
choice for unobtrusive ground-stacking where space is limited. The i118S uses a single 18-inch (460mm) high
power driver while the i215LVS consists of dual 15-inch (380mm) high power low frequency drivers. The 15 and
18-inch drivers utilize Community's patented Cool-Coil™ technology to minimize power-compression and ensure
long-term reliability. They are used in front loaded, ported, critically-tuned configurations.
Table 3: LARGE FORM-FACTOR: iHP3500 Series
Model
iHP3564
iHP3594
i118S
i215LVS

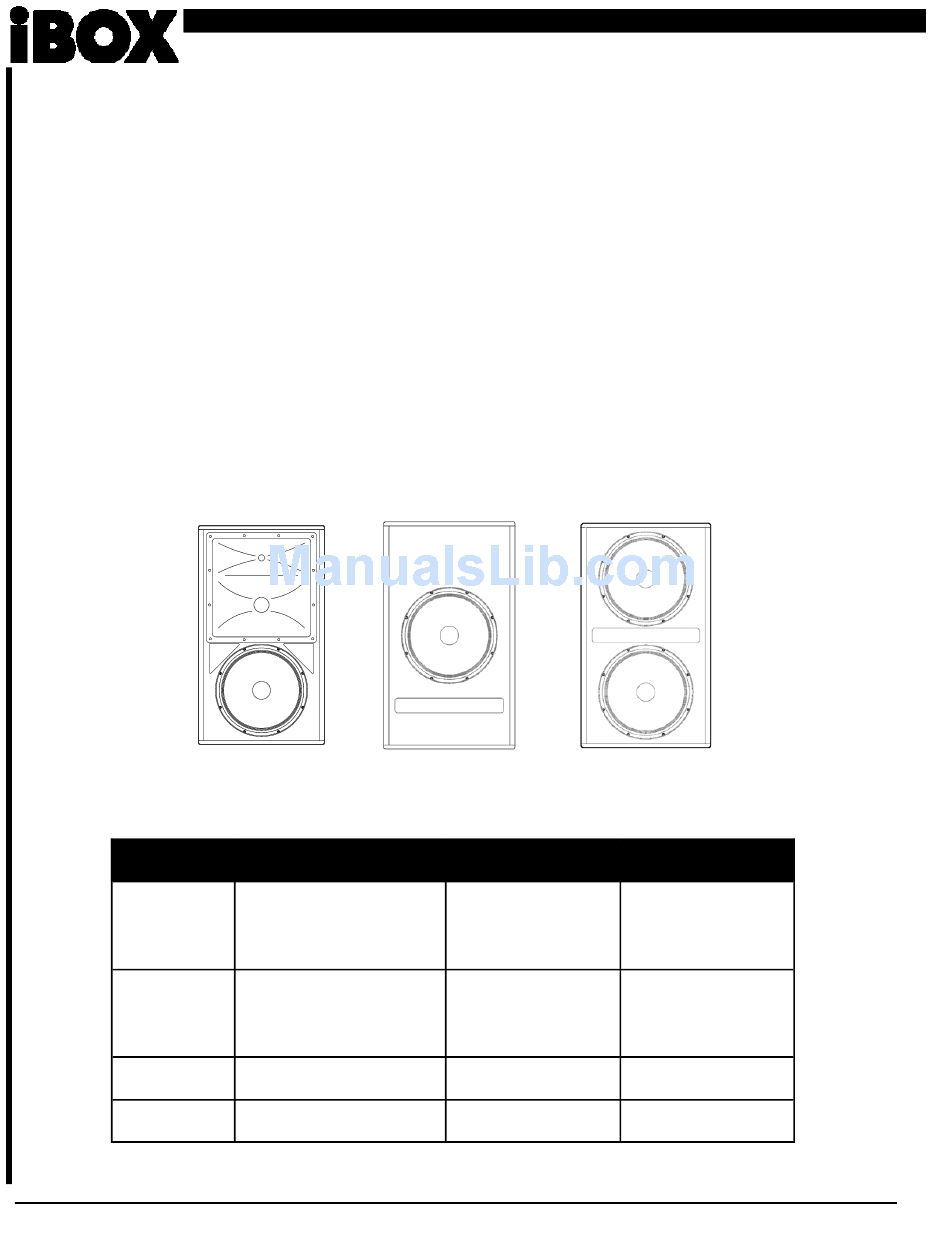

Figure 3: iHP3500 Series
Type
Three-Way, Full-Range
Three-Way, Full-Range
Subwoofer
Subwoofer
Community iBOX Installation/Operation Manual — Page 14
a third enclosure dimension
Angle of Coverage
60° x 40° LF 1 x 15"
or special-order MF 1 x 8"
horizontal version
HF 1 x 1.4"
90° x 40° LF 1 x 15"
or special-order MF 1 x 8"
horizontal version
HF 1 x 1.4"
180° x 360° 1 x 18"
180° x 360° 2 x 15"
MODELS
Transducers
