Input Settings Window Descriptions

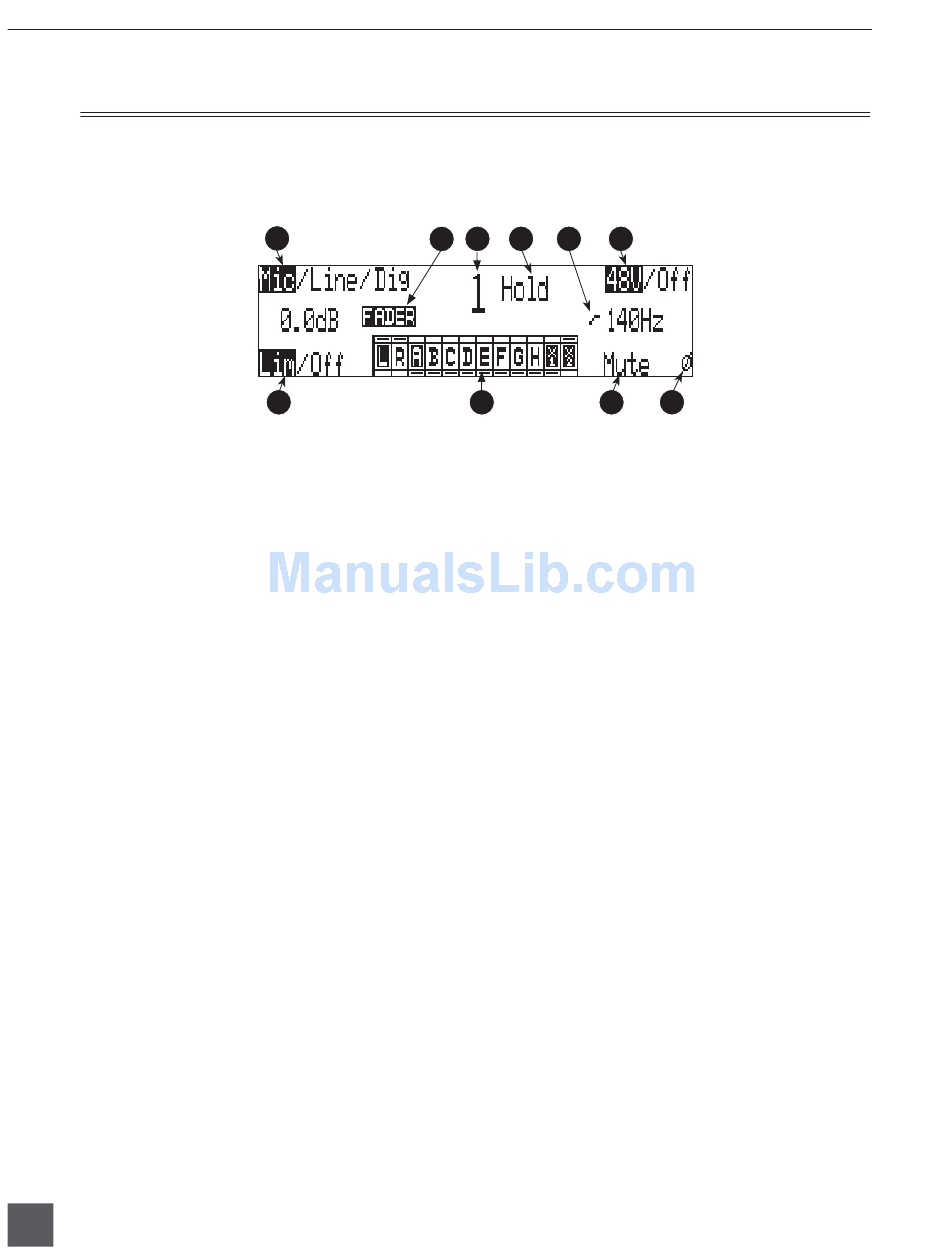

To access the Input Settings Window press the Input Selector Switch into the position of the desired
input. Pushing the Input Selector Switch to the left will select the odd numbered inputs and push-
ing it to the right will select the even numbered inputs. Press the Input Selector Switch for the select
input again to return to the previously displayed screen.
Input Type
1)
The highlighted selection indicates cur-
rent Input Type. Input Type is select-
able from Mic, Line, and Digital Inputs
for each channel respectively. Toggle
through Input Type selections by press-
ing the MENU key.
Input Gain Display
2)
The Input gain is displayed in dB for the
selected input. Information displayed
toggles between TRIM and FADER
levels, if CL-8 Controller is attached or
INPUT: FRONT PANEL CONTROLS is set
to Fader Controls. When set to Faders,
use the Multifunction Rotary Switch to
attenuate Trim levels. Pressing in on the
Multifunction Rotary Switch will toggle
control between Trim level and High-
Pass Filter control.
Input Selected
3)
Displays the Input that has been se-
lected.
Headphone Monitor Hold Indication
4)
Press and hold the Input Selector Switch
for fi ve or more seconds to latch Input
PFL. To exit the PFL monitoring select
another input with the Input Selector
Switch or rotate the Multi-Function
Rotary Switch. This mode only applies
when the INPUT: PFL FUNCTION is set
to enabled.
14
v. 1.65 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
1
2
7
3 4 5 6
8 9
High-Pass Filter
5)
Indicates the state of the High-Pass
Filter and the cut off frequency selected.
Control the High-Pass Filter by using
the Multi-Function Rotary Switch.
Phantom Power
6)
The highlighted selection shows the cur-
rent state of phantom power (48 volts)
for the selected input. Enable or disable
Phantom Power by using the Tone key.
Input Limiter
7)
The highlighted selection shows the cur-
rent state of the Input Limiter for the se-
lected Input. Enable or disable the Input
Limiter using the HDD or Rewind key.
Input to Track Routing
8)
The highlighted selection(s) indicates
the track(s) that the selected input is
currently routed to. To enter and exit the
Input to Track Routing press the Play
key.
Input Mute
9)
When highlighted the select Input is
Muted and removed from all tracks.
Input Mute is toggled on and off using
the Fast Forward key.
Input Polarity
10)
When highlighted the current state of
the Input's Polarity is inversed. Control
polarity using the LCD Backlight key.
10
