Input Settings Window Descriptions

To access the Input Settings Window press the Input Selector Switch into the position of the desired
input. Pushing the Input Selector Switch to the left will select the odd numbered inputs and push-
ing it to the right will select the even numbered inputs. Press the Input Selector Switch for the select
input again to return to the previously displayed screen.

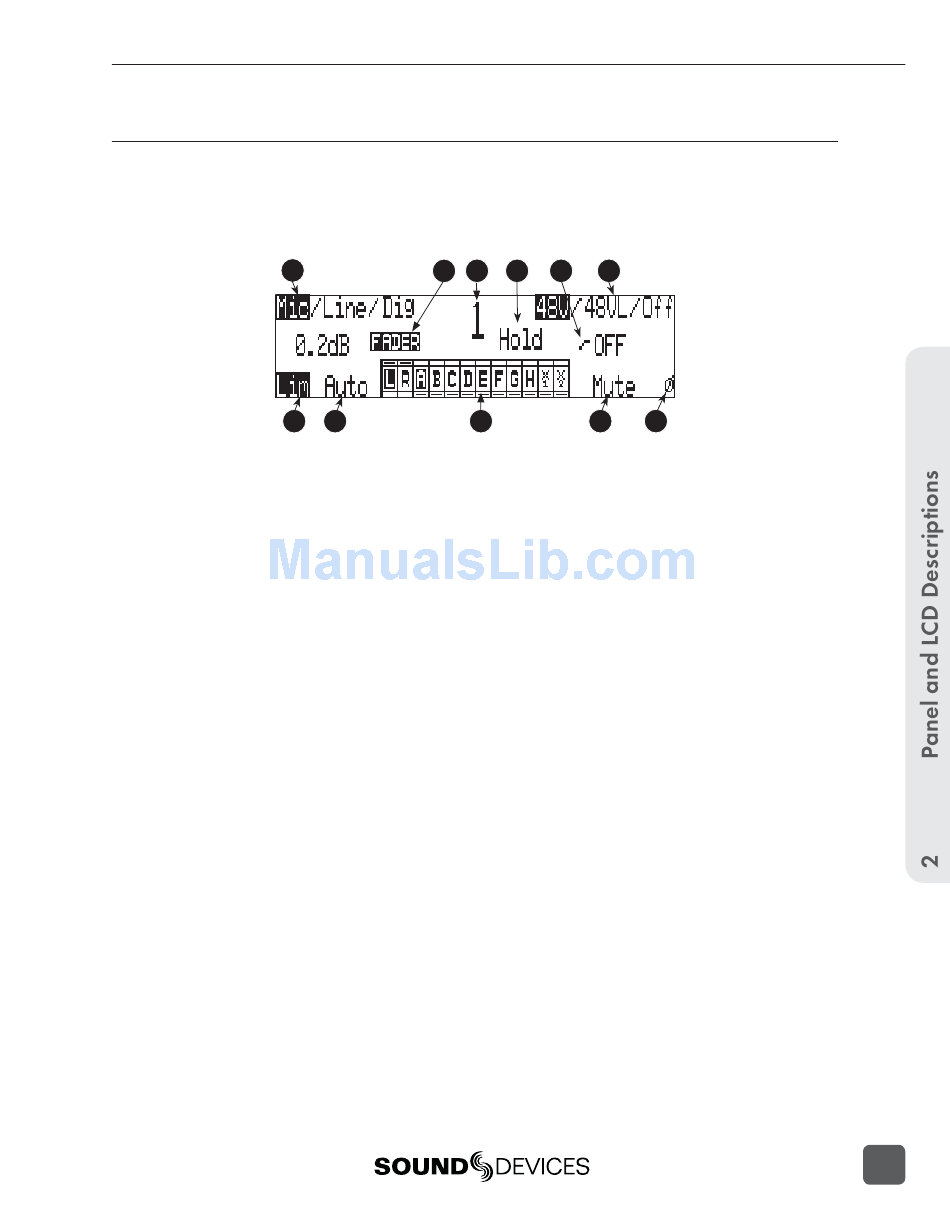

1
7
Input Type
1)
The highlighted selection indicates cur-
rent Input Type. Input Type is selectable
from Mic, Line, and Digital Inputs for
each channel respectively. Toggle through
Input Type selections by pressing the
MENU key.
Input Gain Display
2)
The Input gain is displayed in dB for
the selected input. Information dis-
played toggles between TRIM and
FADER levels when faders are avail-
able. When the Setup Menu option
INPUT: FRONT PANEL CONTROLS is set
to Fader Controls, use the Rotary Switch
to attenuate Trim levels. Pressing in on
the Rotary Switch will toggle control
between Trim level and High-Pass Filter
control.
Input Selected
3)
Displays the Input that has been selected.
Headphone Monitor Hold Indication
4)
Press and hold the Input Selector
Switch for fi ve or more seconds to latch
Input PFL. To exit the PFL monitor-
ing select another input with the Input
Selector Switch or rotate the Rotary
Switch. This mode only applies when
the INPUT: PFL FUNCTION is set to
enabled.
788T/788T-SSD User Guide and Technical Information
2 3
8
11
4 5 6
9
10
High-Pass Filter
5)
Indicates the state of the High-Pass
Filter and the cut off frequency selected.
Control the High-Pass Filter by using the
Rotary Switch.
Phantom Power
6)
The highlighted selection shows the cur-
rent state of phantom power (48V: mic
only, 48VL: mic and line, Off: no phantom
power) for the selected input. Switch
between Phantom Power modes by using
the Tone key.
Input Limiter
7)
The highlighted selection shows the state
of the Input Limiter for the selected Input.
Enable or disable the Input Limiter using
the HDD key.
Input to Track Routing
8)
The highlighted selection(s) indicate the
track(s) the selected input is currently
routed to. To enter and exit the Input to
Track Routing press the Play key.
Input Mute
9)
When highlighted the selected Input is
Muted and removed from all tracks. Input
Mute is toggled on and off using the Fast
Forward key.
Input Polarity
10)
When highlighted the Input Polarity is
inverted. Control polarity using the LCD
Backlight key.
