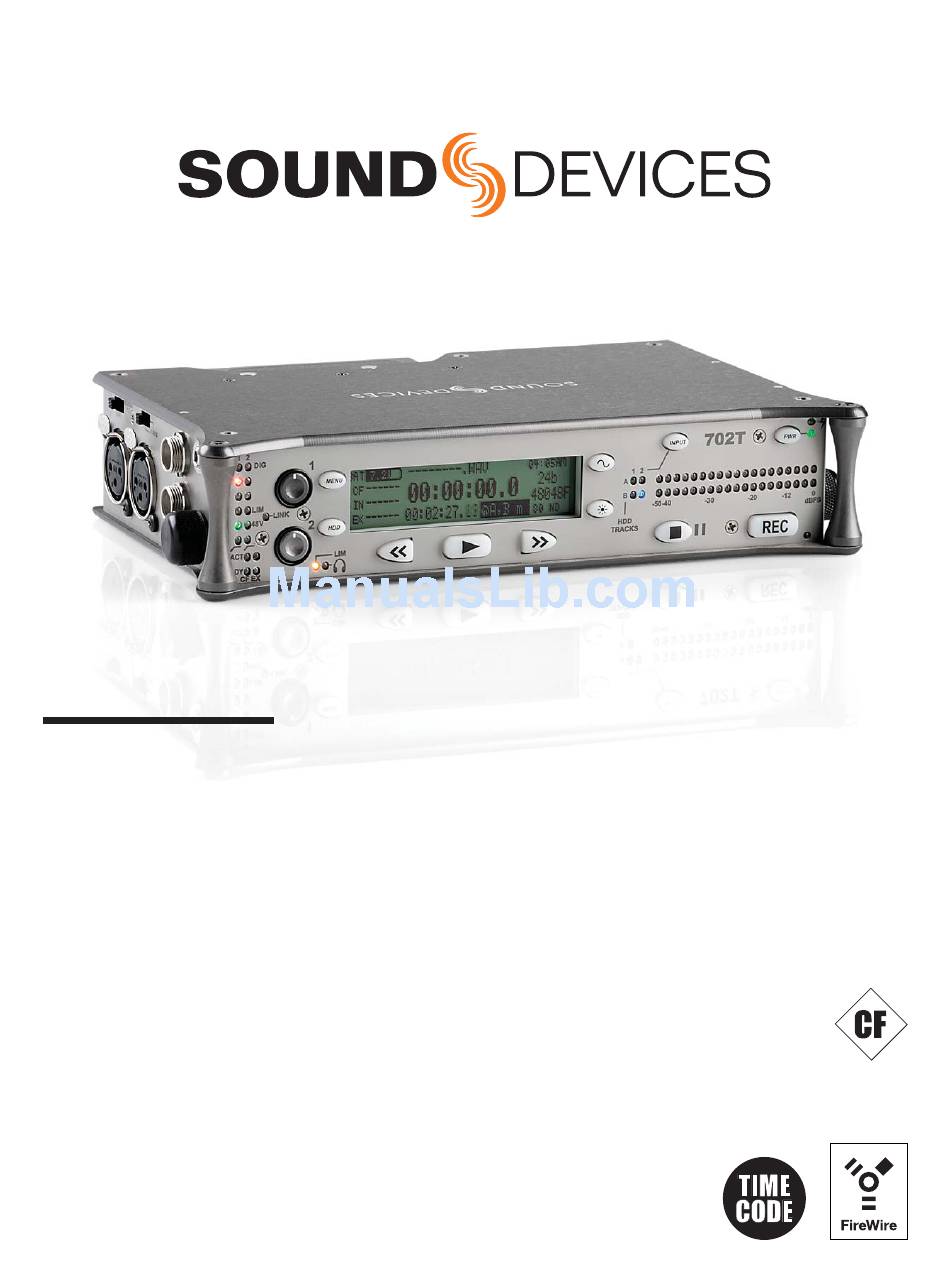

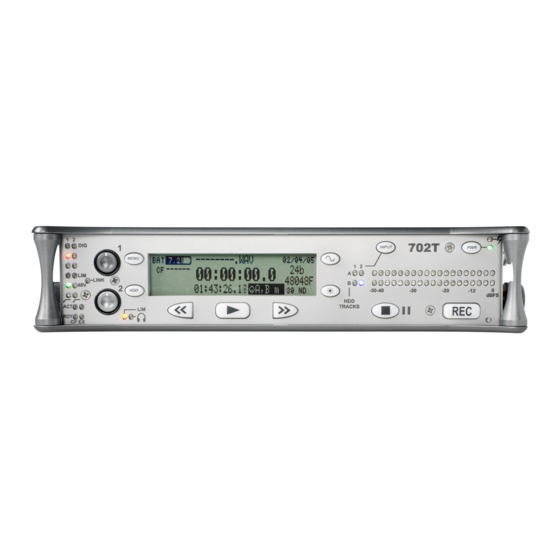

High Resolution Digital Audio Recorder with Time Code
User Guide and Technical Information
fi rmware rev. 2.66
Sound Devices, LLC
300 Wengel Drive • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
