Time Code Display
12)
In Stop and Record modes, displays
the time code generated or received by
the 788T. In Playback mode, displays
the the time code information of the fi le
currently selected for playback (if avail-
able). If non-time code fi les are playing,
the display shows dashes. The time code
display can be exchanged with the A-
time display in the Setup Menu.
Headphone Source Display
13)
Indicates the source for headphone out-
put. Sources and selection order are user
selectable in the Setup Menu.

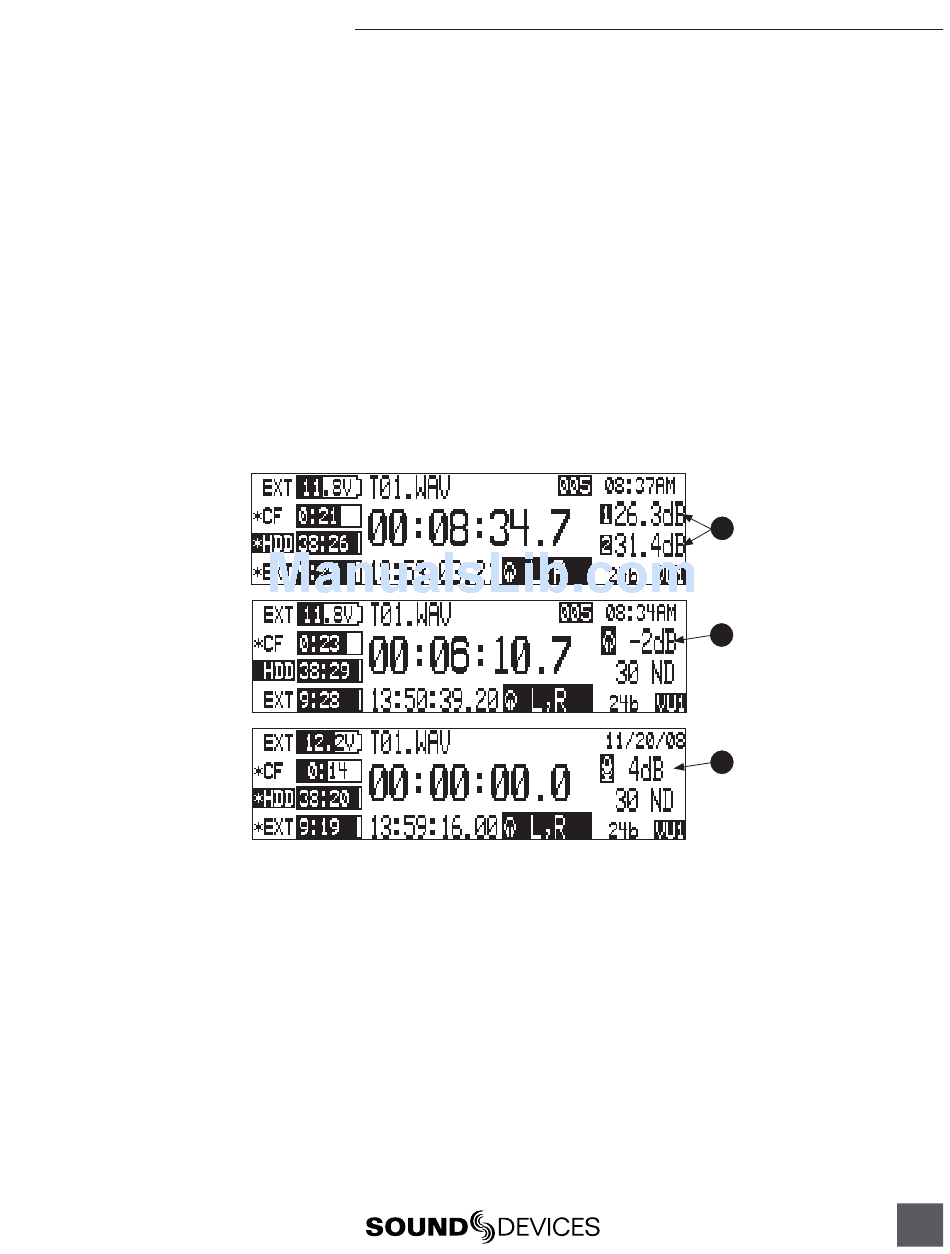

Input Level
16)
When input gain is adjusted, gain level
is indicated in dB for the input being
adjusted and its neighboring input. The
relationship of inputs is confi gured in
the following manner and cannot be
altered 1,2 / 3,4 / 5,6 / 7,8. Neighboring
inputs are not linked or grouped unless
specifi cally linked in the Setup Menu.
Mic input gain range is from 0 dB to 76
dB, Line input range is from -25 to 50 dB
and Digital input range is from -25 to
50 dB.
788T User Guide and Technical Information
Time Code Frame Rate
14)
Displays the set time code frame rate. If
a fi le has time code information embed-
ded, the playback frame rate is indi-
cated. If external time code is connected
and the external rate differs from the
rate set internally, the display will fl ash.
Bit Depth Indicator
15)
Shows the set record bit depth. In play-
back, shows the fi le bit depth.
Meter Toggle
16)
Press the soft VU (LCD Backlight) key
to toggle between VU1 and VU2 views.
VU1 displays Tracks C, D, E, F on the
second column of Front Panel Level
Meter LEDs, and VU2 displays Tracks G,
H, X1, X2.
17
18
Headphone Gain Level
17)
When the headphone gain is adjusted,
this will appear and indicate the gain
level in dB.
Slate Mic Gain Level (CL-8 only)
18)
Slate Mic gain level is adjusted from -46
to 6 dB in 1 dB increments. To attenuate
the gain press and hold the CL-8 SLATE
button and turn the Multi Function
Rotary Switch.
