ENGLISH

4.2 Rear Side

5
3
4
1. Grounded AC Input power socket with input fuse: IEC C14 type; to connect the UPS to the AC utility line.
Fuse electrical specification: max current 6A (EXA 1.1–1.5 Rack Mount), max current 8A (EXA 2.2 Rack Mount)
or max current 10A (EXA 2.6-3.2 Rack Mount), voltage 250 V.
2. Grounded UPS Output receptacles: IEC C13 type, black colour, to supply critical loads.
3. Telephone protection (RJ11 IN/OUT connectors): to protect and filter a phone line (TNV-3 type
connections).
4. Computer Interface (DB9 female connector): it is the communication RS-232 port.
5. Computer Interface (USB connector): it is the communication USB port.
6. ON/OFF button: to active the AC utility line.
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (black
colour, #2) continue supplying the correct power to all connected equipment. Please
connect all the non-critical devices to the UPS Output receptacles.
User's manual
6
1
EXA 1.1-1.5-2.2
3
5
4
EXA 2.6-3.2

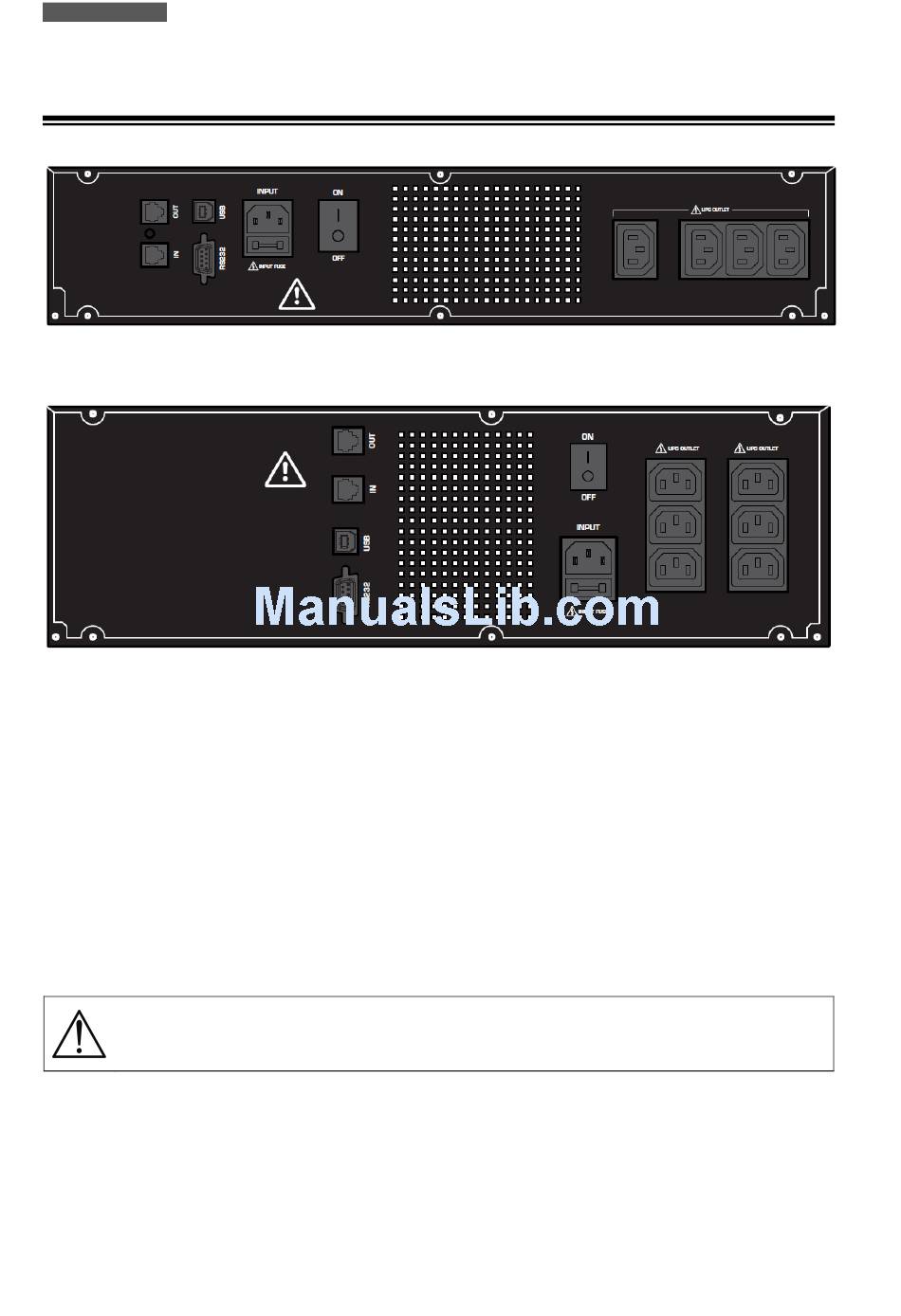

Figure 3 – Rear Side
6
1
6 UPS EXA 1.1-1.5-2.2-2.6-3.2 Rack Mount
2
2 2
