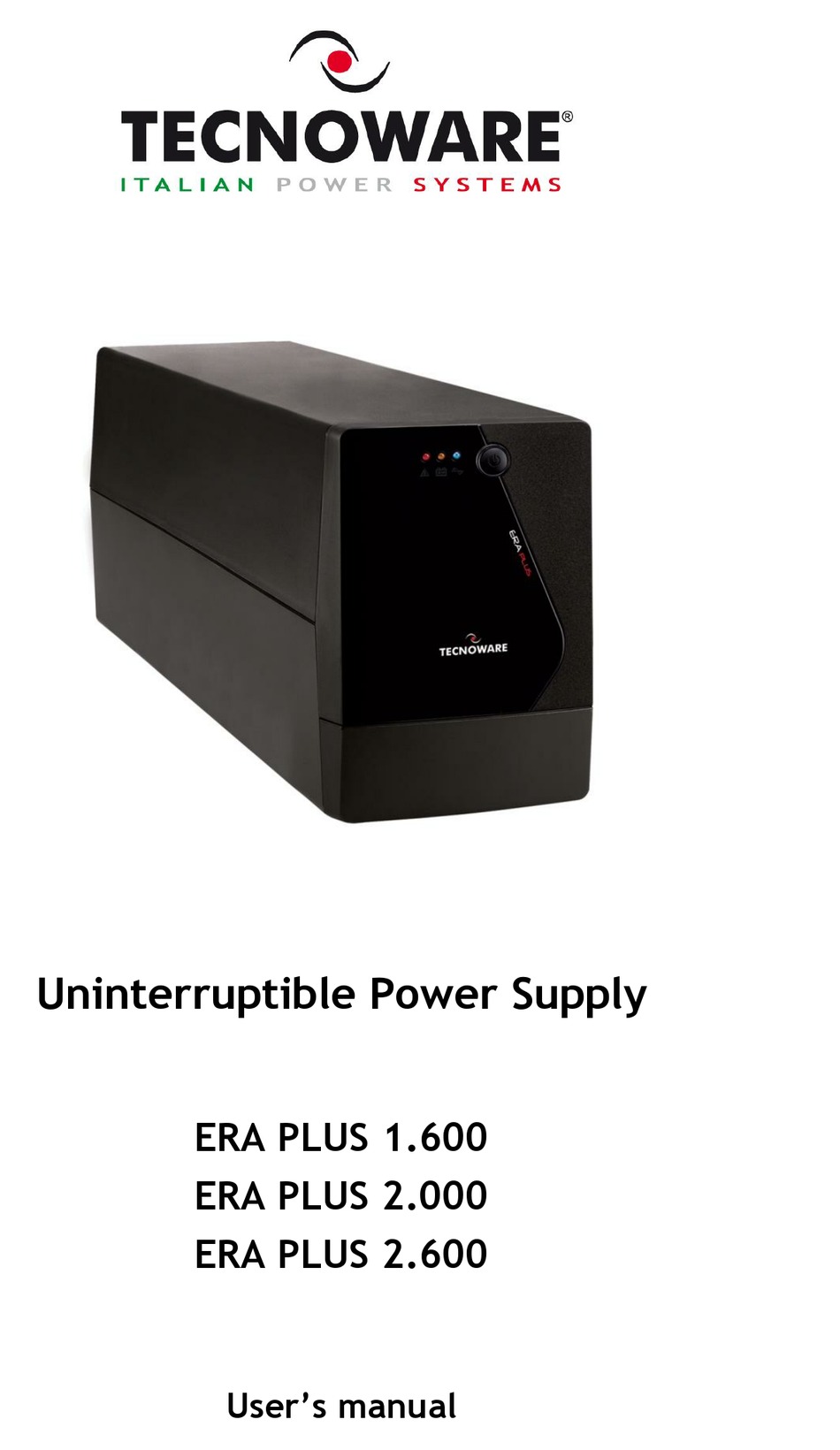

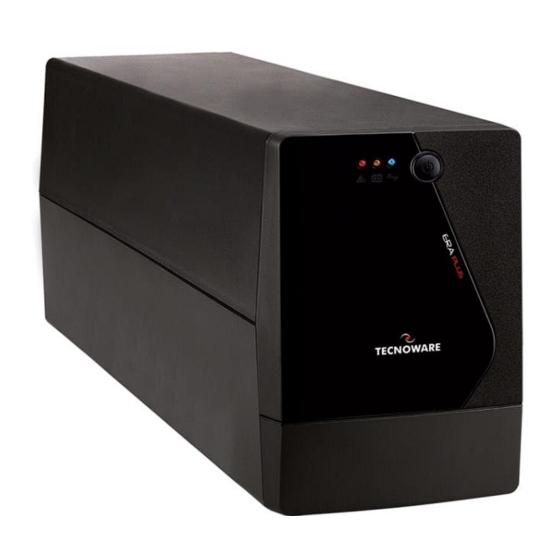

- Page 1 Uninterruptible Power Supply ERA PLUS 1.600 ERA PLUS 2.000 ERA PLUS 2.600 User’s manual ...
- Page 2 ...
-
Page 3: Table Of Contents
Edition: January 2018 – version: 1.1 No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS ERA PLUS 1.600 – 2.000 – 2.600... -
Page 4: Safety Warnings
Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE ERA PLUS Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used. -
Page 5: Introduction
ERA PLUS 1.600 (1.6 KVA) ERA PLUS 2.000 (2.0 KVA) ERA PLUS 2.600 (2.6 KVA) In this manual ERA PLUS will simply be referred to as UPS. UPS ERA PLUS 1.600 – 2.000 – 2.600 User’s manual... -
Page 6: General Characteristics
Do not keep liquids, flammable gases or corrosive substances near the unit. Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat. User’s manual UPS ERA PLUS 1.600 – 2.000 – 2.600... -
Page 7: External Description
3 Leds that show the functioning modes, alarm and fault conditions. ON/OFF button: enables the user to turn ON/OFF the UPS. Figure 1 – Front panel UPS ERA PLUS 1.600 – 2.000 – 2.600 User’s manual... -
Page 8: Leds And On/Off Button
3. Fault LED: this FAULT led (red) switches on to indicate the excessive or the OVERLOAD condition or generic “FAULT”. 4. ON/OFF Button: to turn ON and OFF the UPS. User’s manual UPS ERA PLUS 1.600 – 2.000 – 2.600... -
Page 9: Rear Side
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (black colour, #3) continue supplying the correct power to all connected equipment. Please connect all the non-critical devices to the UPS Output receptacles. UPS ERA PLUS 1.600 – 2.000 – 2.600 User’s manual... -
Page 10: Electrical Installation And First Start Up
There are no internal parts in the UPS that are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 11: Functioning
After a complete discharge, the UPS needs 4 hours to recharge completely the batteries. The UPS recharges batteries automatically if it works in Normal mode or if it is off and connected to the AC Input Line. UPS ERA PLUS 1.600 – 2.000 – 2.600 User’s manual... -
Page 12: Load Control
The USB signal is isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software TecnoManager, compatible with the most popular Operative Systems. -
Page 13: Technical Characteristics
13 x 18,2 x 32 cm Net Weight 7,8 Kg 8,6 Kg 10,4 Kg Technical data may change without prior notice (*) Connect the printers to the ONLY FILTERED Output sockets UPS ERA PLUS 1.600 – 2.000 – 2.600 User’s manual... -
Page 14: Maintenance
Disconnect the battery wires and gently extract batteries from the case. The new batteries must be exactly the same type as the original one. Put inside the new batteries and connect them as the original one. Reassemble the case cover. User’s manual UPS ERA PLUS 1.600 – 2.000 – 2.600... -
Page 15: Operator Safety
Battery replacement must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. When replacing batteries, replace with the same type and number. CAUTION: A battery can present a risk of electrical shock and high short circuit current. -
Page 16: Troubleshooting
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Warning to the technical personnel authorized for service: since internal components are connected to the batteries, they will remain powered, and therefore dangerous, even after the UPS has been disconnected from AC power mains. -
Page 17: Conformity To The European Directives
Conformity to the European Directives TECNOWARE S.r.l. confirms that ERA PLUS models comply with the requirements set out in: the Low Voltage Directive (Safety) 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments. The following standards were applied:... - Page 18 ...
- Page 20 TECNOWARE s.r.l. www.tecnoware.com...
