4.2 Rear Side
1.
Grounded AC Input power socket: IEC C14 type; to connect the UPS to the AC utility line.
2.
Input fuse: electrical specification: max current 10A.
3.
Telephone protection (RJ11/RJ45 IN/OUT connectors): to protect and filter a phone line, an ADSL or a LAN
(TNV-3 type connections).
4.
Grounded UPS Output receptacles: IEC C13 type, black colour, to supply critical loads.
5.
Grounded (ONLY FILTERED) Output receptacles: IEC C13 type, red colour, to supply NON-critical loads.
6.
Computer Interface (USB connector): it is the communication USB port.
The 4 ONLY FILTERED Output receptacles (red colour, #5), protect only the devices
connected from overvoltages and disturbances of the AC line. Please connect ONLY the
NON-critical devices to the ONLY FILTERED Output receptacles
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (black
colour, #4) continue supplying the correct power to all connected equipment. Please
connect all the non-critical devices to the UPS Output receptacles.
UPS EXA PLUS 1.0 – 1.5 – 2.0

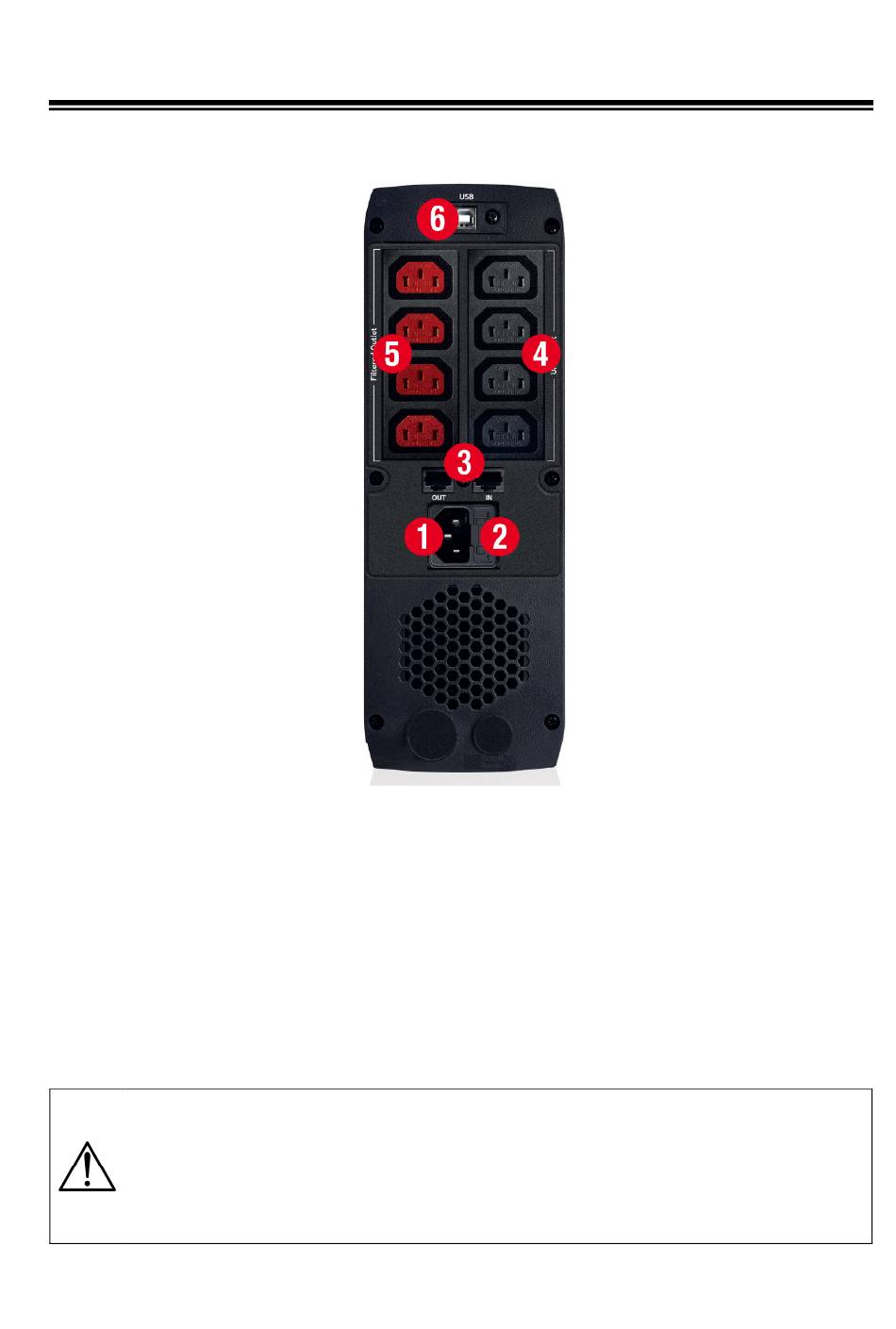

Figure 3 – Rear Side
9
