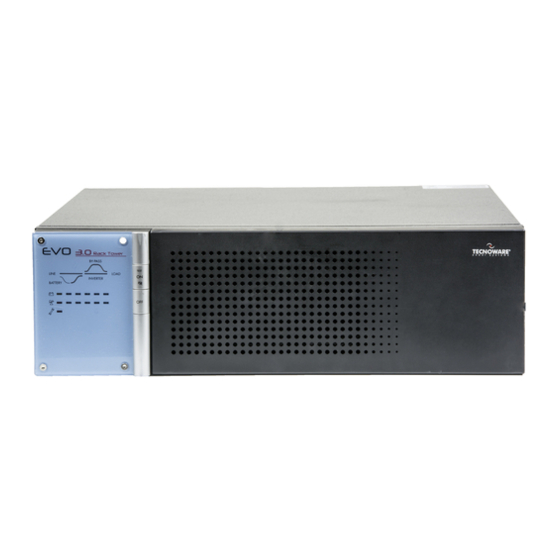

- Page 1 EVO RT Uninterruptible Power Supply EVO 1.0 RT EVO 2.0 RT EVO 3.0 RT USER’S MANUAL...
-
Page 3: Table Of Contents
17 © Copyright 2006 TECNOWARE s.r.l. All rights reserved. All trademark are property of their respective owners. TECNOWARE s.r.l. www.service.tecnoware.com This manual has been printed and edited by TECNOWARE s.r.l. November 2006 Edition version 3.0 User’s manual UPS EVO RT... -
Page 4: Security Notice
SECURITY NOTICE Read this manual carefully before installing and using TECNOWARE EVO RT Uninterruptible Power Supply, which will be referred to as UPS from hereafter. The UPS must be used only by properly trained personnel. To ensure correct and safe operation, it is necessary that operators and maintenance personnel observe the general Safety Standards as well as the specific instructions included in this manual. -
Page 5: Introduction
INTRODUCTION EVO RT UPS EVO RT UPS (Uninterruptible Power Supplies) are the result of constant technological research aimed at obtaining the best performance at the lowest cost. EVO RT UPS are advanced ON-LINE UPS, single-phase, built specifically to protect your computer from any irregularities in the AC line (for example blackouts, brownouts, overvoltages, micro-interruptions) which often cause damage to hardware and software. -
Page 6: Main Characteristics
MAIN CHARACTERISTICS EVO RT offers all the modern characteristics which guarantee maximum reliability and security: Microprocessor control guarantees high reliability • ON-LINE double technology without transformer • Pure Sinewave • Output voltage regulation +/- 2% • Overload, overheating and short circuit protection •... -
Page 7: External Description
EXTERNAL DESCRIPTION FRONT PANEL The control buttons and leds indicating various operating modes and alarm conditions are situated on the front panel. Please see the figures 1 and 2. OFF button To turn the UPS OFF, press this button for 3 seconds. ON/TEST/ALARM button Can be used for 3 functions: •... -
Page 8: Rear Side
LOAD LEVEL led bar Refer Figure 2 The led bar has 6 leds (5 leds are blue and one led is red). This bar indicates the output power percentage (LOAD LEVEL), proportional to the number of switched on leds. The greater the load the more LED indicators will light on. There are the following LOAD LEVEL percentages: 0~20%: only one led is on (Led13) •... -
Page 9: Epo (Emergency Power Off)
EPO (EMERGENCY POWER OFF) Remote Button EVO have the EPO (Emergency Power OFF) connector (2 terminals connector) on the rear. This permits to immediately switch the UPS OFF from a distance in case of emergency. To use EPO function is very simple: it is sufficient to connect an external switch to the EPO terminal(see Figure 3 –... -
Page 10: Dry Contacts Board
DRY CONTACTS BOARD (OPTIONAL) Common Fault Bypass AC fail Low BAT The Dry Contact Board is constituted by a 10 pin connector. 1. Common Pin 1 and Pin 2 are common pins. 2. Fault Pin 3 is the normal-open output: When UPS works normally, Pin 3 and Pin 1-2 will be open, when UPS is failed, Pin 3 and Pin 1-2 will be closed. -
Page 11: Running Operations
RUNNING OPERATIONS SWITCHING ON If the UPS is switched off and connected to the electric line, the LINE Led in the front side is switched on together with the BAT. LEVEL led bar showing the batteries capacity level. In these conditions the UPS has the only function of recharging batteries and there is no power on the output sockets (switched off output). -
Page 12: Battery Mode
WARNING BYPASS operations must be carried out ONLY by qualified Technical personnel specialised and authorised by Tecnoware. LOW BATTERY AND AUTOMATIC RESTART In BATTERY mode, EVO RT indicates the LOW BATTERY condition whenever the battery reaches a charge level allowing connected devices to operate for approximately one more minute. -
Page 13: Load Test
The UPS warns the user of this LOW BATTERY condition by increasing the acoustic alarm signal (there is an acoustic signal every second) and by turning on the yellow led of the BAT. LEVEL. If the AC utility power is not restored within one minute of this condition, the UPS will automatically switch OFF. -
Page 14: Installation Instructions
INSTALLATION INSTRUCTIONS RECEIPT OF UPS Inspect the UPS upon receipt. If the UPS has been damaged during shipment, keep the box and packing material for the carrier. Notify the carrier and dealer immediately. Make sure the following is in the box •... -
Page 15: Computer Interface
There are no internal parts in the UPS which are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Risk of electric shock at the output socket if the UPS is ON, even when the UPS is not connected to AC utility line. -
Page 16: Technical Characteristics
TECHNICAL CHARACTERISTICS EVO 1.0 RT EVO 2.0 RT EVO 3.0 RT MODEL 1000 VA 2000 VA 3000 VA POWER (700 W) (1400 W) (2100 W) NOMINAL INPUT VOLTAGE Single Phase 220/230 V INPUT VOLTAGE RANGE + 20 % / -25 %... -
Page 17: Suggestions For A Correct Use
BATTERIES REPLACEMENT (HOT SWAP BATTERIES) WARNING EXCLUSIVELY contact Tecnoware for information in which batteries should be used. DANGER Batteries operated by non experienced personnel, can cause electric shock or short- circuits. Do not bring them near heat because they can explode. -
Page 18: Safety For The Operator
The battery connection or replacement must be carried out ONLY by qualified Technical personnel specialized and authorized by Tecnoware. TECNOWARE declines any responsibilities if this rule is not followed. SAFETY FOR THE OPERATOR If the EVO RT does not have the original security characteristics, it must be made non functional, and a non authorised use must be avoided. -
Page 19: Anomalies And Troubleshooting
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. If the described anomalies should continue despite the advised troubleshooting, or should they manifest in any other form, please... -
Page 20: Figures
FIGURES Figure 1 – Operating modes Top diagram :- NORMAL OPERATION Middle diagram :- BATTERY OPERATION Bottom diagram :- BYPASS OPERATION UPS EVO RT User’s manual... - Page 21 BY-PASS TEST LOAD LINE INVERTER BATTERY Figure 2 – Front panel Front buttons LOAD level led bar 1 - ON/TEST/ALARM Button 8 – OVERLOAD led (red) 2 – OFF Button 9 - LOAD 100% led (blue) 10 - LOAD 80% led (blue) 11 - LOAD 60% led (blue) 12 - LOAD 40% led (blue) 13 - LOAD 20% led (blue)
- Page 22 Figure 3 – Rear side up: EVO 1.0 RT down: EVO 2.0 RT and EVO 3.0 RT Grounded AC Input socket Input Circuit Breaker Grounded output socket Grounded power output socket (EVO 2.0 and EVO 3.0) Computer Interface (RS-232) RJ11/RJ45 IN/OUT plugs Slot for external batteries connector.
-
Page 23: Conformity To The European Directives
24 MONTHS WARRANTY – valid in all UE countries TECNOWARE S.r.l. guarantees the product for a period of 24 months from the original date of purchase. The date of purchase is proved with the receipt of account released by the authorised reseller, which clearly indicates the date in which the product was sold and the product identification code (model and serial number). - Page 24 TECNOWARE S.r.l. www.service.tecnoware.com...
