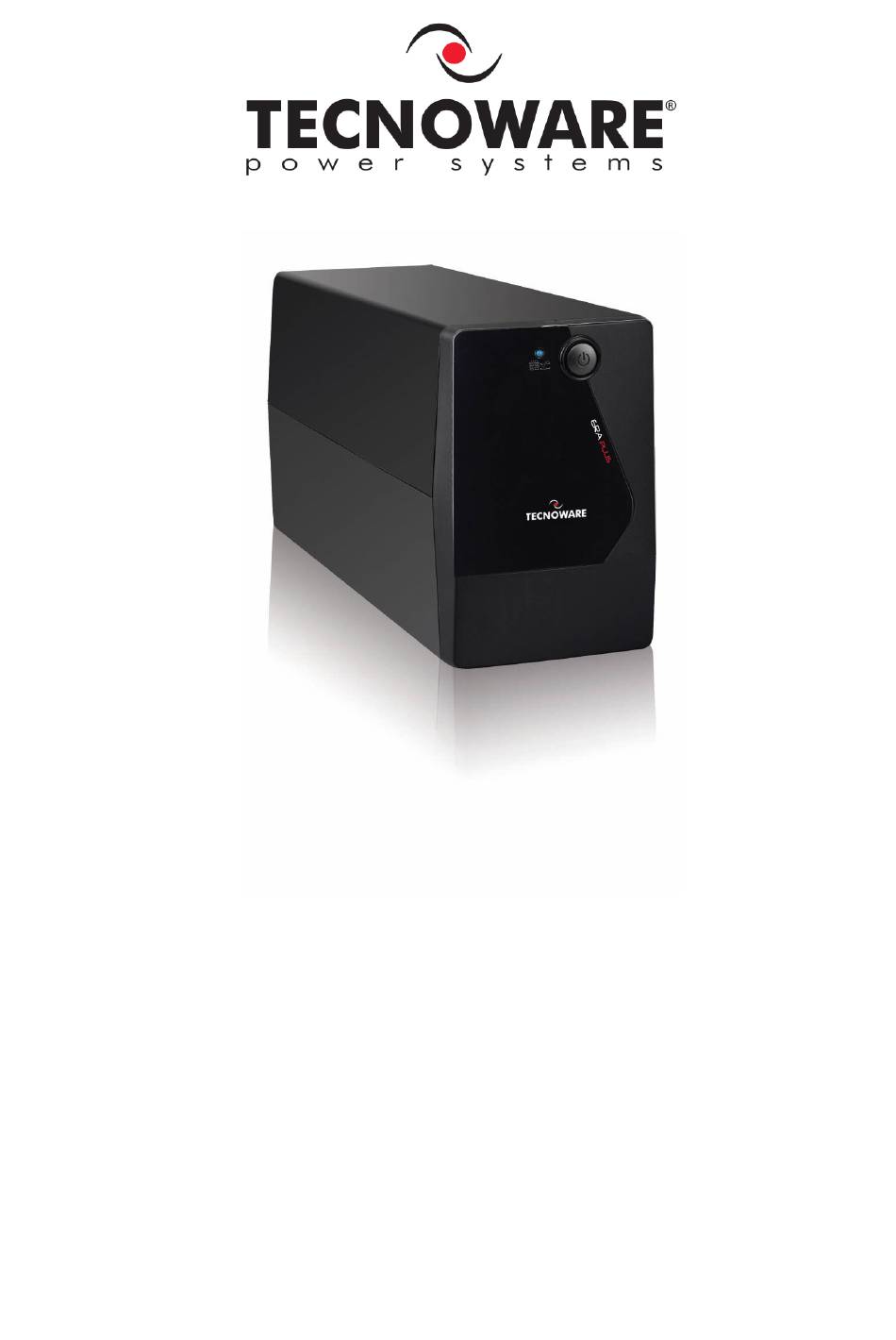

- Page 1 Uninterruptible Power Supply ERA PLUS 600 ERA PLUS 750 ERA PLUS 900 ERA PLUS 1.100 ERA PLUS 1.500 User’s manual...
-
Page 3: Table Of Contents
Edition: Nevember 2016 – version: 1.3 No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS ERA PLUS 600-750-900-1.100-1.500... -
Page 4: Safety Warnings
Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE ERA PLUS Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used. -
Page 5: Introduction
• ERA PLUS 600 (600 VA) • ERA PLUS 750 (750 VA) • ERA PLUS 900 (900 VA) • ERA PLUS 1.100 (1.100 VA) • ERA PLUS 1.500 (1.500 VA) In this manual ERA PLUS will simply be referred to as UPS. -
Page 6: General Characteristics
2 General Characteristics ERA PLUS has all the advanced features, which guarantee maximum reliability and safety: All functions are controlled by a microprocessor, giving full guarantee of high reliability. • Output Voltage regulation through AVR (Automatic Voltage Regulation). • Overload protection both in normal mode and in battery mode. •... -
Page 7: External Description
4 EXTERNAL DESCRIPTION 4.1 Front Panel The front panel informs the user about operating status, alarm conditions and measurements. Front panel shown below consists of two parts: The ON/OFF button: enables the user to turn ON/OFF the UPS. The LINE/BATTERY led: this led (blue color) is always on during the functioning in Normal Mode, it flashes one time every 4 seconds in Battery mode and it flashes one time every second in Low Battery condition. -
Page 8: Rear Side
Input fuse: electrical specification: max current 5 A, voltage 250 V. Grounded UPS Output receptacles: Schuko/Italian type, black colour, to supply critical loads. Computer Interface (USB connector): it is the communication USB port. (Only for UPS ERA Plus 1.100 and UPS ERA Plus 1.500) In case of anomaly to the AC line (black-out), the UPS Output receptacles (black colour, #3) continue supplying the correct power to all connected equipment. -
Page 9: Electrical Installation And First Start Up
There are no internal parts in the UPS that are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 10: Functioning
6 Functioning 6.1 Normal Mode The UPS typically works in Normal mode: Input mains power is available and its amplitude is within specifications. In Normal mode the LINE/BATTERY led is always on. During Normal mode, the UPS recharges the batteries and keeps them in an optimal charging voltage. 6.2 Battery Mode The UPS automatically runs in Battery mode if the AC Input Line voltage amplitude gets out of security limits (in case of a black-out or over-voltage/low-voltage): in this case, the UPS supplies the required output power by its... -
Page 11: Load Control
During Fault condition, the UPS doesn’t supply Output power and so all the supplied devices are switched off. Communication Interface The UPS is factory-equipped with USB Communication Interface (only ERA Plus 1.100 and ERA Plus 1.500). On the UPS rear side there is the connector of the USB Interface. -
Page 12: Technical Characteristics
Altitude: max 3.000 mt Computer Interface 1 USB port Software TecnoManager, UPS Management Software downloadable free of charge from www.tecnoware.com Output sockets 2 UPS Output sockets (Schuko/Italian type) Dimension (W x H x D) 10,1 x 14,2 x 27,9 cm Net Weight 3.5 Kg... -
Page 13: Maintenance
Maintenance UPS Cleaning Before starting any cleaning operation, be sure that: 1. The AC Input Voltage for the UPS has been removed. 2. The UPS is OFF. Use only a cloth dampened with water to clean the unit. If UPS works in an environmental unusually dusty or dirty, remove the dirty from the ventilation holes. Before restarting the UPS be sure it is completely dry. -
Page 14: Operator Safety
Battery replacement must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. When replacing batteries, replace with the same type and number. CAUTION: A battery can present a risk of electrical shock and high short circuit current. - Page 15 TECNOWARE declines any responsibility if this warning is disregarded. Warning to the technical personnel authorized for service: since internal components are connected to the batteries, they will remain powered, and therefore dangerous, even after the UPS has been disconnected from AC power mains. Before any repair or maintenance work, disconnect the batteries, by removing the positive cable (red colour) from the positive pole of the battery.
-
Page 16: Conformity To The European Directives
Conformity to the European Directives TECNOWARE S.r.l. confirms that ERA PLUS models comply with the requirements set out in: the Low Voltage Directive (Safety) 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments. WARNING - This is a category C2 UPS product. In a residential environmental, this product may cause radio interference, in which case the user may be required to take additional measures. - Page 19 TECNOWARE s.r.l. www.tecnoware.com...
