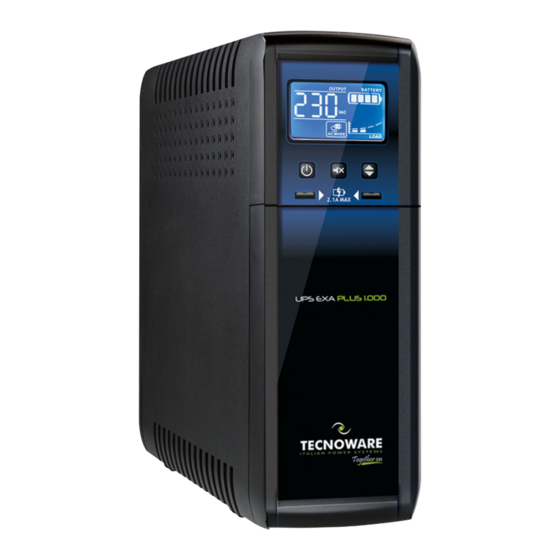

- Page 1 Uninterruptible Power Supply EXA PLUS 1000 EXA PLUS 1500 EXA PLUS 2000 User’s manual...
-
Page 3: Table Of Contents
Edition: February 2022 – version: 2.0 No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS EXA PLUS 1000 – 1500 - 2000... -
Page 4: Safety Warnings
Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE EXA PLUS Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. This manual should be kept close to the UPS and read before the UPS is installed and used. -
Page 5: Introduction
• EXA PLUS 1000 (1.0 KVA) • EXA PLUS 1500 (1.5 KVA) • EXA PLUS 2000 (2.0 KVA) In this manual EXA PLUS will simply be referred to as UPS. UPS EXA PLUS 1000 – 1500 - 2000 User’s manual... -
Page 6: General Characteristics
Do not keep liquids, flammable gases or corrosive substances near the unit. • Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat. • User’s manual UPS EXA PLUS 1000 – 1500 - 2000... -
Page 7: External Description
UPS audible alarm and the SELECT button that enables the user to choose the measured value to report on the UPS display. 5V-2.1 USB Charger Port Figure 1 – Front panel UPS EXA PLUS 1000 – 1500 - 2000 User’s manual... -
Page 8: Lcd Display
REPLACE BATTERY: is on to indicate issue on the batteries. OVER LOAD: is on to indicate the Overload condition. FAULT: is on to indicate the Fault condition. MUTE: is on to indicate that the UPS audible alarm is disabled. User’s manual UPS EXA PLUS 1000 – 1500 - 2000... -
Page 9: Rear Side
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (black colour, #4) continue supplying the correct power to all connected equipment. Please connect all the non-critical devices to the UPS Output receptacles. UPS EXA PLUS 1000 – 1500 - 2000 User’s manual... -
Page 10: Electrical Installation And First Start Up
There are no internal parts in the UPS that are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 11: Functioning
After a complete discharge, the UPS needs 4 hours to recharge completely the batteries. The UPS recharges batteries automatically if it works in Normal mode or if it is off and connected to the AC Input Line. UPS EXA PLUS 1000 – 1500 - 2000 User’s manual... -
Page 12: Load Control
The USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software TECNOMANAGER, compatible with the most popular Operative Systems. -
Page 13: Technical Characteristics
9,9 x 28 x 41 cm Net Weight 7,4 Kg 11,8 Kg 13,1 Kg Technical data may change without prior notice (*) Connect the printers to the ONLY FILTERED Output sockets UPS EXA PLUS 1000 – 1500 - 2000 User’s manual... -
Page 14: Maintenance
The recommended environmental specifications for a correct use of batteries are listed in the “Technical Specifications” section. Battery Replacement Figure 4 – Battery Replacement User’s manual UPS EXA PLUS 1000 – 1500 - 2000... -
Page 15: Operator Safety
Reassemble the battery cover and then the front panel. Battery replacement must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. When replacing batteries, replace with the same type and number. -
Page 16: Troubleshooting
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Warning to the technical personnel authorized for service: since internal components are connected to the batteries, they will remain powered, and therefore dangerous, even after the UPS has been disconnected from AC power mains. -
Page 17: Conformity To The European Directives
Conformity to the European Directives TECNOWARE S.r.l. confirms that EXA PLUS models comply with the requirements set out in: the Low Voltage (Safety) Directive 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments. WARNING - This is a category C2 UPS product. In a residential environmental, this product may cause radio interference, in which case the user may be required to take additional measures. - Page 20 TECNOWARE s.r.l. www.tecnoware.com...
