4 EXTERNAL DESCRIPTION
4.1 Front Panel
The front panel informs the user about operating status, alarm conditions and measurements. Front panel shown
below consists of two parts:
1.
LCD display provides information about input (only in line mode) and output voltage, output frequency (only
in battery mode), battery level percentage, load level percentage, functioning modes, alarm and fault
conditions.
2.
ON/OFF button: enables the user to turn ON/OFF the UPS.
User's manual

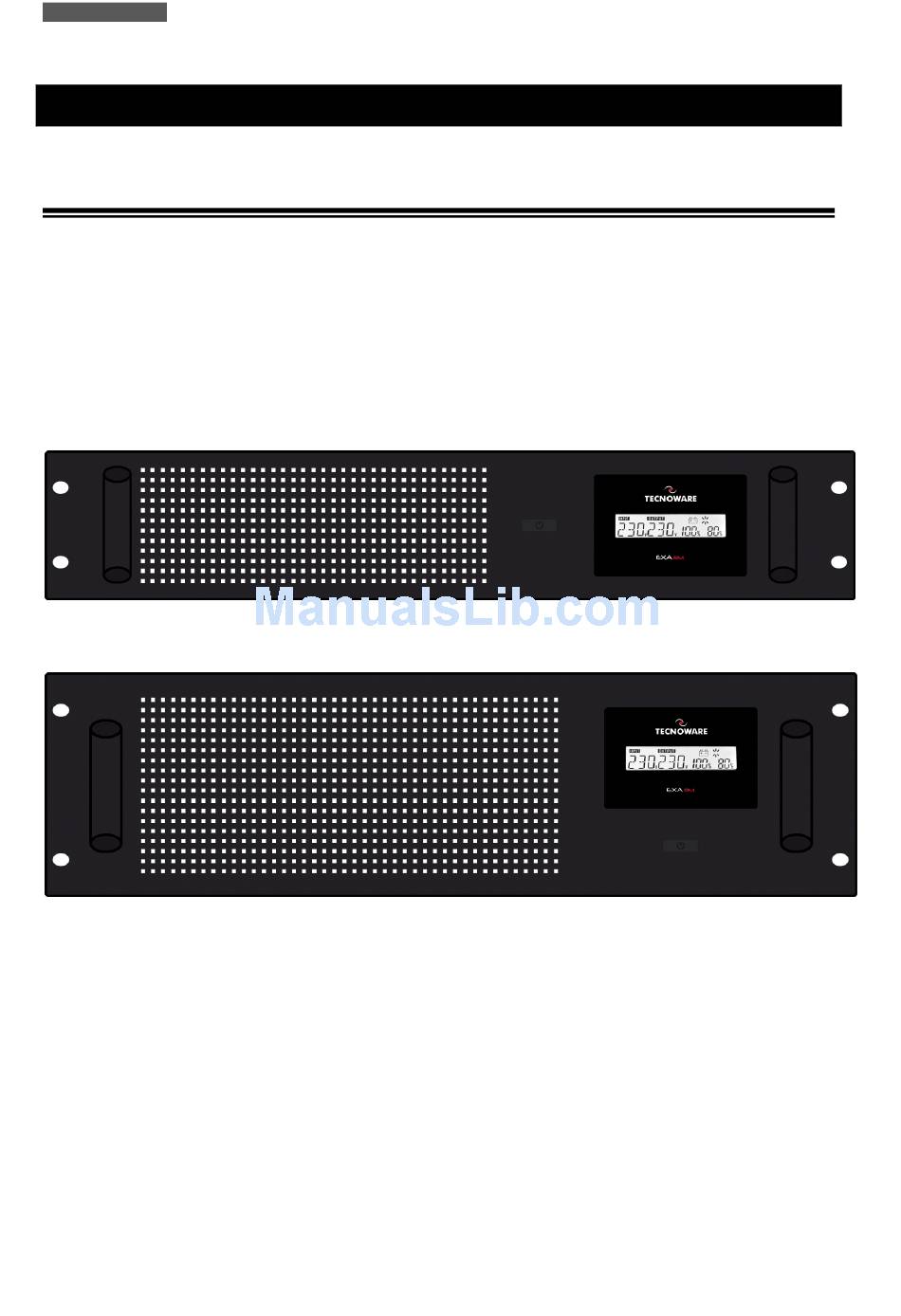

Figure 1 – Front panel
4
2
2
UPS EXA 1.1-1.5-2.2-2.6-3.2 Rack Mount
1
1
