Chapter 2 System Setup
2.1 System Installation
WARNING:
2.1.1 Attaching the handles.
The handles for the front panel are in the accessory box. To install the
handles, simply secure them to the front panel with the provided screws.
2.1.2 Removing the top cover and backplane holder
First, remove the chassis cover. The top cover is fixed to the chassis by
two thumbscrews.
1.
Release two thumbscrews on the rear upper location of the chassis.
2.
Lift the cover.
2.1.3 Chassis Front and Rear Sections
Face to the front view of ACP-4001, you will find a 6.4" TFT display
module; which LCD both sides are with five membrane control keys, on
the left side and there is a front door on the right side. Specially, a slim
type drawer with a 88-key keyboard is under the chassis. The front panel
switches and I/O interface behind the door are used for system reset,
power switch, USB port and brightness control. Face the rear of ACP-
ACP-4001 User's Manual
Before starting the installation process, be sure
to shut down all power from the chassis. Do this
by turning off the power switch, and unplugging
the power cord from the power outlet. When in
doubt, consult with an experienced technician.

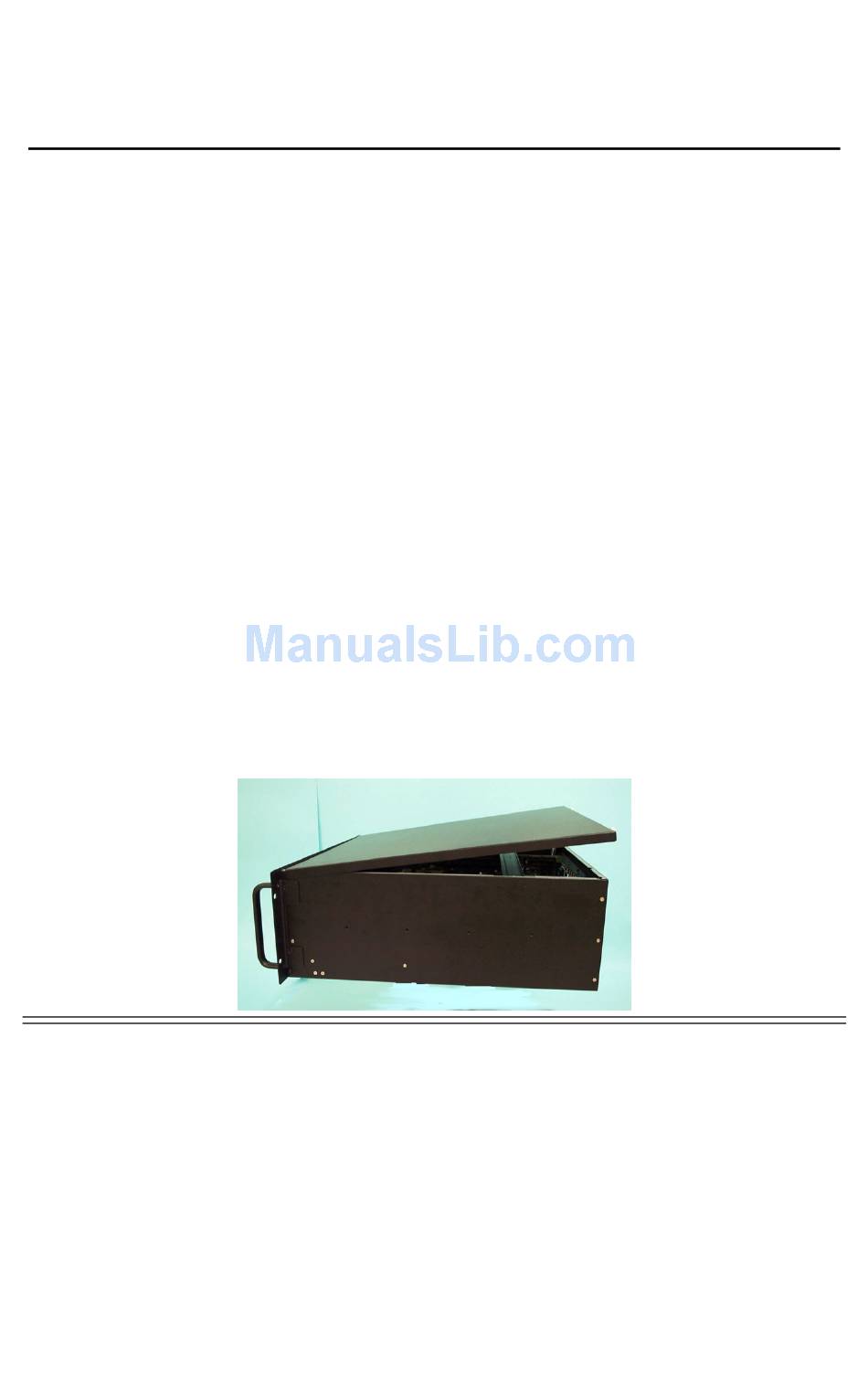

Figure 2.1: Top Cover
10
