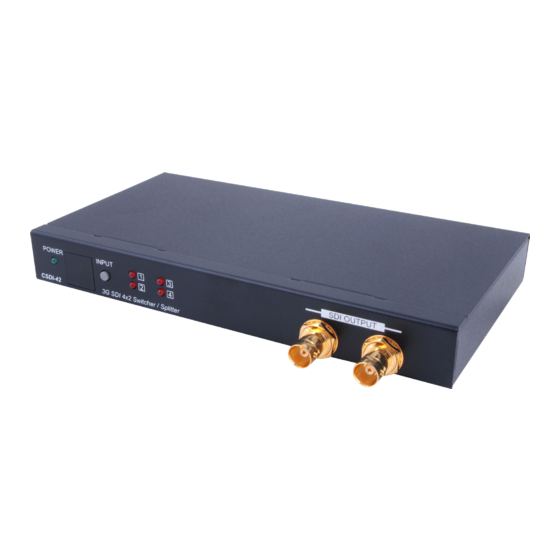

- Page 1 CSDI-42 3G-SDI 4 by 2 Switcher Splitter Operation Manual CSDI-42...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Revision History
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… RS-232 Protocols .......…..……..…..…..…..…... 8.1 Pin Assignment ....…..………..……..…..…..…. 8.2 Commands ..…..…............…... Remote Control ................Connection and Installation ….…………………..…..…..….. -
Page 5: Introduction
1. Introduction The 3G-SDI 4 by 2 Switcher Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without signal loss. For professionals this means that it is now easier to switch four 3G-SDI signals and split it up to two SDI signal outputs. -
Page 6: Specifications
6. Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmit ion Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s Input/Output Ports 4/2 BNC (SD-SDI/HD-SDI/3G-SDI) Support Timing SD-SDI: 480i / 576i HD-SDI: 720p@50/60, 1080i@50/60, 1080p@24/25 3G-SDI: 1080p@50/60 Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel SDI OUTPUT POWER INPUT CSDI-42 3G SDI 4x2 Switcher / Splitter ① ② ③ ④ ① Power LED: This green LED will illuminate when the device is connected with power supply. ② IR receiver: This IR window receives IR signal from the remote control included in the package. -
Page 8: Rs-232 Protocols
8. RS-232 Protocols 8.1 Pin Assignment Pins definition of modem cable Remote Controller Definition Definition Baud Rate: 19200bps Data bit: 8 bits Parity: None Stop bit: 1 bit 8.2 Commands Command Action Enter into /exit PC Command power00 Power OFF power01 Power ON input01... -
Page 9: Remote Control
9. Remote Control ① Power: Press the button to turn on/off the unit. ① ② Direct input selector: Press 1, 2, 3 or 4 to select the desired input source. ②... -
Page 10: Connection And Installation
10. Connection and Installation Camcorder SDI Monitor SDI Monitor CLUX-SDI2HC HDMI TV/Monitor... -
Page 11: Acronyms
Acronyms Acronym Complete Term Bandwidth 2.97Gbit/s ≈ 3G Bayonet Neill-Concelman Serial Digital Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110309 MPM-CSDI42...
