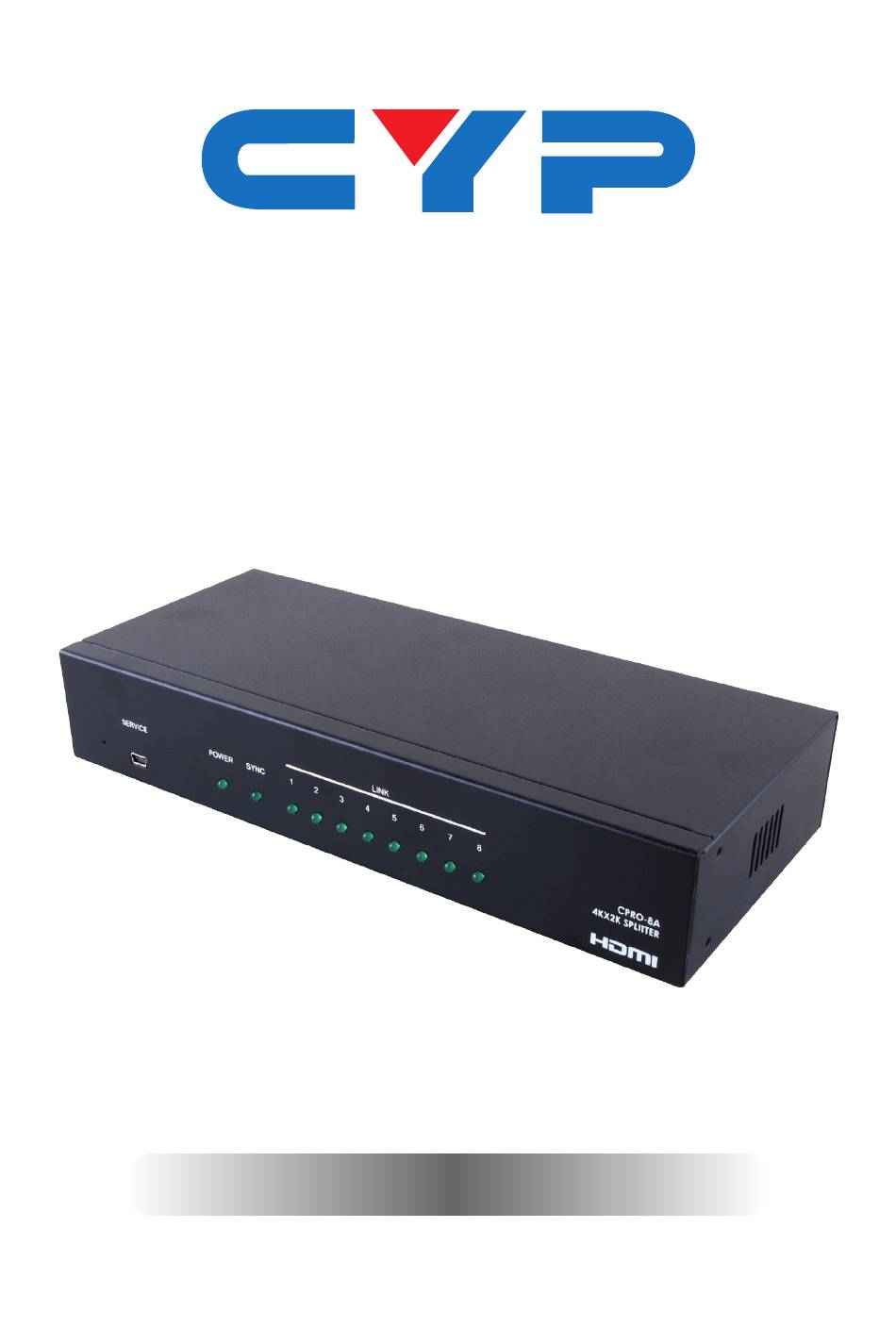

- Page 1 CPRO-2/4/8A HDMI 1 by 2 /1 by 4/ 1 by 8 Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION Cypress CPRO-2/4/8A is a 1 by 2/4/8 HDMI splitter which sends a Hi-Def A/V source to up to 2/4/8 HDTV displays simultaneously without any quality or resolution loss. It support 4Kx2K timing, 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. -
Page 7: Operation Controls And Functions

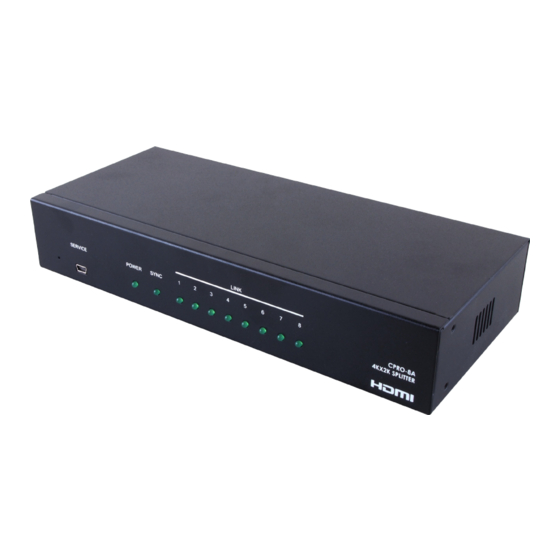

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LINK SERVICE POWER SYNC CPRO-8A 4KX2K SPLITTER SERVICE This port is reserve for factory service only. POWER LED The device will be power on automatically once the power supply is connected to the device and the LED will illuminate. SYNC LED This LED will illuminate when the input source is connected with signal sending. -
Page 8: Rear Panel
6.2 Rear Panel HDMI OUT HDMI IN DC 5V EDID HDMI IN Connect this port to source equipment such as DVD/Blu-ray player with HDMI cable. HDMI OUT 1~8 Connect these ports to display TVs/monitors with HDMI cable. EDID STD/TV The default factory setting is on TV, leave as it is when the display is properly. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM 3D TV/Display 3D TV/Display HDMI HDMI 3D TV/Display 3D TV/Display Blu-ray PS3 player HDMI HDMI HDMI HDMI OUT HDMI IN DC 5V EDID HDMI HDMI 3D TV/Display 3D TV/Display HDMI HDMI 3D TV/Display 3D TV/Display... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth Up to 300MHz/10.2Gbps 1x HDMI (Female type) Input port 1xUSB (Service only) Output port 2 /4/8x HDMI (Female type) 480i ~1080p 50/60, 1080p24/50/60, Output Resolution VGA~UXGA, 4Kx2K 5V/3A DC (US/EU standards, Power Supply CE/FCC/UL certified) ESD Protection Human Body model: +/- 8kV (air-gap discharge) +/- 4kV (contact discharge) -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121005 MPM-CPRO8A...
