Summary of Contents for CYP CPRO-U4T

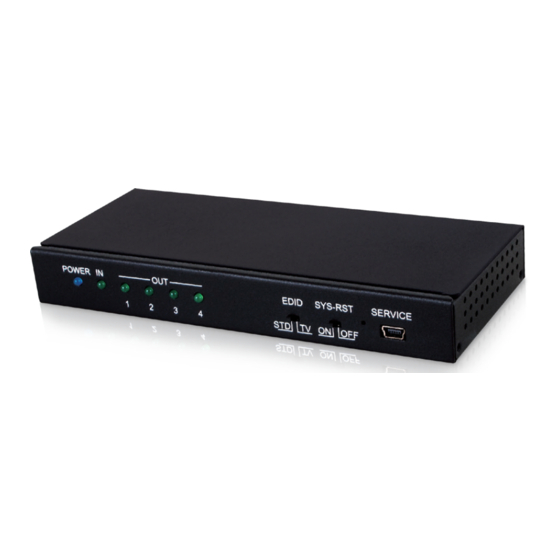

- Page 1 CPRO-U4T 4K UHD 1×4 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 7. Connection Diagram ........4 8. Specifications ..........5 8.1 Technical Specifications ...... -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input to 4 HDMI outputs. This distribution amp provides a high level of audio and video performance with support for video resolutions up to 4K@60Hz (4:2:0) and high definition digital audio formats such as LPCM 7.1, with audio sampling rates up to 192kHz, Bitstream, and HD Bitstream. -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compliant • HDCP 1.4 compliant • 1 HDMI input and 4 HDMI outputs • Supports HD resolutions up to 4096×2160@60Hz (4:2:0, 8-bit) • Simultaneous display of a single 4K source on up to four 4K displays •... -
Page 8: Rear Panel
SYS-RST SWITCH: Controls the CEC “active source” reset functionality of the unit. When switched to the “ON” position the unit will send a CEC active source reset command to all connected displays every 8~10 minutes. This command requests that any connected CEC compliant TVs switch to the input the unit is connected on. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Media Player HDMI Input Power Supply DC 5V HDMI Outputs UHDTV UHDTV UHDTV UHDTV... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 340MHz/10.2Gbps Input Port 1×HDMI Output Ports 4×HDMI Power Supply 5V/1.2A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions 161mm×22mm×68mm (W×H×D) [Case Only] 161mm×26mm×76.5mm (W×H×D) [All Inclusive] Weight 311g... -
Page 11: Video Specifications
8.2 Video Specifications HDMI HDMI Resolution/Timing (Hz) Input Output 640×480p@60/72/75/85 720×400p@70/85 720×480i@59/60 720×480p@59/60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@70/75/85 1280×720p@23/24/25/29/30/50/59/60 ... -
Page 12: Cable Specifications
HDMI HDMI Resolution/Timing (Hz) Input Output 2048×1080p@23/24/25/29/30/50/59/60 3840×2160p@50/59/60 (4:2:0) 3840×2160p@23/24/25/29/30 (4:4:4) 4096×2160p@50/59/60 (4:2:0) 4096×2160p@23/24/25/29/30 (4:4:4) 8.3 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Output... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television LPCM Linear Pulse-Code Modulation Ultra-High-Definition UHDTV Ultra-High-Definition Television... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
