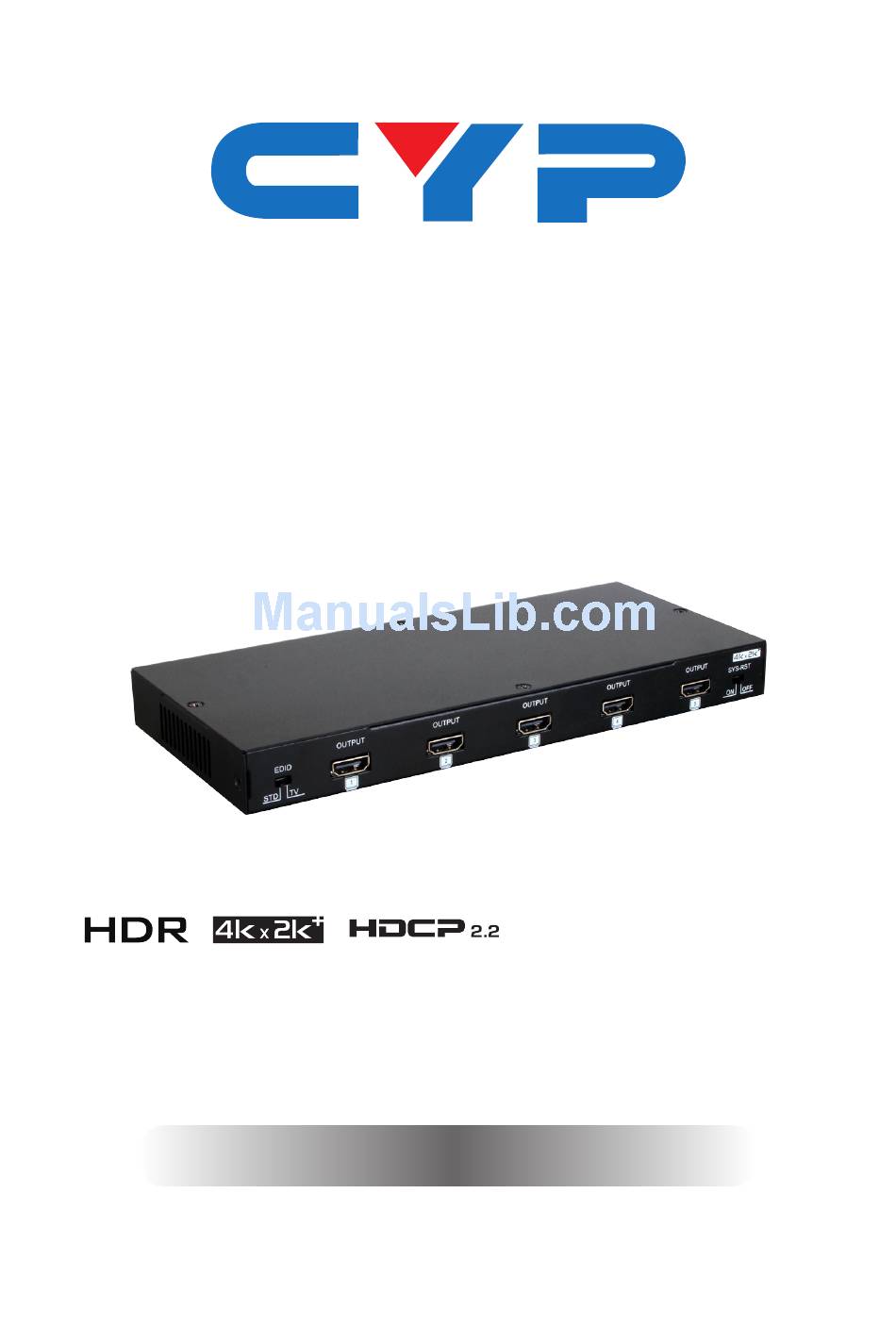

- Page 1 CPLUS-V8E 1 by 8 6G HDMI Splitter Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 4 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8.
-
Page 5: Introduction
1. INTRODUCTION The 1 by 8 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to 8 HDMI outputs. It provides high performance audio and video output up to 4K2K@60Hz (YUV444) resolution and is capable of provide high end of audio and video performance. -
Page 6: Features
5. FEATURES • HDMI 2.0 with 4Kx2K 6G supported, HDCP 2.2 and DVI compliant (Excludes Deep color and Color space YCbCr 422/444) • 1 HDMI input and 8 HDMI outputs • System Reset function supported (CEC active source command) • Simultaneous displays of a single Ultra High-Definition sources on up to 8 UHDTV displays •... -
Page 7: Operation Controls And Functions

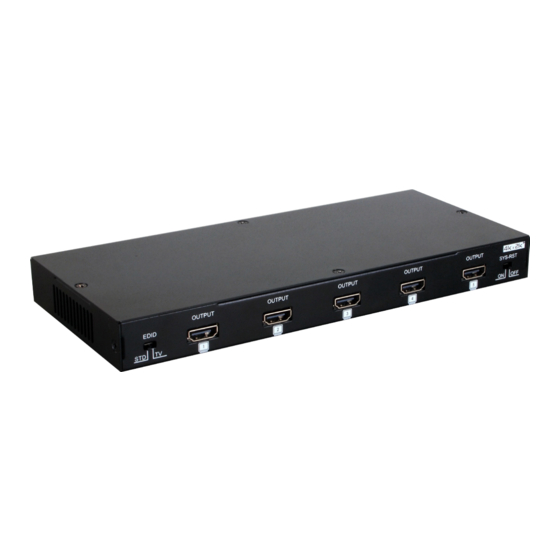

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT EDID SYS-RST EDID: Switch the dip switch to choose EDID mode to Standard (STD) or TV mode. When on TV mode, the unit will automatically detect and store output 1 sink EDID data. Switch to STD mode, the unit will set to standard at 1080p and audio standard at PCM 2 channel. -
Page 8: Rear Panel
6.2 Rear Panel SERVICE OUTPUT OUTPUT SYNC INPUT OUTPUT POWER DC 5V SERVICE: This is reserved for firmware update use only. OUTPUT 6~8: Connect to HDMI 6G TV/display or HD amplifier for output signal display. SYNC: When input detected, the LED will illuminate, the LED will flicker when detected abnormal, for example, when source signal not stabled. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM 6G HDMI TV/Display Projector Projector Blu-Ray/PS4Player Simultaneous HDMI OUT HDMI Input Power SERVICE OUTPUT OUTPUT SYNC INPUT OUTPUT POWER DC 5V Supply OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT EDID SYS-RST Simultaneous HDMI Outputs Projector Projector 6G HDMI TV/Display 6G HDMI TV/Display 6G HDMI TV/Display... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 1 x HDMI 1 x USB(Service) Output Ports 8 x HDMI Supported Resolutions VGA~WUXGA 480i~1080p@24/50/60 4K2K@24/25/30/50/60(YUV444) HDMI Cable I/O 5m@4K2K/60_YUV444 Distance 10m@1080p/12-bit 15m@1080p/8-bit Power Supply 5VDC/3A (US/EU standards, CE/FCC/ UL certified) ESD Protection Human Body model: ±... -
Page 11: Supported Resolutions
8.2 Supported Resolutions DVI and HDMI Supported Resolutions Input Output 640x480@60/72/75/85 √ √ 800x600@56/60/72/75/85 √ √ 1024x768@60/70/75/85 √ √ 1280x1024@60 √ √ 1366x768@60 √ √ 1600x1200@60 √ √ 1920x1080@60 √ √ 1920x1200@60 √ √ 1440x576i@50 √ √ 1440x480i@59.94/60 √ √ 720x480p@59.94/60 √... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPLUSV8EP...
