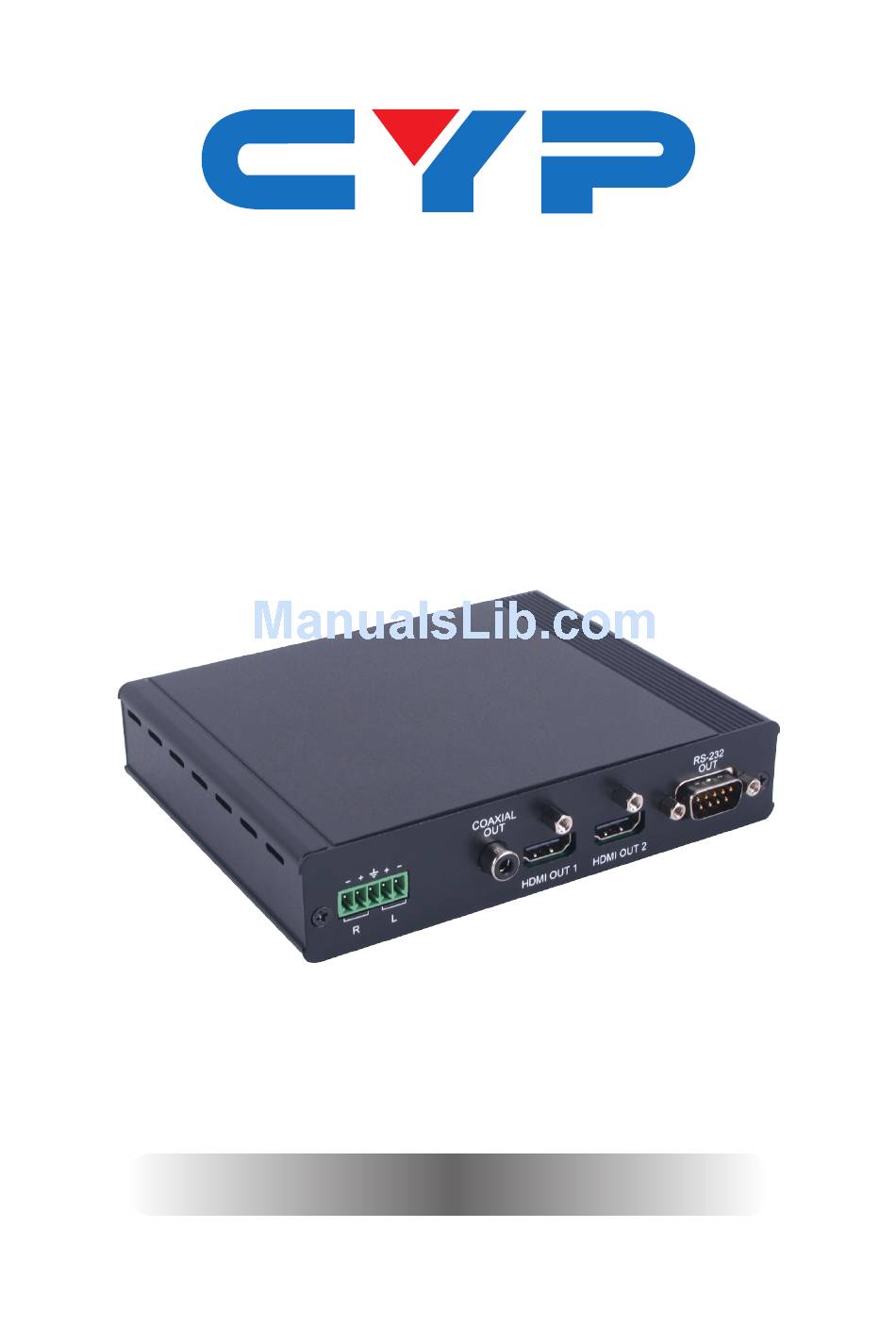

- Page 1 CH-526RXPL HDMI Splitter with Audio over CAT5e/6/7 Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignments ....4 6.4 D-Sub 9 Pin Definition .......5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI and Audio over Single CAT5e/6/7 Receiver/Splitter can receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m. It has the added benefit of simultaneouse dual HDMI outputs with audio de-embedding to a balanced or digital coaxial audio output and IR control function The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations. - Page 7 5. FEATURES • Supports full range HDTV and PC output resolutions up to 4K2K and WUXGA (RB) • Receive uncompressed data over a single 60m CAT5e/6/7 cable • 4Play™ convergence: Video, Audio, Bidirectional PoC & Control (IR & RS-232 bypass) •...
-
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 24V CAT5e/6/7 IN IR 1 IR 2 POWER Power LED: This LED will illuminate when the device is connected to a power supply. DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 9: Rear Panel

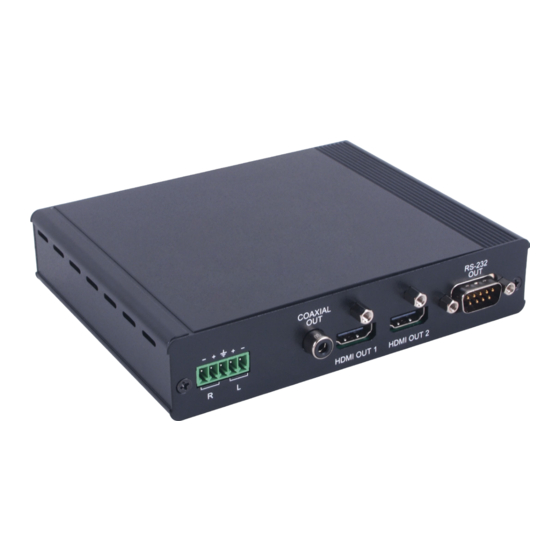

6.2 Rear Panel COAXIAL RS-232 HDMI OUT 1 HDMI OUT 2 Balanced Analog R/L OUT: Connect to an amplifier or active speaker with 3.5mm terminal block jack for audio output. COAXIAL OUT: Connect to an amplifier or active speaker with coaxial cable for audio output. -
Page 10: D-Sub 9 Pin Definition
6.4 D-Sub 9 Pin Definition Define TX/RX TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Compatible Transmitter IR2 Blaster Power IR1 Extender 1.5m 60° 60° DC 24V CAT5e/6/7 IN IR 1 IR 2 POWER COAXIAL RS-232 HDMI OUT 1 HDMI OUT 2 Digital Audio RS-232 Equipped Output (Optical) PC or Notebook Smart TV or Game Console... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Input Ports 1x CAT5e/6/7, 1 x IR Extender Output Ports 2 x HDMI, 1 x Coaxial, 1 x Balanced Analog (R/L), 1×IR Blaster, 1 x RS-232 CAT5e/6/7 Output Cable Up to 60 Meters Distance HMDI Input/Output Up to 10 Meters@1080p or 5Meters@4K2K... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT 5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable HDMI High-Definition Multimedia Interface Infrared WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH526RXPL...
