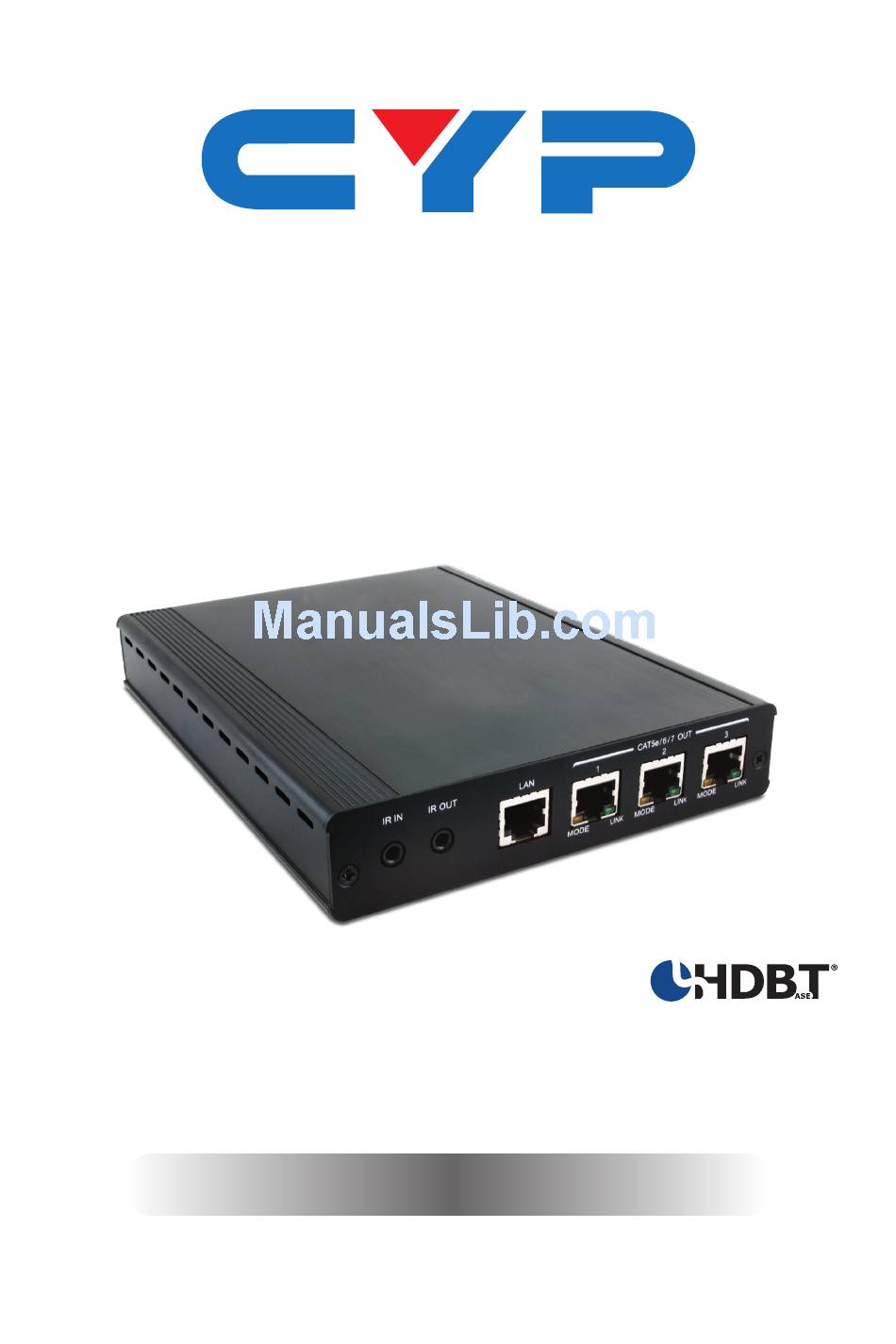

- Page 1 CHDBT-1H3CE 1×4 HDMI over HDMI and CAT5e/6/7 Splitter with PoE and LAN Serving Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment ....5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi- channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). -
Page 7: Features
• Certified CAT5e/6/7 cables • HDBaseT™ Receivers (e.g. CH-507RX or CH-1109RX) 5. FEATURES • HDMI with 4K×2K resolution and 3D support, HDCP and DVI compliant • Simultaneous HDMI and CAT5e/6/7 outputs • Supports data rate from 300 Mbps up to 3 Gbps •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 24V SYNC LINK EDID SERVICE HDMI IN HDMI OUT POWER HDMI IN: Connect to HDMI equipped source equipment such as a DVD/Blu-ray player or games console. SYNC LED: This LED will illuminate when the HDMI input is connected to a HDMI source and receiving a signal. -
Page 9: Rear Panel

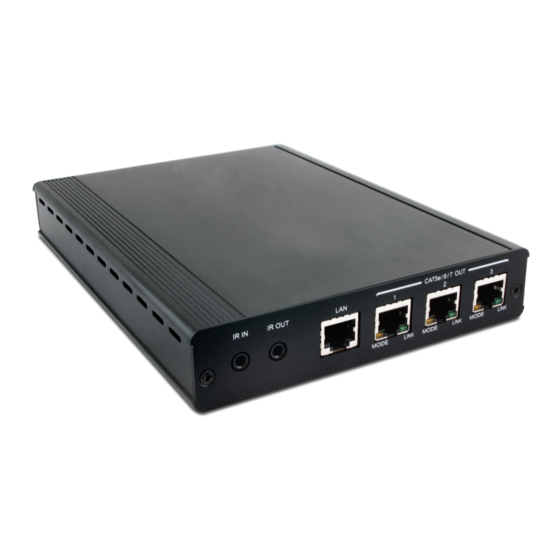

6.2 Rear Panel CAT5e / 6 / 7 OUT IR IN IR OUT MODE LINK MODE LINK MODE LINK IR IN: Connect the supplied IR Receiver cable for IR signal reception. Ensure that remote being used is within the direct line- of-sight of the IR Extender. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Ground... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Local HDMI Display Blu-ray Player or Games Console HDMI HDMI Input Output 1.5m 60° 60° IR RECEIVER IR BLASTER DC 24V SYNC LINK EDID SERVICE HDMI IN HDMI OUT POWER CAT5e / 6 / 7 OUT IR IN IR OUT MODE LINK... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 Mbps/10.2 Gbps Input Ports 1×HDMI, 1×IR IN, 1×LAN, 1×USB (Service only) Output Ports 1×HDMI, 3×CAT5e/6/7, 1×IR OUT HDMI Supported 480i~1080p@50/60 Hz, 1080p@24 Hz, 4K×2K Resolutions (3840×2160@30 Hz/4096×2160@24/25Hz) & VGA~WUXGA (RB) HDMI Input 10m (1080p@8/12-bit), 5m (4K×2K) Cable Distance HDMI Output... -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification CABLE RANGE PIXEL VIDEO SUPPORTED TYPE CLOCK DATA VIDEO RATE RATE CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225MHz TMDS clock) 70 m >225 MHz... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130531MPM-CHDBT-1H3CE...
