Summary of Contents for CYP HDBT CHDBT-1H7CL

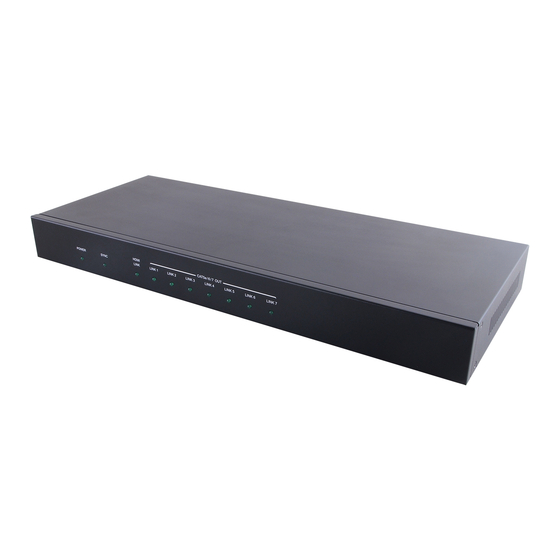

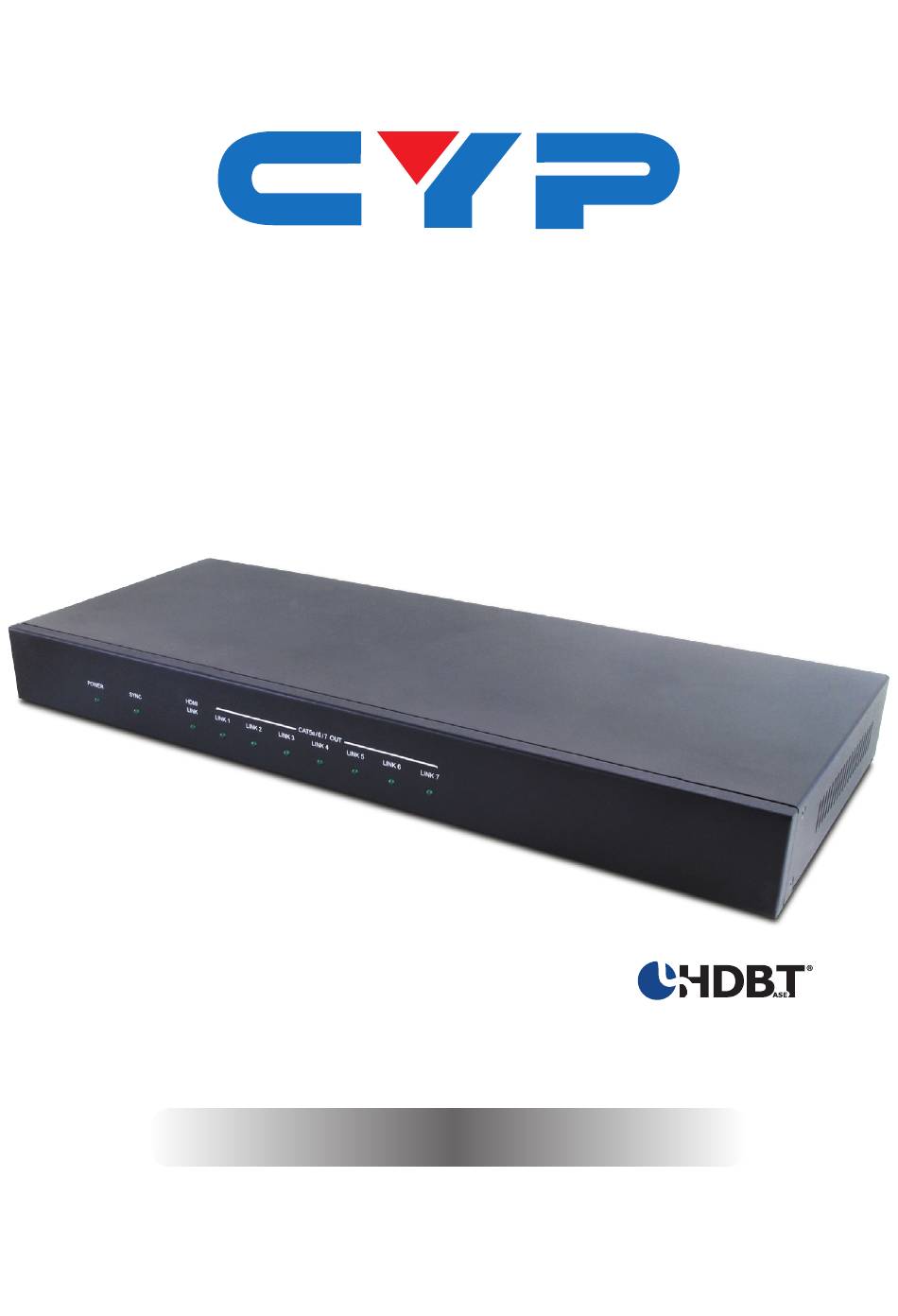

- Page 1 CHDBT-1H7CL 1×8 HDMI over HDMI and CAT5e/6/7 Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 6.3 IR Cable Pin Assignment ....5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over HDMI and CAT5e/6/7 Splitter can support resolutions up to 1080p Full HD, 4K × 2K timing, 3D and multi-channel digital audio formats to one HDTV and seven CAT5e/6/7 outputs. The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 60 meters. -
Page 7: Features
5. FEATURES • HDMI with 3D and 4K × 2K supported, HDCP and DVI compliant • Simultaneous HDMI and CAT5e/6/7 outputs • Supports one HDTV and seven CAT5e/6/7 outputs • Supports data rate from 250Mbps up to 3Gbps • Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K ×... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e / 6 / 7 OUT HDMI POWER SYNC LINK LINK 1 LINK 2 LINK 3 LINK 4 LINK 5 LINK 6 LINK 7 POWER LED: The LED will illuminate when connected to an active power supply. - Page 9 IR OUT: Connect the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. EDID STD/TV: The default setting is TV, when in this mode, the unit will detect the EDID settings of the display device connected to the CAT 5e/6/7 Output 1.
-
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Ground... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Local Display Blu-ray Player Power Supply HDMI Input CAT5e / 6 / 7 OUT HDMI IN HDMI OUT IR IN IR OUT DC 24V HDMI EDID SERVICE Output CAT 5e/6/7 Outputs HDMI Outputs IR Out/In HDTVs 1.5m 60°... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 Mbps/10.2 Gbps Input Ports 1×HDMI, 1×IR IN, 1×USB (Service only) Output Ports 1×HDMI, 7×CAT5e/6/7, 1×IR OUT HDMI Supported 480i~1080p@50/60 Hz, 1080p@24 Hz, 4K×2K Resolutions (3840×2160@30 Hz/4096×2160@24/25 Hz) & VGA~WUXGA (RB) HDMI Input 10m (1080p@8/12-bit), 10m (4K×2K) Cable Distance HDMI Output... -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification CABLE RANGE PIXEL VIDEO SUPPORTED TYPE CLOCK DATA VIDEO RATE RATE CAT5e/6/7 60 m ≤225 MHz ≤5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225MHz TMDS clock) 40 m >225 MHz... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130531MPM-CHDBT-1H7CL...
