- Page 1 CSDI-14 3G-SDI 1 by 4 Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 7. Connection Diagram ......3 8. -
Page 6: Introduction
1. INTRODUCTION The 3G-SDI 1 by 4 Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be split from a single SDI source to up four simultaneous SDI outputs while ensuring high bit rates of 2.970 Gbit/s to give you high bandwidth signal transmission without signal loss over long distances. -
Page 7: Operation Controls And Functions

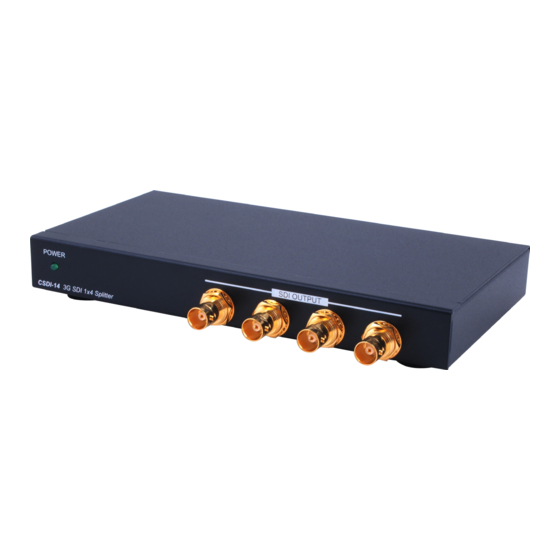

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SDI OUTPUT CSDI-14 3G SDI 1x4 Splitter Power LED The LED will illuminate green when the device is connected to a power supply. SDI OUTPUT Connect to up to four SDI TVs or monitors for simultaneous display or to another splitter to cascade the SDI signal to multiple displays or devices. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM SDI Camera SDI input Power Supply DC 5V SDI INPUT POWER SDI OUTPUT CSDI-14 3G SDI 1x4 Splitter SDI Outputs SDI to 1×4 HDMI Video Audio HDMI/ Audio Out HDMI Out Power Lock Lock DC 5V SDI INPUT... -
Page 9: Specifications
8. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission 2.970 Gbit/s and 2.970/1.001 Gbit/s Rates Input 1×BNC (SD/HD/3G-SDI) Output 4×BNC (SD/HD/3G-SDI) SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, 2.970 &... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97Gbps ≈ 3G HDMI High Definition Multimedia Interface Serial Digital Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
