Summary of Contents for CYP CDPS-UA1H10HS

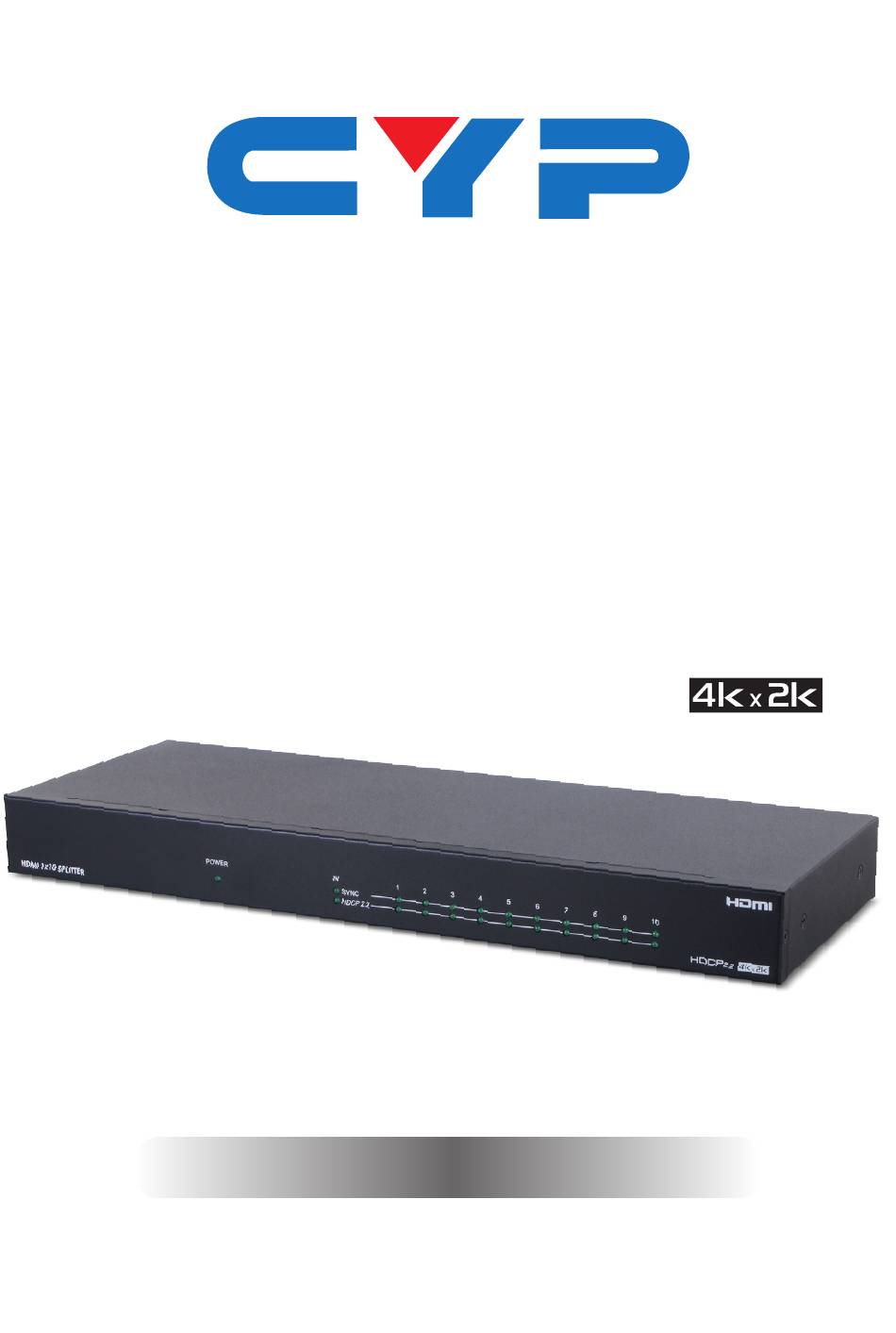

- Page 1 CDPS-UA1H10HS 1 by 10 HDMI Splitter with HDCP 2.2 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction

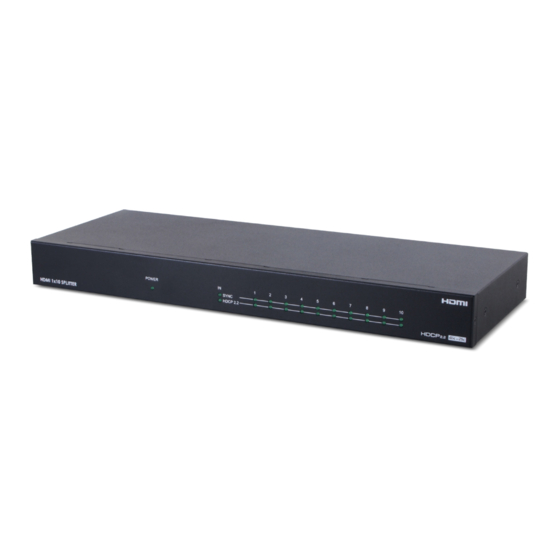

1. INTRODUCTION This 1 by 10 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to up to ten HDMI outputs. It provides high performance audio and video output through HDMI cables supporting resolutions up to 4K2K@60Hz_YUV420 and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. -
Page 7: Features
5. FEATURES • HDMI (with 3D & 4K2K support) and HDCP2.2/1.4 compliant • Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30, 3840x2160@50/60 YUV_420 & 4096x2160@24/25/30, 4096x2160@50/60 YUV_420) and PC resolutions up to WUXGA@60Hz(RB) • Supports HDMI data rates up to 9Gbps and ‘Deep Color’ up to 1080p/36-bit •... -
Page 8: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT SERVICE DC 5V SYS.RESET EDID ON OFF STD TV 3 4 5 HDMI IN: Connect to HDMI equipped source equipment such as a Blu-ray player, games console, Set-top Box or any HDMI equipped source device. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD/Blu-ray Player HDMI Input Power HDMI IN HDMI OUT SERVICE DC 5V Supply SYS.RESET EDID ON OFF STD TV Simultaneous HDMI Outputs HDTV Projector HDTV Projector HDTV Projector HDTV Projector HDTV Projector... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 1×HDMI, 1×USB (Service only) Output ports 10×HDMI HDMI I/O Cable Length 10m@1080p, 5m@4K2K Power Supply 5 V/6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions... -
Page 11: Supported Resolutions
8.2 Supported Resolutions Resolution Input Output 640×480@60/72/75 720×480@60 720×576p@50 800×600@60/72/75 1024×768@60/70/75 1280×720@50/60 1280×720p@60 1280×768@60 1280×800@60 1280×1024@60 1360×768@60 1600×1200@60 ... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
