- Page 1 CPRO-2E/4E/8E 1 by 2 / 1 by 4 / 1 by 8 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 7. Connection Diagram ......3 8. -
Page 6: Introduction
1. INTRODUCTION This range of high performance HDMI splitters provide one HDMI in to two, four or eight HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its 3Gbps bandwidth and the addtional features of the latest HDMI standards you can be sure of great HDMI distribution. -
Page 7: Operation Controls And Functions

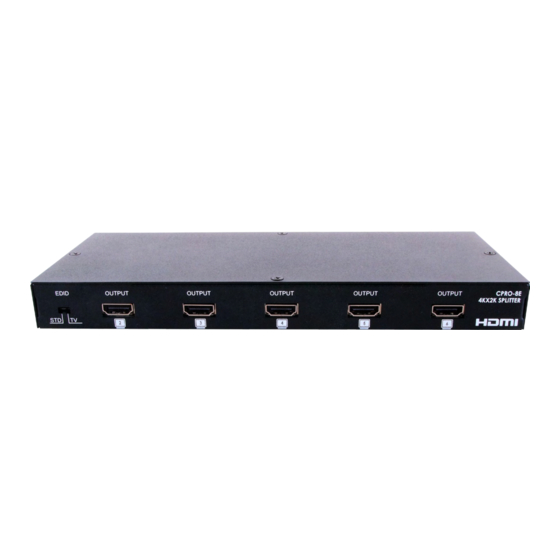

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Example Shown: 1 by 8 HDMI Splitter CPRO-8E EDID OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT 4KX2K SPLITTER EDID STD/TV: The default factory setting is TV, when in this mode, the unit will detect the first HDMI output source’s EDID setings and record in the unit's memory. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Simultaneous HDMI Input HDMI Outputs Power Supply SERVICE OUTPUT OUTPUT SYNC INPUT OUTPUT POWER Example Shown: DC 5V 1 by 8 HDMI Splitter CPRO-8E EDID OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT 4KX2K SPLITTER TV/Monitors... -
Page 9: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Input Port 1×HDMI (Female connector) 1×USB (Manufacturer use only) Output Ports 2, 4 or 8×HDMI (Female connector) Output Resolution 480i~1080p@50/60, 1080p@24/50/60, VGA~UXGA, 4K×2K@30 ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 103 mm (W)×155 mm (D)×25 mm (H)/2E 142 mm (W)×105 mm (D)×38 mm (H)/4E... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K×2K 3840×2160 HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 11 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPRO2E4E8E...
