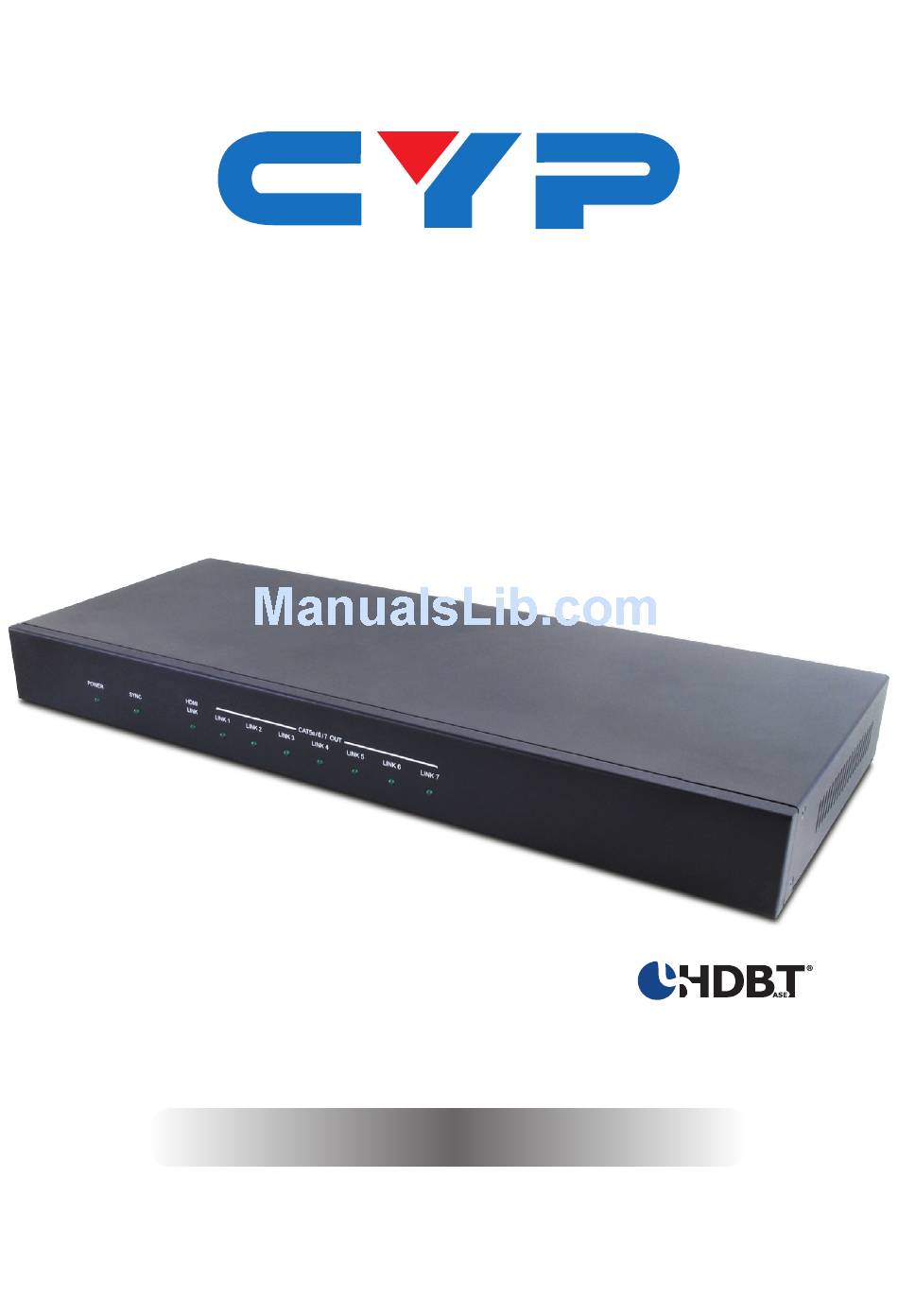

- Page 1 CHDBT-1H7CE 1×8 HDMI over HDMI and CAT5e/6/7 Splitter with PoE and LAN Serving Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 6.3 IR Cable Pin Assignment ....5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over HDMI CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi- channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Certified CAT5e/6/7 cables • HDBaseT™ Receivers (e.g. CH-507RX or CH-1109RX) 5. FEATURES •... -
Page 8: Operation Controls And Functions

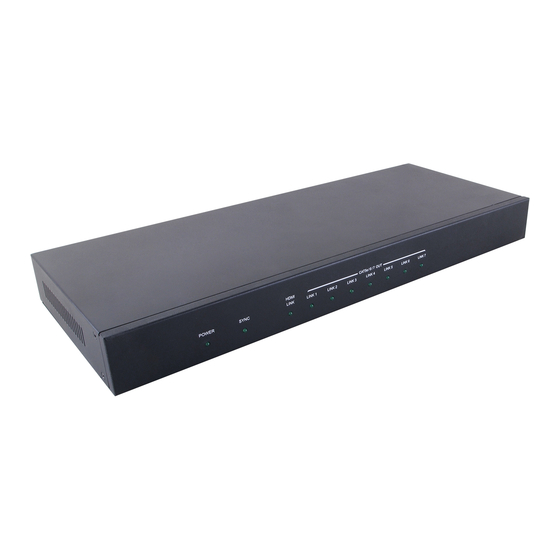

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e / 6 / 7 OUT HDMI POWER SYNC LINK LINK 1 LINK 2 LINK 3 LINK 4 LINK 5 LINK 6 LINK 7 POWER LED: The LED will illuminate when connected to an active power supply. - Page 9 or games console to the LAN port of a receiver for that device to share the network/internet access. Warning: DO NOT connect the LAN connection with any of the CAT5e/6/7 outputs, doing so may trigger a power shut down and may damage the device.
-
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Ground... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Router Local Display (with Internet Connection) Blu-ray Player Power Supply HDMI Input CAT5e / 6 / 7 OUT HDMI IN HDMI OUT IR IN IR OUT DC 24V EDID SERVICE HDMI Output CAT 5e/6/7 Outputs (PoE for Compatible Receivers) IR2 Blaster... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 Mbps/10.2 Gbps Input Ports 1×HDMI, 1×LAN, 1×IR IN, 1×USB (Service only) Output Ports 1×HDMI, 7×CAT5e/6/7, 1×IR OUT HDMI Supported 480i~1080p@50/60 Hz, 1080p@24 Hz, 4K×2K Resolutions (3840×2160@30 Hz/4096×2160@24/25Hz) & VGA~WUXGA (RB) HDMI Input 10m (1080p@8/12-bit), 10m (4K×2K) Cable Distance HDMI Output... -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification CABLE RANGE PIXEL VIDEO SUPPORTED TYPE CLOCK DATA VIDEO RATE RATE CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225MHz TMDS clock) 70 m >225 MHz... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130531MPM-CHDBT-1H7CE...
