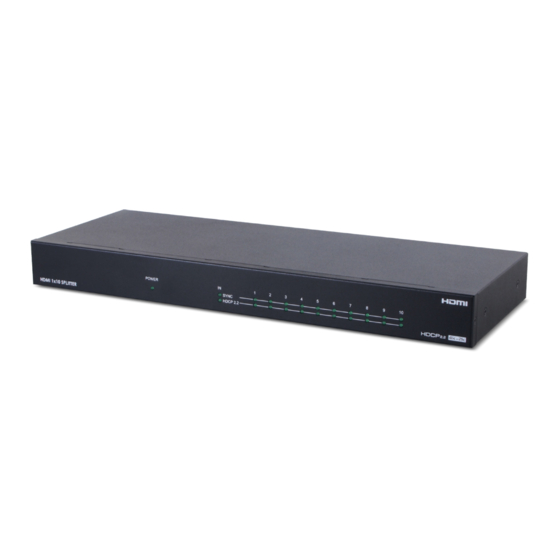

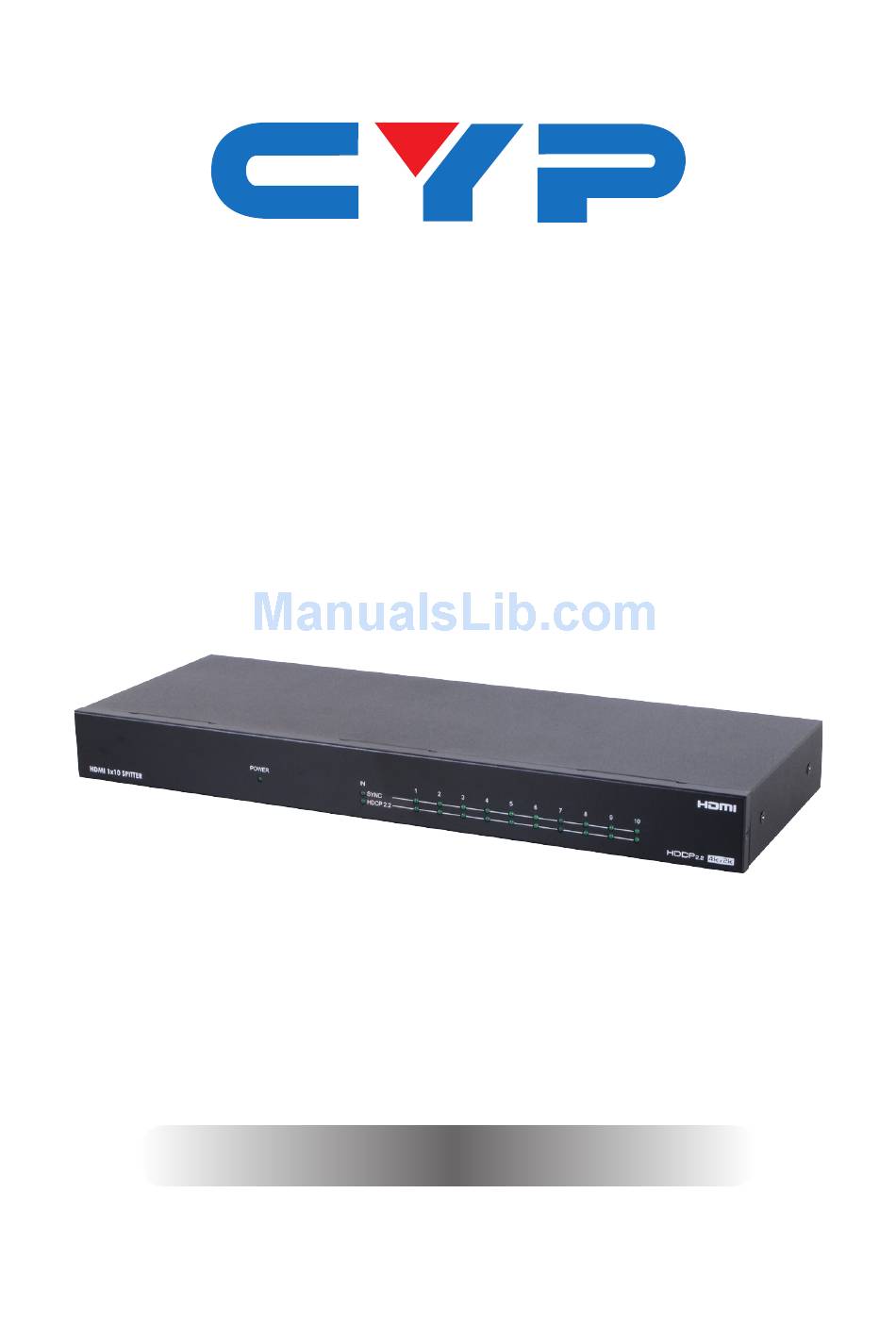

- Page 1 CDPS-UA1H10HS 1 By 10 HDMI UHD Splitter Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 5: Introduction
1. INTRODUCTION This 1 by 10 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to ten HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz_YUV420 resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. -
Page 6: Features
5. FEATURES • HDMI (with 3D & 4K2K supported) and HDCP2.2/1.4 compliant • Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30, 3840x2160@50/60 YUV_420 & 4096x2160@24/25/30, 4096x2160@50/60 YUV_420) and PC resolutions up to WUXGA@60Hz(RB) • Supports HDMI data rate up to 9Gbps and ‘Deep Color’ up to 1080p/36-bit •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SYNC HDCP 2.2 HDMI 1x10 SPITTER POWER LED: This LED will illuminate in green when the device is power On. SYNC IN: This LED will illuminate when the device is connected with active source signal. -
Page 8: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT SERVICE DC 5V SYS.RESET EDID ON OFF STD TV HDMI IN: Connect from source equipment such as Blu-ray/DVD/ PS3 players, Set-Top-Box or any HDMI equipped source device. HDMI OUT 1~10: Connect to HDMI TV/display or HD Amplifier for output video and/or audio. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI IN HDMI OUT SERVICE DC 5V SYS.RESET EDID ON OFF STD TV HD TV or Amplifier... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 300MHz / 9Gbps Input Ports 1 x HDMI 1 x USB (Service only) Output ports 10 x HDMI HDMI I/O Cable 10M/1080p Length 5M/4K2K Power Supply DC 5V/6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions... - Page 11 DVI/HDMI Supported Resolutions Input Output 640x480@60/72/75 720x480@60 720x576p@50 800x600@60/72/75 1024x768@60/70/75 1280x720@50/60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50/60 1920x1080i@60 1920x1080p@24/25/30/50/60 1920x1200@60(RB) 3840x2160@24/25/30 3840x2160@50/60_YUV420 4096x2160@24/25/30 4096x2160@50/60_YUV420...
- Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPSUA1H10HS...
