Template

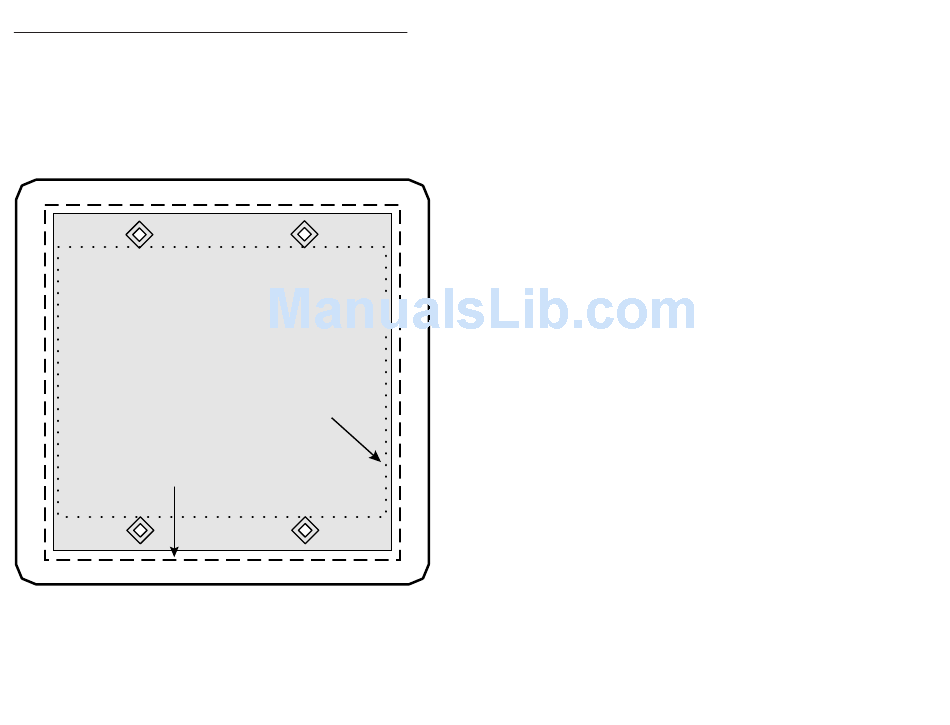

Use the template as a guide to mark and cut the hole in the wall
or furniture through which the SCP 100P will be installed. The
template includes the recommended 0.1" (0.25 cm) clearance on
all sides of the electrical wall box to allow room for the raised
areas surrounding the knockouts. See chapter two for details on
installing the SCP 100P.
The light gray area represents the layout of the
electrical box (3.75"H x 3.75"W) against the rear
of the SCP 100P front panel.
To install the control panel without a wall box,
The dashed line indicates the cut-out
area (3.95"H x 3.95"W) for installing
the electrical wall box.
SCP 100P • Specifications, Parts, Accessories, Dimensions
A-4
use the cut-out area (3.00"H)
indicated by the dotted line.
