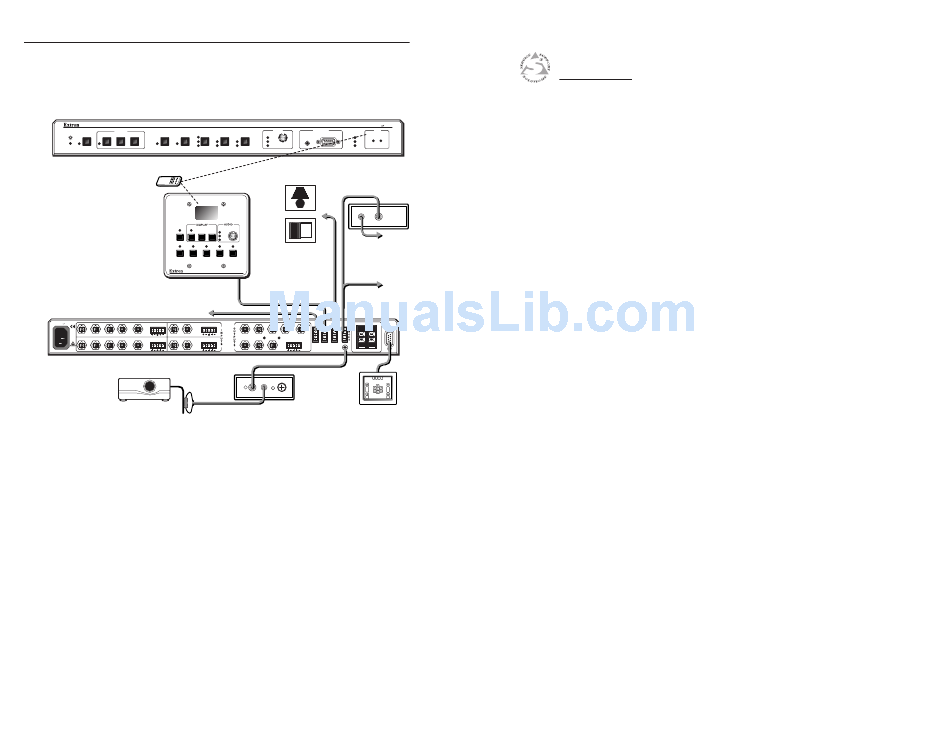

Application diagram

Below is an example of a typical installation of an SCP 100P
control pad and a System 5cr Plus switcher.
DISPLAY
ROOM
POWER MUTE MODE PC1 PC2 INPUT 3
PC
VID
Y/C
Front
IR 40 Remote
ROOM POWER MUTE
PC1 PC2 INPUT 3
SCP 100P
Control Panel
To Second Control Pad
100-240V 1.3A
R G B H/HV V L R V/Y C
PC 2 VID 1
INPUT 3 VID 2
L R
R G/Y B/C H/HV V C
V/Y
VID
50/60 Hz
Rear
LCD Projector
1-6 SCP 100P • Introduction and Installation
SYSTEM 5
AUDIO PC1 INPUT IR
AUDIO COMPUTER
VID1 VID2
MAX. TX RX LEARN
VID VID CLIP CONFIG
Y/C Y/C MIN. VOLUME RETRY
LIGHTING
MODE
VOLUME
MAX.
CLIP
MIN.
VID1 VID2 Optional
SHADES/DRAPES
IR Broadcaster
Room Control
or
SCP 100P
IR Emitter
AMPLIFIED OUT RS-232
AUX 1 AUX 2 RELAY COMM.
L R R G B H/HV V
L L
LINE OUT
L R L R R R
C VID
Y
DISPLAY PWR
SENSOR
Power Sensor RS-232 Control
SCP 100P
Plus
2
Chapter Two
Operation
Front Panel Features
