Specifications; Included Parts; Accessories; Panel Dimensions - Extron electronics SCP 100P User Manual

Specifications, Parts, Accessories, Dimensions
Specifications, Parts, Accessories, Dimensions, cont'd

Specifications

Control/remote — control pad
IR controller module ......... IR 401 (optional)
General
Power ................................... 12VDC, at 60 mA, from the System 5cr Plus switcher
Temperature/humidity .... Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, non-
condensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, non-
condensing
Rack mount ......................... No, but furniture/wall mountable with included
faceplates and electrical boxes or optional mounting
bracket kits or AAP wall plates.
Enclosure type .................... Metal
Enclosure dimensions
Plate ................................ 4.5" H x 4.6" W x 0.1" D (2 gang)
11.4 cm H x 11.7 cm W x 0.3 cm D
Box .................................. 3.75" H x 3.63" W x 3.5" D
9.5 cm H x 9.2 cm W x 8.9 cm D
Boards ............................. 2.9" H x 3.5" W x 0.8" D
7.4 cm H x 8.9 cm W x 2.0 cm D
(Allow at least 1.5" (3.8 cm) depth in the wall or furniture.
Depth excludes connectors and knobs.)
Product weight ................... 0.3 lbs (0.1 kg)
Shipping weight ................. 3 lbs (1.4 kg)
Vibration .............................. ISTA/NSTA 1A in carton (International Safe Transit
Association)
Listings ................................ UL, CUL as a component of the System 5cr Plus
Compliances ....................... CE as a component of the System 5cr Plus
MTBF ................................... 30,000 hours
Warranty ............................. 3 years parts and labor
Specifications are subject to change without notice.

Included Parts

These items are included in each order for an SCP 100P:
Included parts
SCP 100P (grey)
SCP 100P (black)
or
SCP 100P (white)
or
SCP 100P User's Manual
3.5 mm, 5-pole captive screw connectors
2-gang electrical box
A-2 SCP 100P • Specifications, Parts, Accessories, Dimensions
Part number
60-331-01
60-331-02
60-331-03
68-390-01
10-319-10

Accessories

These recommended items are available from Extron:
Cable/accessory
Comm-Link cable (50')
Comm-Link cable (100')
Comm-Link cable (200')
Comm-Link cable (400')
2-gang mounting bracket

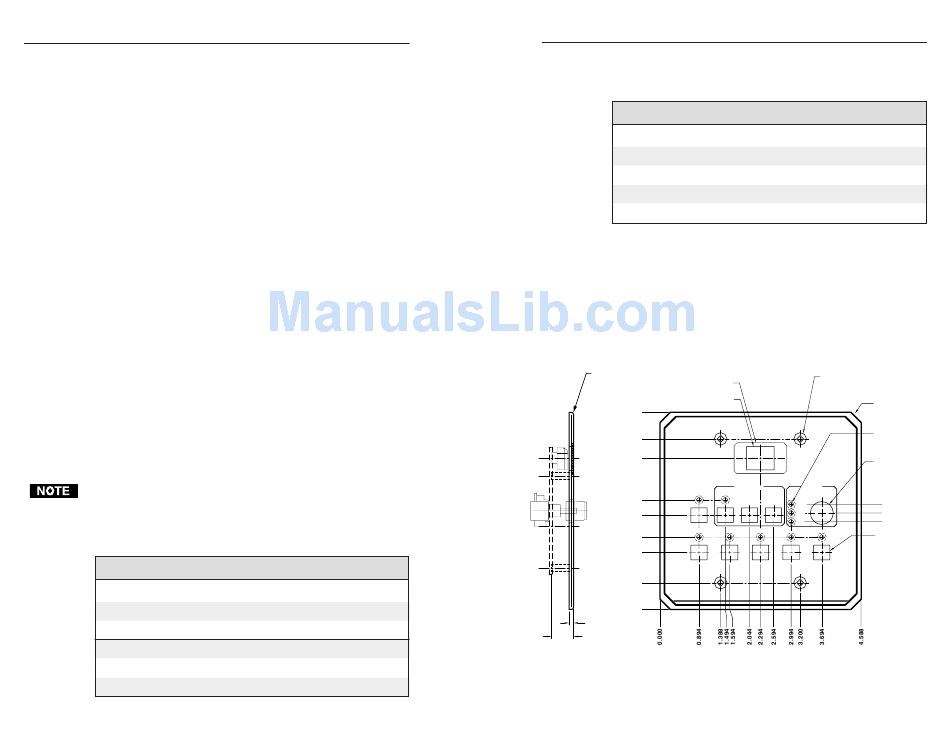

Panel Dimensions

The diagram below has been reduced to fit on the page. All
dimensions are given in inches. The symbol "ø" indicates a
diameter.
0.06
" RADIUS
RECT. 0.700 x 1.200
AROUND THE
0.40
RECESS WITH
TOP OF THIS
0.06
R AT 4 CORNERS
EDGE.
0.536 x 0 .630
RECT. THRU
4.500
3.891
A
3.450
ROOM POWER
2.500
2.150
PC1 PC2
1.650
1.300
0.609
A
Extron
0.000
0.500
SCP 100P • Specifications, Parts, Accessories, Dimensions
Part number
29-461-01
29-461-02
29-461-03
29-461-04
70-086-01
ø.160 THRU WITH
ø.290 x 90˚ C'SINK
(4 PLACES CODED A)
4 — R 0 .25
ø.125 THRU WITH
ø.20 x 90˚ C'SINK
ON FAR SIDE
A
( 10 PLACES)
ø.520
THRU
DISPLAY AUDIO
MUTE MODE VOLUME
2.400
MAX.
2.200
CLIP
2.000
MIN.
INPUT 3 VID1 VID2
RECT.
0.331 x 0.371
THRU ( 9 PLACES)
A
SCP 100P
A-3
