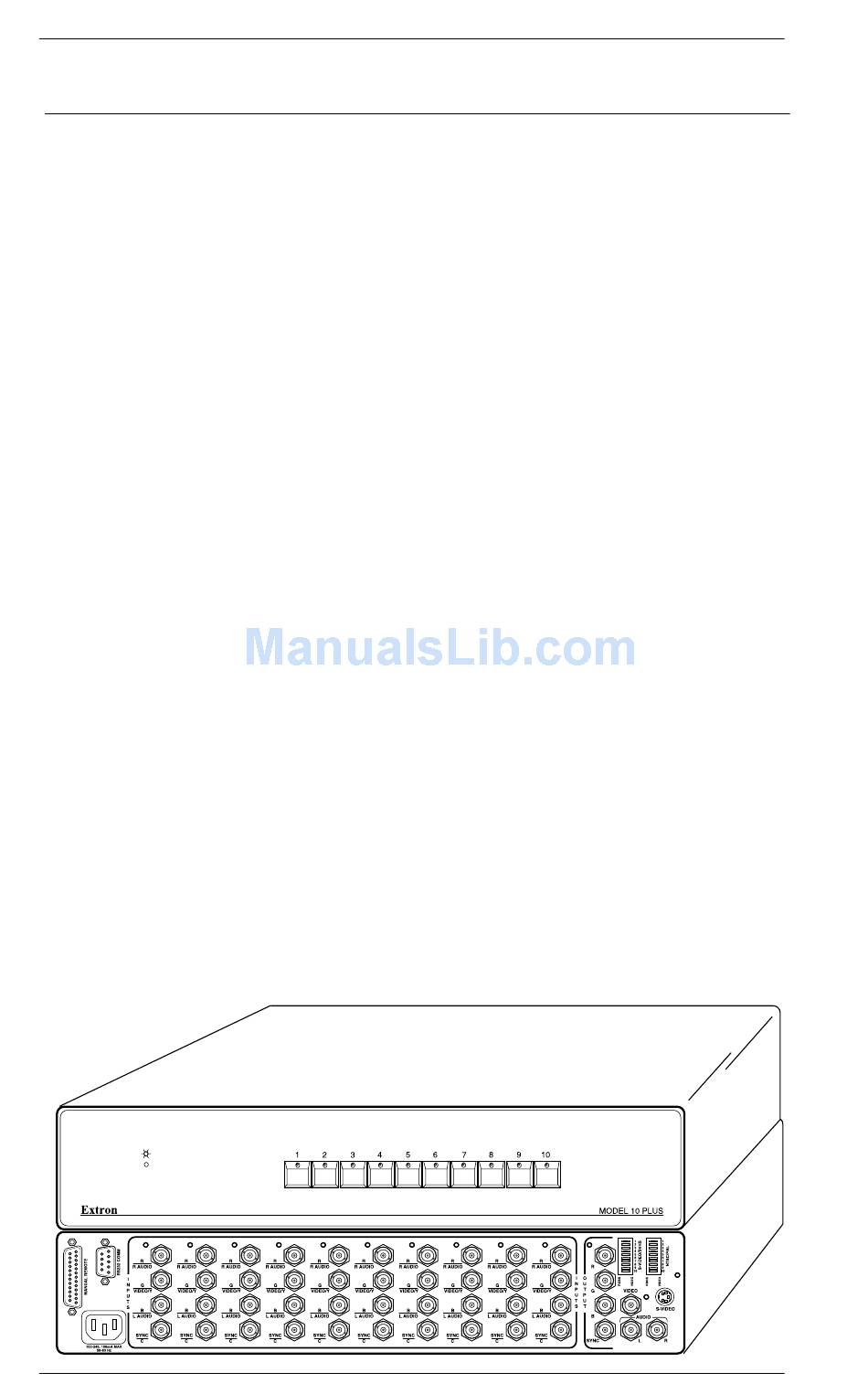

Model 8/10 PLUS Introduction and Specifications

Specifications

General
Operation Temperature .... 0°-50° C
Storage Temperature .... -20°-70°
MTBF Demonstrated .... 30,000 Hours
Approvals .... UL Listed, CSA, CE
Dimensions .... 17" W x 9.25" D x 3.31" H
.... 43.2cm W x 23.5cm D x 8.4cm H
Shipping Weights .... 13.0 lbs.
.... 5.9 kg
Power Supply .... Internal 100-240 VAC, 50/60 Hz
Warranty .... 2 years parts and labor
.... (See warranty info-last page)
Video
Bandwidth .... 300 MHz
Crosstalk at 10 MHz .... -35 db (typical)
Isolation at 10 MHz .... 55 db (typical)
Return loss at 10 MHz .... 25 db
Input Impedance .... 75 Ohms
Output Impedance .... 75 Ohms
Termination Impedance .... 75 Ohms
Sync Input Impedance .... 510 Ohms
Gain .... None
Connectors .... Input Type
.... BNC (Female)
.... Output Type
.... BNC (Female)
.... 4 Pin Mini-DIN (S -Video)
1 2 3 4 5 6 7 8 9 10
Page 1-3 Extron • Model 8 PLUS & Model 10 PLUS Switchers • User's Manual
