Model 8/10 PLUS Operation and Configuration

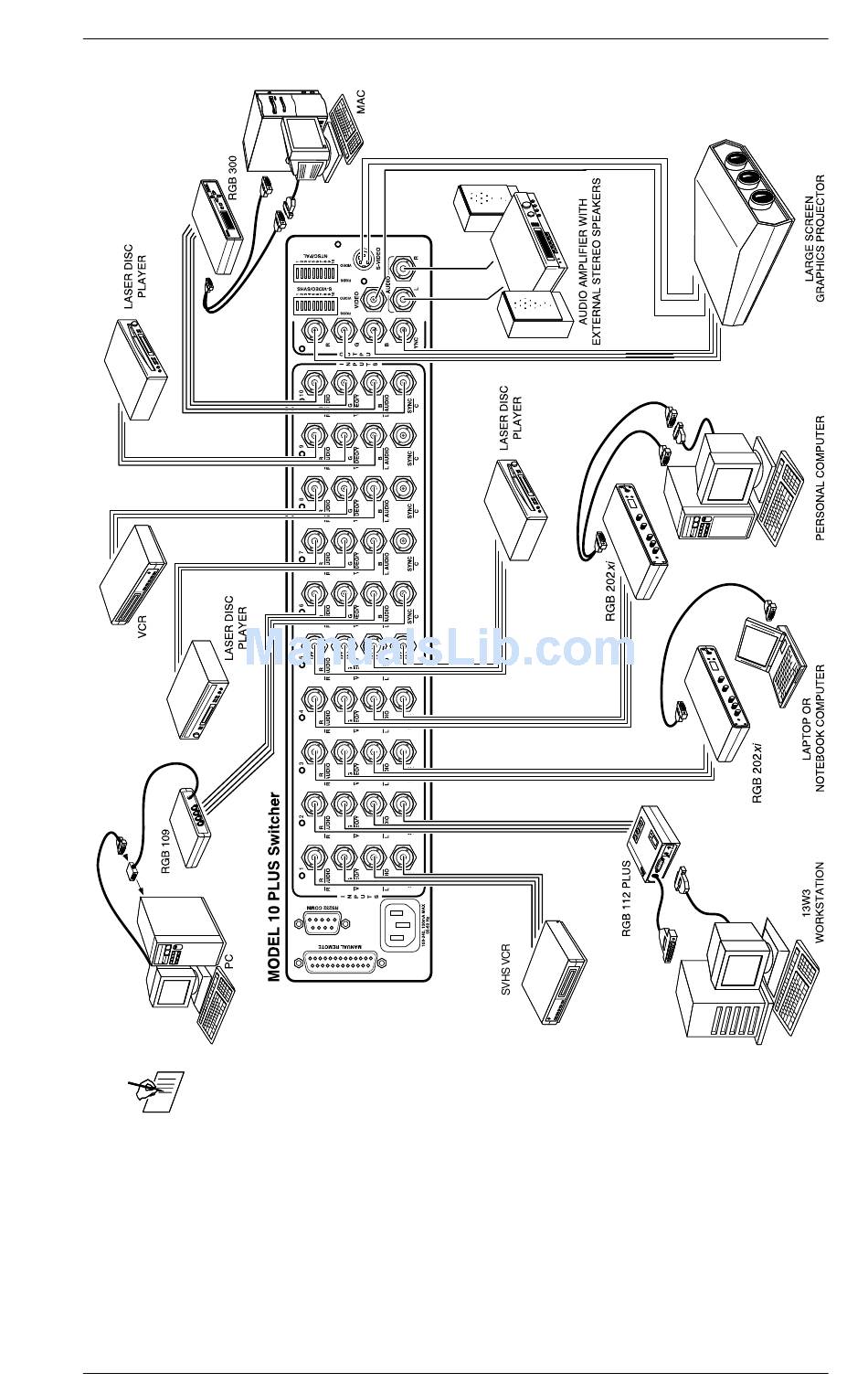

_ The S-Video output from the SVHS VCR would most likely

require a user supplied S-Video to BNC adapter to connect to

the Model 8 PLUS or Model 10 PLUS switcher. The Extron

Part Number for an adapter of this type is 26-353-01.

Composite video outputs and audio outputs from Laser Disc

Players and VCRs will most likely require RCA to BNC

adapters. An adapter of this type can generally be purchased

at your local electronics store.

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User's Manual

Page 2-4
