Configuring Features and Options
Rack Mounting
The Model 8 PLUS and Model 10 PLUS switchers can be
rack-mounted using an optional 19" 2U Universal Rack Shelf,
one switcher per shelf. The Extron Part Number for the
Universal Rack Shelf is 60-032-01.
The installation procedure follows.
#10 Beveled
Washers

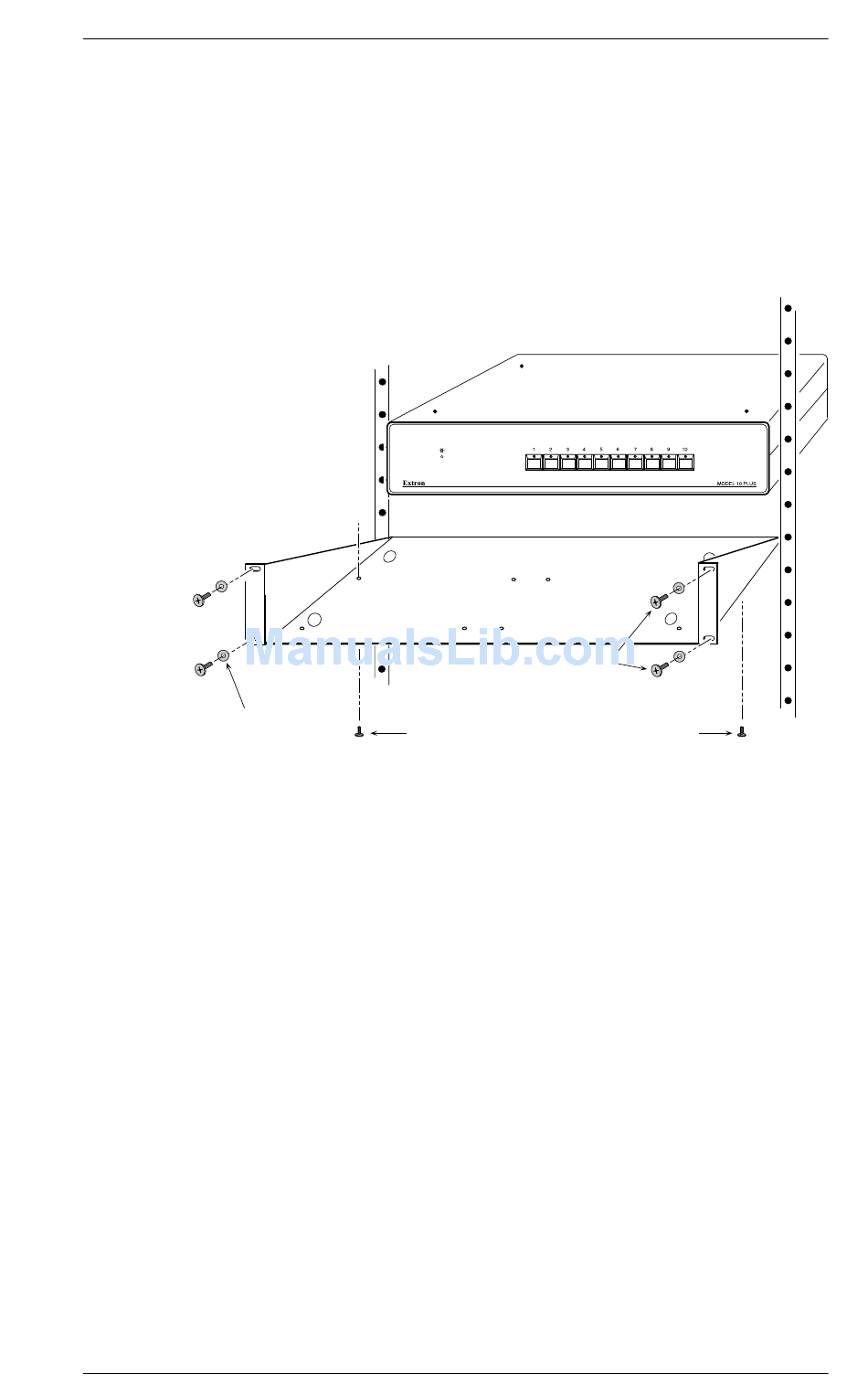

Installing the 2U Shelf in a Rack
Use the four 10-32 x 3/4 black screws and #10 black beveled
washers to mount the 2U Shelf in the Rack.
Installing the Model 8/10 PLUS Switcher on the Shelf
The 2U Universal Rack Shelf is designed to enable the Model
8 PLUS or Model 10 PLUS Switcher to set on the shelf with
the switcher's four feet extending through four holes. It is not
necessary to attach the switcher to the shelf with screws.
Upon completion of this procedure, return to the Installation
Guide in Chapter 2 and continue with the next step in the
procedure.
Extron • Model 8 PLUS & Model 10 PLUS Switchers • User's Manual
10-32 x 3/4
Screws
Use two screws to secure switcher to shelf
