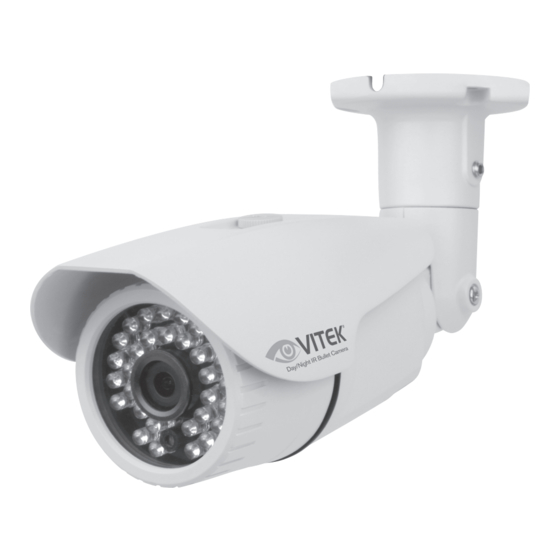

Vitek VTC-IR302FN User Manual

Envi 2.0 megapixel wdr day/night ir bullet camera with 120’ range
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

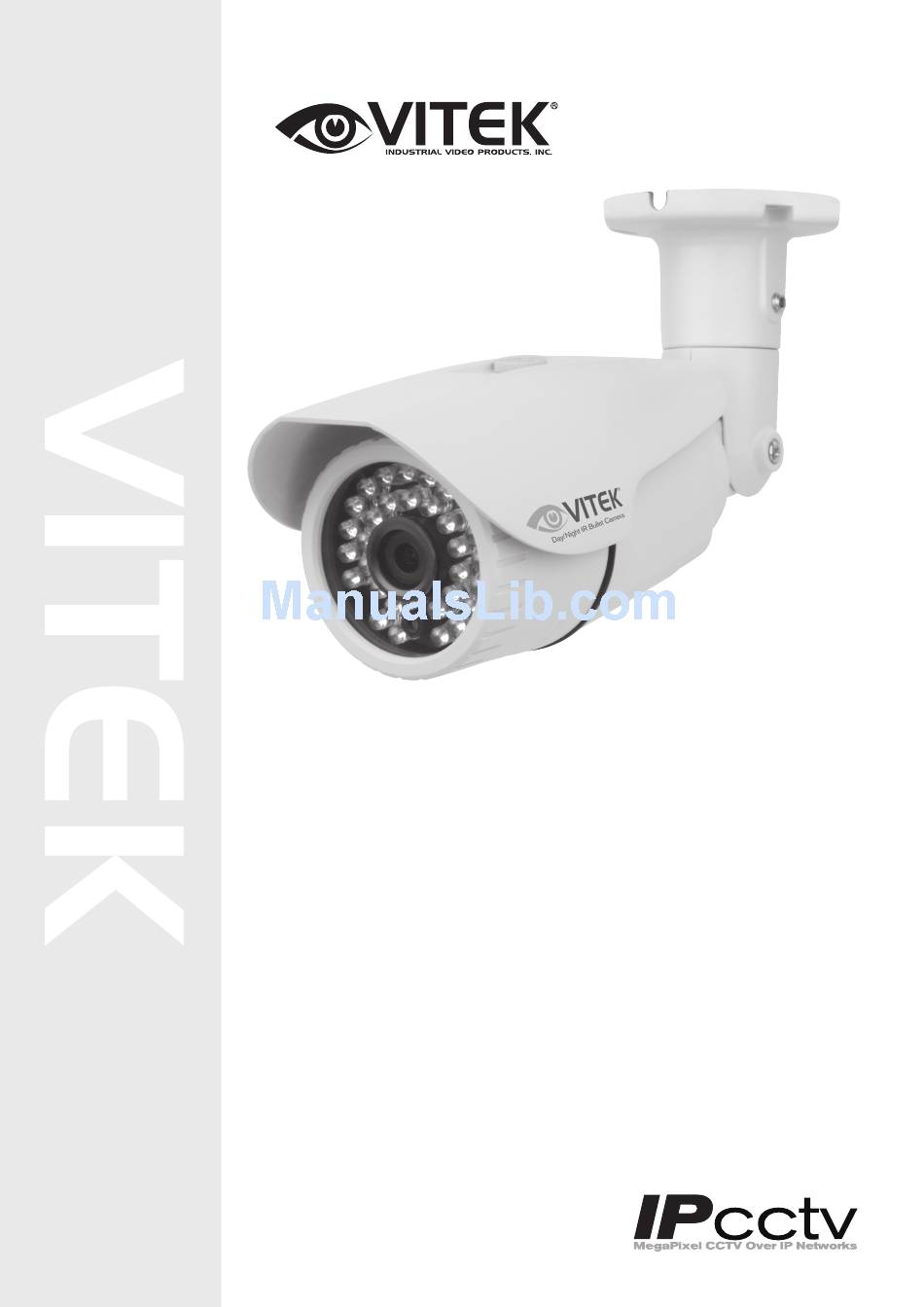

VTC-IR302FN
ENVI 2.0 MegaPixel WDR Day/Night
IR Bullet Camera with 120' Range
• 1/2.9" Sony® Exmor™ Progressive Scan CMOS Sensor
• Up to 30fps live view @ 1920x1080p
• Built-in Mega Pixel Fixed 3.6mm Lens
• 30 850nm Infrared LEDs with 120' IR Range
• Auto True Day Night (TDN) with Dual Filter Switch for no focus shift at night
• WDR (Wide Dynamic Range)
• 3D-DNR Noise Reduction
• 16:9 Video format
• H.264/MJPEG Dual Streaming
• Minimal Latency w/Max 16 User Connections
• Onvif Profile S Compatibility
• MicroSD Card Slot supporting up to 64GB cards for Onboard EDGE Recording
and Playback
• Motion Detection, Privacy Masking & Highlight Masking
• Gasket Sealed with an IP66 Weather Resistance Rating
• 12VDC & PoE (Power over Ethernet) Operation
Specifications & installation procedure subject to change without notice.
Visit www.vitekcctv.com for the most current information available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-IR302FN and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTC-IR302FN

Summary of Contents for Vitek VTC-IR302FN

  • Page 1 VTC-IR302FN ENVI 2.0 MegaPixel WDR Day/Night IR Bullet Camera with 120’ Range • 1/2.9” Sony® Exmor™ Progressive Scan CMOS Sensor • Up to 30fps live view @ 1920x1080p • Built-in Mega Pixel Fixed 3.6mm Lens • 30 850nm Infrared LEDs with 120’ IR Range •...

  • Page 2: Table Of Contents

    ENVI Series: VTC-IR302FN Table of Contents 1. Box Contents ........................6 2. Included Accessories ......................6 3. VTC-IR302FN Layout ......................7 3.1. External View ......................7 3.2. Internal View ......................7 4. VTC-IR302FN Installation ....................... 8 4.1. Mounting The Camera ....................8 4.2.
  • Page 3 ENVI Series: VTC-IR302FN 12.2. Date & Time ......................37 12.3. Admin Password ....................... 38 12.4. Access Control ......................38 12.5. User Registration ...................... 38 12.5.1. Add ....................... 38 12.5.2. Edit ....................... 40 12.5.3. Delete ......................40 13. Network Configuration ......................40 13.1.
  • Page 4 ENVI Series: VTC-IR302FN 17.4. Factory Default ......................96 17.5. System Update ......................97 18. ENVI Series Viewer ......................100 18.1. Introduction ......................100 18.2. Key Features ......................100 18.3. System Requirement for PC ..................100 19. Installing and Uninstalling ....................101 19.1.
  • Page 5 ENVI Series: VTC-IR302FN 27.1. EN-V-R Configurator User Interface ................121 27.2. Searching for IP Devices ..................122 27.3. Registering IP Devices ..................... 124 27.4. Viewing Live Video ....................126 27.5. Recording Video ..................... 128 28. ENVI Smart Player ......................132 28.1.
  • Page 6 ENVI Series: VTC-IR302FN 35. IP-CCTV DNS Registration ....................161 36. IP-Device Registration ...................... 166 36.1. IP-Device Registration (Manual) ................167 36.2. IP-Device Registration (Automatic) ................169 IP-Device Modification ....................171 36.3. IP-Device Deletion ....................173 36.4. IP-Device Homepage ....................173 36.5.

  • Page 7: Box Contents

    ENVI Series: VTC-IR302FN 1. Box Contents 1) VTC-IR302FN IP Infrared Bullet camera 2) Mounting Accessories 3) ENVI Series CD & Mounting Template 2. Included Accessories 3mm Hex L-wrench Qty: 1 Wall mounting screws Qty: 3 Anchors If necessary, use the anchor to help secure the self tapping screws.

  • Page 8: Vtc-Ir302Fn Layout

    ENVI Series: VTC-IR302FN 3. VTC-IR302FN Layout 3.1. External View ⓑ ⓒ ⓓ ⓐ ⓔ ⓕ ⓖ ⓗ ⓘ ⓐ Window ⓑ Sunshield ⓒ Fixing screw for Sunshield ⓓ Front cover ⓔ Body ⓕ Mount Rotation Adjustment ⓖ Mount Tilt Adjustment ⓗ...

  • Page 9: Vtc-Ir302Fn Installation

    ENVI Series: VTC-IR302FN 4. VTC-IR302FN Installation • Make sure the power is not applied before the installation. 4.1. Mounting The Camera 1. Drill 3 holes into the wall or ceiling using the supplied template 2. Insert the anchors into the drilled holes 3.

  • Page 10: Connections

    ENVI Series: VTC-IR302FN 4.2. Connections Ethernet Cable 12 VDC Power Supply 1. Power Depending on the type of installations, apply power to the camera by one of the three options below. a) Via Ethernet – Use only with POE switch (100 Meters max distance) b) 12VDC - Use with 12VDC 1A 2.

  • Page 11: Removable Storage

    ENVI Series: VTC-IR302FN 4.4. Removable Storage For recording directly on the camera you will need to install a MicroSD card, this will allow you to play video directly from the camera. a) With the power disconnected insert the MicroSD memory card as shown below (the MicroSD card will need to be formatted.
  • Page 12 ENVI Series: VTC-IR302FN 5. To assign an automatic IP address to this camera within the network, click the “Automatic IP Setup” icon 6. Verify the Automatic IP address provided, enter the default password root and then click Set as shown below.
  • Page 13 ENVI Series: VTC-IR302FN Connect Product Homepage b) Click over the icon “ ” Live View” “Admin” 8. From the Home Page, you can “ or administrate the camera. On Live View you will be able to see live video from your camera.

  • Page 14: Vtc-302Fn Features

    ENVI Series: VTC-IR302FN 6. VTC-302FN Features 1.3 & 2.0 MegaPixel Vandal Resistant Day/Night IR Bullet Cameras with 150’ Range • 1/2.9” Sony® Exmor™ Progressive Scan CMOS Sensor • Up to 30fps live view @ 1920x1080p • Built-in Mega Pixel Fixed 3.6mm Lens •...

  • Page 15: Ip Installer: Introduction

    Installing IP Installer If the program is started from the CD supplied with Vitek products, insert the CD in to CD/DVD tray and check the installation file. If it is download or copied from the Internet or any other media, locate the file from the PC’s hard drive.
  • Page 16 ENVI Series: VTC-IR302FN You may be prompted to continue running the installation program. Click Yes button, then the following window will be shown on the screen. To continue the installation, click Next. The following window will be displayed for location to...
  • Page 17 ENVI Series: VTC-IR302FN The default location for installation is C:\Program Files\IP Installer. It is recommended to install in this folder, if you want to change it to a different location, click the Browse button to choose location. Now click the Install button. You will see the progress of the install as shown below.

  • Page 18: Uninstalling Ip Installer

    ENVI Series: VTC-IR302FN When the files are done copying, the following window will be shown. Click the Finish button to complete the installation. 8.2. Uninstalling IP Installer If you want to remove the IP Installer program from your PC, click Start > All Programs > IP Installer >...
  • Page 19 ENVI Series: VTC-IR302FN Click on the Yes button, then the following window will be shown on the screen. Click on the Next button and you will see the following window. Click on the Uninstall button to start removing the IP Installer program from your computer.

  • Page 20: Using Ip Installer

    ENVI Series: VTC-IR302FN Click on the Finish button to close the window 9. Using IP Installer 9.1. Starting the Program Once IP Installer program has been installed on your computer, a shortcut icon...

  • Page 21: Search Product

    9.2. Search Product Make sure that your Vitek products are powered and connected to the network, and then click the Search Product button. A status window will pop up to show the progress of the search. Wait until it reaches 100%, or you may press the Cancel button to stop the...
  • Page 22 ENVI Series: VTC-IR302FN After searching is completed 100%, the IP Installer program will display the IP devices found. If you want to clear the list of the IP Devices from the window, click Clear Product List button from the Main Toolbar.
  • Page 23 ENVI Series: VTC-IR302FN Manual Network Setup Configuring the network parameters of the devices in the list can be started either by highlighting and right clicking mouse button or by clicking Manual IP Setup button on the main Toolbar. When one IP device is selected, the following screen will appear MAC Address MAC address of the selected device is shown.
  • Page 24 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not.  Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 25: Automatic Network Setup

    HTTP port number of the IP device for web access to homepage. Password Password for the IP device.(Default password for Vitek products is “root”) If you click Apply to all button after changing just a field of one IP device, the remaining IP devices will have the same value for that parameter.
  • Page 26 (IP Address, Netmask, Default Gateway, DNS1, DNS2) Authentication Password for the IP device. (Default password for Vitek products is “root”) (Admin Password) Select whether the configured contents is to be saved in the Camera memory or not.

  • Page 27: Using Dhcp Server

    ENVI Series: VTC-IR302FN Note: If your network has more than one IP address Zone at the same time, the confirmation window will be displayed as below. You need to choose the one you are going to use for your IP devices.

  • Page 28: Using Pppoe

    ENVI Series: VTC-IR302FN For setting up other fields on the setup window, refer to Section 0 Manual Network Setup on page 22. After filling the fields with appropriate values, click Set button to apply the changed values to IP device. If you don’t want it, click Cancel button to restore the previous values.
  • Page 29 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not.  Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 30: Updating Firmware

    IP Installer window. In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you could see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 31 ENVI Series: VTC-IR302FN After clicking OK the following window will be displayed. Note: Do not CLOSE window until completed, to avoid permanent damage to the camera. You can also select multiple IP devices at the same time, and have them start firmware updating in a single step.

  • Page 32: Filter Configuration

    Configuration button on the Toolbar, then the following window will show up on the screen. The first six HEX characters are already filled in with 1C:7C:45, which is the MAC prefix for Vitek products. Put a checkmark in MAC Address or IP Range to set the range for searching.

  • Page 33: Live View

    ENVI Series: VTC-IR302FN To start searching with this condition now, click Search Product button on the toolbar. The program will start searching and show the result after a moment. 9.8. Live View Once searching and configuration on IP devices are done, you should make sure that the IP devices are accessible with the new settings.
  • Page 34 ENVI Series: VTC-IR302FN Click Live View on the top right of the window, then ENVI Series Viewer ActiveX program will be started. If you have not installed the ENVI Series Viewer program before, it will ask for a confirmation to install it. Allow it and you will be able to find out whether the configuration by IP Installer program is properly done.

  • Page 35: Envi Admin Menu

    10. ENVI Admin Menu After connecting to a VITEK ENVI Series camera via web browser, you’ll find the web page as shown below. The upper rightmost item of the menu is Admin; this is where you can set up most of the features in the VITEK camera you’re connected to.

  • Page 36: Admin Menu Structure

    ENVI Series: VTC-IR302FN 10.2. Admin Menu Structure The following table shows the hierarchy of the Admin menu structure that we’re going to deal with in this manual. 11. Quick Configuration In Quick Configuration, you will be able to set up many of the essential parts of the configuration in a simple manner without going into details.

  • Page 37: Step 4: Ipcctvdns.com

    11.5. Step 5: Recording Configuration Vitek cameras with MicroSD card can be configured for recording options in this section. Refer to Section 16.1 SD / MicroSD Card Configuration on page 89 to see how to set up. 11.6.

  • Page 38: Date & Time

    ENVI Series: VTC-IR302FN As an administrator, you can change the name of the camera/ server, but other values are not allowed to be changed. To change the camera/ server name, enter a new name in the Server Name field. You may use up to 21 alphanumeric or up to 10 Unicode characters. Tab or any other special characters are not allowed.

  • Page 39: Admin Password

    Apply button to put it into effect. Because you have replaced the password with a new one, the existing network connection made with old password to VITEK camera is lost now. You will have to reconnect to the VITEK camera using new password.
  • Page 40 VITEK cameras may have multiple VS Modules registered in it. When you click on any of the Enable check boxes, other fields in that row are now enabled to select.

  • Page 41: Edit

    ENVI Series: VTC-IR302FN  VS Module ID: VS Module is a network device that has been registered in the VITEK camera  Camera No.: Among the cameras of the VS Module select one to set up. (between all,1or2) (selected models) ...

  • Page 42: Static Ip Configuration

    ENVI Series: VTC-IR302FN 13.1. Static IP Configuration Select Network Configuration under Network configuration For static IP, select Static IP and input IP address, NetMask, Gateway, DNS1, DNS2 and click apply to save settings. After apply, program will ask to close web browser for updates, which will take 20~30 seconds.

  • Page 43: Pppoe Configuration

    In this configuration, you set up the HTTP port for VITEK cameras to communicate with the Client PC. HTTP Port is the network port that is used when a Client PC connects to the VITEK camera Web page. It can be assigned between 80 and 65535.The default value is 80.

  • Page 44: Bandwidth Control Configuration

    Bandwidth control is for limiting maximum network traffic. If it is enabled with Bandwidth limits, maximum data size transferred from VITEK cameras won’t exceed bandwidth limits set by users. If transferred data is exceeded, part of the data will be randomly lost.

  • Page 45: Network Status Notify

    If Network Status Notify is set to Enable, VITEK cameras network status will be emailed to a specific person in case of the following events:  When it is set to Dynamic IP in the Network Configuration menu, and the VITEK camera has been given a new dynamic IP address and connects to the network.

  • Page 46: Ip-Cctv Dns Setup

    In Sender field, enter your email address or other meaningful words that will show the message was sent from the VITEK camera as a notification. Now enter the email addresses of the recipients in the Recipient fields, up to 3 addresses. In the User-Defined Message box, you may enter a message to explain why the message was sent.

  • Page 47: Port Forwarding & Upnp

    UPnP port forwarding is made up with finding an available network port, assigning it to a VITEK camera and reporting overall network configuration of a VITEK camera to IP-CCTV DNS server.

  • Page 48: Rtp/Rtsp Setup

    RTSP (Real-Time Streaming Protocol) is a protocol to transfer video and audio streams over the network. Any application supporting Standard RTSP can be used for VITEK cameras. Quick Time Player or VLC program can be used with this; it may not be supported in the environment within a firewall.

  • Page 49: Device Configuration

    ENVI Series: VTC-IR302FN Enable: Start RTSP service Service Disable: Stop RTSP service In normal case, use default port number 554 to connect to RTSP service. If not using port 554, enter the port number you want to use. RTSP Port e.g.) port number 445==>rtsp:// network video server ip...
  • Page 50 ENVI Series: VTC-IR302FN To Add a Privacy zone click New button, a Green-colored box will appear, click on the Green box and it will turn Red, at this point you can resize it by clicking and holding any corner and drag to desired size.
  • Page 51 ENVI Series: VTC-IR302FN Users can add up to 8 Privacy Zones per screen by repeating above steps. If you add more than 8, an error message will display on the screen. To delete a privacy zone, click the zone and click Delete button followed by Apply button.

  • Page 52: Camera & Motion

    However, if network conditions are limited dropped frames in video data is possible, the video quality can be relatively low. With VITEK Cameras, you can set the number of P-frames in the video which is independent still images between I-frames.
  • Page 53  Audio: (not available on all models) Select if Audio function is to be used (applies to Primary Stream only). VITEK Cameras provides 2-way audio streaming by combining microphone input with video data. Users can listen to the streamed audio through a PC and speakers.

  • Page 54: Camera Configuration

    ENVI Series: VTC-IR302FN NTSC 704 x 480 352 x 240 160 x 112 704 x 576 352 x 288 160 x 144 640 x 480 320 x 240 160 x 112 1.3M Pixel 1280 x 1024 640 x 480 320 x 240 160 x 112 2.0M Pixel...

  • Page 55: Rate Control Mode

    ENVI Series: VTC-IR302FN 14.3.1. Rate Control Mode 14.3.2. Image Quality Setup In Image Quality level setup, select “Low Compression” for higher image quality, but it requires higher network bandwidth. Selecting the “Lowest” requires lower network bandwidth, but gives decreased image quality.
  • Page 56 ENVI Series: VTC-IR302FN Exposure AGC (Automatic Gain Control) You can adjust the AGC manually...
  • Page 57 ENVI Series: VTC-IR302FN SENS –UP Allows color video in low light environment without noise (static). Levels of adjustment (x2, 4, 6, 8, 10, 15, 20,30) If set to high ghosting may appear Brightness D-WDR You can select (OFF, Low, Middle, High)
  • Page 58 ENVI Series: VTC-IR302FN DEFOG Enhances image in foggy weather. (The performance is very limited) You can select (OFF, Low, Middle, High) BACKLIGHT>> GAIN Adjusts the amplification of the video through Low, Middle and High levels...
  • Page 59 ENVI Series: VTC-IR302FN AREA To adjust the Area where “BLC” is relevant. Position Position the shaded area by using UP/DOWN/LEFT/RIGHT arrows, then click ENTER SIZE Change the Size using UP/DOWN/LEFT/RIGHT arrows, then click ENTER...
  • Page 60 ENVI Series: VTC-IR302FN Return to Exposure Menu or select arrow right to AGAIN to redo area. DEFAULT Default the settings from BLC Return Return to the Exposure screen...
  • Page 61 ENVI Series: VTC-IR302FN HSBLC BACKLIGHT >> This function is to prevent against the intense light from washing out the picture, such as headlights from a vehicle. SELECT AREA 1 You can select area 1 thru 4 by clicking right or left button.
  • Page 62 ENVI Series: VTC-IR302FN POSITION Using the UP / Down / Left / Right position the area where needed, then click ENTER Size Using the UP / Down / Left / Right position the size needed then click ENTER...
  • Page 63 ENVI Series: VTC-IR302FN Return to Exposure Menu or select arrow right to AGAIN to redo area. LEVEL Adjust the intensity level of the highlight masking...
  • Page 64 ENVI Series: VTC-IR302FN Mode Day or Night for highlight masking BLACK MASK Turns masking ON and OFF DEFAULT...
  • Page 65 ENVI Series: VTC-IR302FN Defaults HSBLC selection RETURN Return to EXPOSURE screen RETURN Return to SETUP screen LENS >> This camera is equipped with an Auto Iris Lens “DC” for the automatic adjustment of lighting conditions.
  • Page 66 ENVI Series: VTC-IR302FN MODE Adjust mode to the proper application (indoor / outdoor) RETURN Return to SETUP screen MANUAL LENS >> FUNCTION NOT AVAILABLE FOCUS ADJ. Adjusts the focus between day and night...
  • Page 67 ENVI Series: VTC-IR302FN D/N DWELL Adjust the time between day and night when POP on CVBS is turned on POP ON CVBS Start sequencing between day and night images for focusing RETURN Return to SETUP screen DAY & NIGHT DAY&NIGHT menu can be set to AUTO, COLOR, B/W or EXT.
  • Page 68 ENVI Series: VTC-IR302FN In AUTO, camera determines DAY or NIGHT by the incoming light level through the lens only and IR CUT FILTER switches following the DAY/NIGHT modes. In COLOR, camera disables DAY/NIGHT feature and works as a regular color camera and IR CUT FILTER is inserted to cut out the infrared spectrum from the light.
  • Page 69 ENVI Series: VTC-IR302FN NR (Noise Reduction) 2D & 3D NR are very sophisticated and powerful noise reduction technologies at low light. The process of removing image noise from a video signal by applying a 2DNR digital comb filter 3DNR A 3D filter reduces the noise caused by movement resulting in less blur.
  • Page 70 ENVI Series: VTC-IR302FN 2D NR. ON reduces the noise that can be found in low light images 3DNR ON Reduces the noise caused by movement. Start / End of noise reduction with respect to light level can be set to required levels START THRES sets the point from which 3DNR levels starts when the illumination level dims.
  • Page 71 ENVI Series: VTC-IR302FN SMART NR continuously monitors motion on the screen. When no motion is detected, 3DNR is automatically activated for the maximum reduction of noise at low light. 3DNR becomes immediately deactivated upon motion. This will save HDD space...
  • Page 72 ENVI Series: VTC-IR302FN SHARPNESS Increases or decreases the sharpness of the picture. Too much sharpness makes the image harsh and shows more noise and line flicker at the edge of objects in the picture. MONITOR Sets LCD or CRT. LCD: GAMMA, BLUE, GAIN or RED GAIN is adjustable for the best view with LCD monitor.
  • Page 73 ENVI Series: VTC-IR302FN TEXT COLOR - Can be change to 1 of 8 colors. Selected color is applied to menu text and camera title. OUTLINE – Makes the letters bold BACK TABLE - Is the color bar where the cursor is located CORNER COMP Enhances brightness of the corners caused by the lens, or the narrow angle of IR LEDs.
  • Page 74 ENVI Series: VTC-IR302FN MIRROR:OFF(normal display), MIRROR(Left & right mirrored), V-FLIP(upside down) and ROTATE(H/V-FLIP) D-Zoom (Function not available) NEG.IMAGE: If set to ON,. SPECIAL In SPECIAL menu, CAM TITLE, MOTION, PRIVACY, LANGUAGE, PIXEL COM and TV SYSTEM can be set.
  • Page 75 ENVI Series: VTC-IR302FN CAM TITLE: OFF / ON. When on click ENTER Up to 15 characters can be use on camera title line, use ▲,▼,◀,▶ to navigate around chart, when letter or character is flashing click ENTER, continue this in till completed. When done arrow over to POS (POSITION), click ENTER and position camera title to desire location, click enter to return to previous screen and arrow over to END and click ENTER.
  • Page 76 ENVI Series: VTC-IR302FN Note USE Privacy settings under Device Configuration LANGUAGE English, Japanese, Chinese 1, Chinese 2, German, French, Italian, Spanish and Polish. PIXEL COMPENSATION Sometimes image sensors have defective pixels, this can be compensated in two different ways LIVE DPC, compensates the defective pixels in real time and STATIC...
  • Page 77 ENVI Series: VTC-IR302FN ON - Enables LIVE DPC and compensates the defective pixels whose magnitude exceeds the threshold by set level. OFF - Disables LIVE DPC. Note: High setting of LEVEL in LIVE DPC reduces the sharpness STATIC DPC Detects the defective pixels with lens closed and saves the data for compensation ON - Enables the compensation for the detected defective pixels.
  • Page 78 ENVI Series: VTC-IR302FN STATIC THR For white dots (noise) caused by a defective pixel exceeding the levels will be compensated. The lower the setting the more pixels will be compensated up to 1024 staring from top to bottom. PIXEL BOOST It is easier to detect defective pixels with PIXEL BOOST, but the higher the level the more noise might be detected by mistake and give a false reading.

  • Page 79: Di (Sensor Input) / Do (Alarm Output)

    ENVI Series: VTC-IR302FN Factory Defaults the camera settings (Not the network settings) EXIT Exits the Set up menu 14.5. DI (Sensor Input) / DO (Alarm Output) Select DI/DO from Device Configuration menu to name and configure Sensor Input and Alarm Output.
  • Page 80 ENVI Series: VTC-IR302FN DI/DO functionality can be set to either Normal Open or Normal Closed type as follows.  Normal Open Type: Normal is OPEN, and goes CLOSED when triggered by an event.  Normal Close Type: Normal is CLOSED, and goes OPEN when triggered by an event.

  • Page 81: Advanced Configuration

    ENVI Series: VTC-IR302FN 15. Advanced Configuration There are two types of advanced service, one is Buffered Service and the other is Periodic Service. In Buffering Service, a series of images are continuously being stored in a buffer memory of the camera/server for a certain period of time. When the camera/server is triggered by an event or schedule, the images or alarm status just before and after the event/schedule are reported to you by email or buffered FTP services.

  • Page 82: Advanced Services

    ENVI Series: VTC-IR302FN 15.1. Advanced Services Pre-Alarm buffer size and buffering speed can be defined here.  Pre-Alarm Buffer Size: You can set the buffer size which will store the images before event. The unit is in frame, and each channel can be set with different values. The total number of frames for Pre-Alarm Buffer and Post-Alarm Buffer is limited to 10 frames.

  • Page 83: E-Mail Service Configuration

    ENVI Series: VTC-IR302FN 15.1.1. E-mail Service Configuration Email configuration is set up here for Alarm in case any event occurs. Item Description Camera 1~2 Select a channel to be configured for email notification Service Select Enable in order to use this service SMTP server address Enter SMTP server’s address for sending email.
  • Page 84 ENVI Series: VTC-IR302FN E-mail Service Setup for Each Channel For each channel, the following items can be configured for email service: Condition, Post-Alarm Buffer Size, and Post-Alarm speed. The content of text message and display style of DI value can be configured as well.
  • Page 85 ENVI Series: VTC-IR302FN After finishing setup, click Save button to apply. If you don’t want to change, click Back button. Condition, Schedule & Event Configuration If you click on a Condition link, the Advanced Service windows is displayed as shown below.

  • Page 86: Ftp (Buffered) Service Configuration

    ENVI Series: VTC-IR302FN 15.1.2. FTP (Buffered) Service Configuration Item Description Camera 1 - Camera Select which channel to set up for FTP (Buffered). Select Enable to use the FTP (Buffered) service. Otherwise select Service Disable. Server Address FTP Server Address.
  • Page 87 ENVI Series: VTC-IR302FN User ID Enter a User ID to log in to FTP server. Password Enter the Password for the user ID to log in to FTP server FTP Control Port Port number for FTP server (Normally 21 is used)

  • Page 88: Ftp (Periodic) Service Configuration

    ENVI Series: VTC-IR302FN Item Description Condition 1 ~ Select a condition for FTP (Buffered) service to be activated. Up to 3 Condition 3 conditions can be set. Pre-Alarm Buffer Size The Buffer size assigned for Pre-Alarm. Check Video buffer Click this link to go to Advanced Services for video buffer setup.
  • Page 89 ENVI Series: VTC-IR302FN Item Description Camera 1 - Camera 2 Select which channel to set up for FTP (Periodic) service Select Enable to use the FTP (Periodic) service. Otherwise select Service Disable. Server Address FTP Server Address. The directory in FTP server where the data will be uploaded.

  • Page 90: Recording Configuration For Cameras With Sd Card

    Some versions of VITEK IP cameras will have a microSD or a full SD Card. Those models can record and playback video from the SD card if installed. Vitek IP cameras can Support cards up to a 32GB. (Only use quality class 10 SD cards) 16.1.
  • Page 91 ENVI Series: VTC-IR302FN If entire SD information is showing “-NONE-” this means SD card is not formatted, in this case click Note: Be sure to turn off the device before installing a SD card. Otherwise, the SD card may become defective. Always check the recommended type of SD card because non-conforming SD cards can cause abnormal behavior of the system.
  • Page 92 ENVI Series: VTC-IR302FN Note: if program is terminated during the “Format” process SD Card might be damaged After formatting is completed the following screen will be displayed Click OK and you will be brought back to the “SD Status & Format screen” click on “Reboot”...

  • Page 93: Recording Configuration With Sd Card

    ENVI Series: VTC-IR302FN 16.2. Recording Configuration with SD card Each camera has 2 streams (referred as Camera 1 / Camera 2 (see image below)) which can be configured for recording options in this section. Configuration items include motion detection recording, 24-hour continuous recording, event-driven recording, etc.
  • Page 94 ENVI Series: VTC-IR302FN Select Condition 1and the following window will be display. Enable / Disable...

  • Page 95: Utilities

    ENVI Series: VTC-IR302FN By clicking on Enable you will be able to select your mode (Always, Schedule only etc). in this example we will be selecting “Event Only”. Schedule Under Schedule you can select time and date for motion recording if left blank motion recording will be 24hrs, 7 days a week.

  • Page 96: System Log

    17.1. System Log System log file provides you the information about when and who access’ the contents of VITEK Cameras such as HTTP file or CGI programs. In each line, log data consists of date, time, category, IP address, user ID.

  • Page 97: Reboot

    ENVI Series: VTC-IR302FN 17.3. Reboot It is recommended to reboot the system after making changes to the configuration. To reboot, click Reboot on Utilities menu. A screen will display to confirm a system reboot, click ok to continue. Windows Internet Explorer will ask to close the webpage, click Yes.

  • Page 98: System Update

    ENVI Series: VTC-IR302FN 17.5. System Update ** Is Highly Recommended to Use the IP Installer Program for This Process ** Once IP devices are searched and shown on the screen as functioning successfully, you can update the firmware of them using the “IP Installer” program. To do that, first check the firmware version...
  • Page 99 ENVI Series: VTC-IR302FN In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you can see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 100 ENVI Series: VTC-IR302FN Note: Do not CLOSE window until completed, to avoid permanent damage to the camera.

  • Page 101: Envi Series Viewer

    TCP/IP network. ENVI Series Viewer works with EN-V-R network video software, Vitek Network Video Servers, Network Video Recorders, and Network Cameras to show real-time live video images and enables users to control audio, Relay Output, and PTZ functions.

  • Page 102: Installing And Uninstalling

    19.1. Installing ENVI Series Viewer Connect to the Vitek Camera/Server using Internet Explorer, and click Live View on the main page. Then ENVI Series Viewer will be automatically downloaded and installed. If an Internet connection is not available, it's possible to manually install the program file in advance (from supplied CD) and connect to the Vitek Camera / Server later.
  • Page 103 ENVI Series: VTC-IR302FN Click the Install ActiveX Control, and the pop-up window will be displayed as above. Click the Install button. Click “YES” to allow program to run. After the installation is successfully completed, ENVI Series Viewer window will be displayed.

  • Page 104: Manual Installation

    ENVI Series: VTC-IR302FN 19.1.2. Manual Installation When an Internet connection is not available or having some difficulties, you can manually install from the supplied CD using ENVI Series Viewer program file. Execute the downloaded file, and you will see the ENVI Series Viewer Setup Wizard window as shown below.

  • Page 105: Uninstalling Envi Series Viewer

    ENVI Series: VTC-IR302FN 19.2. Uninstalling ENVI Series Viewer There are two ways to uninstall ENVI Series Viewer program from your computer. Before uninstalling, close all the Internet Explorer windows. 19.2.1. Uninstalling with Program Menu Click Uninstall and the following window will be shown. Click the Yes button.

  • Page 106: Uninstalling On Control Panel

    ENVI Series: VTC-IR302FN 19.2.2. Uninstalling on Control Panel Click Start button on the screen, then select the Control Panel. In the Control Panel window, double-click the Add or Remove Programs icon.

  • Page 107: Starting Envi Series Viewer

    Uninstall /Change button. Then, it will start uninstalling the program. 20. Starting ENVI Series Viewer Once ENVI Series Viewer is installed in your computer, you can start it by connecting to the Vitek Camera / Server using Internet Explorer and select Live View on the main menu.

  • Page 108: Control Bar

    ENVI Series: VTC-IR302FN The appearance of ENVI Series Viewer window varies depending on what type of Vitek Server is connected (Network Video Server, Network Camera, or Network Video Recorder).  ENVI Series Viewer window for Network Video Server or Network Camera 20.1.

  • Page 109: Channel Control Bar

    ENVI Series: VTC-IR302FN 20.2. Channel Control Bar Displays or hides live view video from channel 1 Displays or hides live view video from channel 2 Displays or hides live view video from ALL channels No Display 20.3. OSD Channels Buttons 20.3.1.

  • Page 110: Saving As Video File

    ENVI Series: VTC-IR302FN 20.3.2. Saving as Video File In ENVI Series Viewer, Live video currently displayed can be captured and recorded as a video file in AVI format. Select a live view you want to save, and click RecAvi button on OSD Channel Buttons. Clicking it again will stop recording.

  • Page 111: Instant Playback

    ENVI Series: VTC-IR302FN recorded to the SD Card by clicking this button. The recorded video can be viewed by Instant Playback feature of OSD Channel Buttons or by running ENVI Series Player program. To finish, click the icon again. Max duration is 1 minute and recording will be stopped after 1 minute.

  • Page 112: Extended Features

    ENVI Series: VTC-IR302FN Set the beginning of video data. Instant playback will scan 1 min after this. Se the playback speed. Begin searching data Playback Reverse playback. 1 frame playback 1 frame reverse playback Pause Stop 20.4. Extended Features When you click the right mouse button on the Live View Window, a pop-up menu will appear for extended features as shown below.

  • Page 113: Flip Control

    ENVI Series: VTC-IR302FN 20.4.3. Flip Control Flip Control: The horizontal view of the image can be changed using the (mirror) function. The vertical view of the image can be changed using the (flip) function. 21. EN-V-R: Introduction This User's manual explains how to set up EN-V-R software in your PC. EN-V-R is the integrated system software for video security applications, which runs on Microsoft’s Windows-based computers.

  • Page 114: Requirements For Installation

    ENVI Series: VTC-IR302FN 22. Requirements for Installation 22.1. EN-V-R Versions EN-V-R is supplied to customers in different versions for each appropriate application. Users will need to choose the right versions for their needs. Support Version Register Time Recording Retransmission Max Recoding...

  • Page 115: Installing En-V-R

    ENVI Series: VTC-IR302FN 720P Intel Core i-5 460M 1.5GB 1080P Intel Core i-5 -2500 3.0GB Intel Core i-5 661 1.5GB 32 channels 720P Intel Core i-5 -2400S 2.0GB 1080P Intel Xeon X5590 Dual CPU 4.0GB Intel Core i-5 -2500 3.0GB...
  • Page 116 ENVI Series: VTC-IR302FN The default location for installation is C:\Program Files\Vitek. It is recommended to install in this folder, but if you want to change it to another location, click Browse button to choose a proper path. Now click Install button.
  • Page 117 ENVI Series: VTC-IR302FN After installing EN-V-R program for the first time, it needs to be configured before use, so it automatically executes the configuration program, which is called EN-V-R Configurator. Enter the proper Admin Password. The default password is root.

  • Page 118: Uninstalling En-V-R

    ENVI Series: VTC-IR302FN For more information about the EN-V-R Configurator program, refer to Section 26. Starting EN-V-R Configurator on page 120. 24. Uninstalling EN-V-R 24.1. Closing Active EN-V-R If you need to uninstall EN-V-R, first you need to make sure EN-V-R program is not running on your computer by checking the system icon.

  • Page 119: Executing Uninstaller

    24.2. Executing Uninstaller To start uninstalling, click Start >All Programs >Vitek>EN-V-R>Uninstall. When the following window appears, click YES button. The progress of uninstalling is displayed. After all the install files are deleted, the following window will be displayed. Click OK button on the...

  • Page 120: Components Of En-V-R Program

    ENVI Series: VTC-IR302FN 25. Components of EN-V-R Program EN-V-R Service, EN-V-R Configurator, and EN-V-R Controller EN-V-R consists of three programs, ( 25.1. EN-V-R Configurator EN-V-R Configurator is used to set up various parameters and conditions of EN-V-R Service. Users can register, modify, and delete IP devices and users with this program.

  • Page 121: Starting En-V-R Configurator

    ENVI Series: VTC-IR302FN 26. Starting EN-V-R Configurator EN-V-R Configurator starts automatically right after installation is completed; you may also click the EN-V- R icon on the Windows desktop. If EN-V-R program is already running in background, you may also select the EN-V-R icon on the system tray by clicking right button of the mouse.

  • Page 122: Quick Start Guide

    ENVI Series: VTC-IR302FN Now EN-V-R Configurator window will be displayed. 27. Quick Start Guide EN-V-R is full-functioning Network Video Recorder software that runs on your PC. When started for the first time after EN-V-R is installed, there is no IP devices connected.

  • Page 123: Searching For Ip Devices

    ENVI Series: VTC-IR302FN Items Descriptions Main Toolbar Frequently-used menu items are shown on this toolbar. Configuration Menu tree Configurable categories are shown as a menu tree style. Configuration Menu Descriptions and usages of the selected category are displayed. Description Menu items for the selected category are shown.
  • Page 124 ENVI Series: VTC-IR302FN You are now given a choice to register the IP devices by “search and register or manually”. To make it easy, choose Search and register IP-Device in this stage, and click Next button. On the following window, click Scan button.

  • Page 125: Registering Ip Devices

    ENVI Series: VTC-IR302FN 27.3. Registering IP Devices After scanning is finished, you have a list of IP devices found on your network. Next step is registering them. Double click the IP device you want to register or you may highlight it and then click Register button.
  • Page 126 ENVI Series: VTC-IR302FN Click on Save after configuring IP device (camera) Click Apply after registering one or more IP devices (cameras).The image below represents the configurator with multiple IP devices registered.

  • Page 127: Viewing Live Video

    ENVI Series: VTC-IR302FN After clicking Apply, the program will ask you to confirm it. Then click OK EN-V-R service is being stopped momentarily, and then it will start running again. 27.4. Viewing Live Video Once the network and cameras are set up, it is necessary to check if EN-V-R is functioning by viewing the live video from those devices.
  • Page 128 Click Live View on top right part of the window to see the live video from registered IP devices (cameras) If this is the first time you are using Vitek Live View feature, the web browser may ask you to allow installing of an ActiveX program.

  • Page 129: Recording Video

    ENVI Series: VTC-IR302FN 27.5. Recording Video The essential feature of EN-V-R is recording the video from IP devices. Before starting the recording, it is required to prepare the hard drive of your PC where EN-V-R program is running. Click Disk Quota on the Menu tree.
  • Page 130 ENVI Series: VTC-IR302FN Possible Maximum Quota (the available of free space on your HDD) Possible Minimum Quota (the minimum amount required) Set Quota (desired amount of HDD to be use for recording) To set up the recording feature, select an IP device from the Menu tree on the left pane. The device information will be shown on the right pane.
  • Page 131 ENVI Series: VTC-IR302FN The recording feature is already enabled and recording conditions are configured in default settings. In the example shown above, you can see that Camera 1 of Device 0 will record video only when motion is detected. Click OK to use this Recording Conditioned.
  • Page 132 Now that the configuration is done, you need to start the EN-V-R service program. Select Start > All Programs >Vitek>smart NVR>Smart NVR controller. You will find the EN-V-R icon on the system tray, which is located right, bottom part of the Windows desktop.

  • Page 133: Envi Smart Player

    ENVI Series: VTC-IR302FN You can find out from this window that the service is running at that moment. If not, click Start Service button to run. Once EN-V-R service is started, the video sent from the configured camera will be recorded according to the recording condition.

  • Page 134: System Requirement For Pc

    Installing Smart Player Connect to the Vitek Camera / Server / NVR on Internet Explorer, and click Player on the main page. If you're using Windows XP Service Pack 2 or later, it may asked you to install ActiveX click the...

  • Page 135: Manual Installation

    ENVI Series: VTC-IR302FN After the installation is successfully completed, Smart Player window will be displayed. 29.1.1. Manual Installation When an Internet connection is not available or having some difficulties, you can manually download and install the Smart Player program file prior to setup, visit http://www.vitekcctv.com/Downloads.asp. You may also install from the provided CD.

  • Page 136: Uninstalling Smart Player

    ENVI Series: VTC-IR302FN After installation is successfully completed, the following window will be displayed. Click Finish. 29.2. Uninstalling Smart Player Before uninstalling, close all the Internet Explorer windows. 29.2.1. Uninstalling on Program Menu Click Uninstall and the following window will be shown. Click the Yes button.
  • Page 137 ENVI Series: VTC-IR302FN Live View & Play Back To live view and play back your cameras, go to Start menu, All Programs, Vitek Folder, Click on Smart NVR Controller, as shown below. Look for icon on right side of taskbar as shown below (windows XP and windows 8 might show it different).
  • Page 138 ENVI Series: VTC-IR302FN Click on Start Service to run the program. Click on Go Home to view Smart Player Home Page Click on Live View The following screen will be display were you can configure your live view.
  • Page 139 ENVI Series: VTC-IR302FN Server Control Bar Allows you to view cameras / servers that are registered in the system. Toggle On/Off Group Control Bar...
  • Page 140 ENVI Series: VTC-IR302FN In order to view video, cameras must be assigned to a group, in this section you create groups with cameras you want to view. Create Group In order to create a group in Group Control Bar, right click on Group, another window will appear then select New.
  • Page 141 ENVI Series: VTC-IR302FN PTZ control Bar In this section you will be able to control PTZ’s connected to the system. Audio Control Bar Controls Speaker and Mic volume. When audio is available click on Connect and adjust speaker and mic levels, when done click...
  • Page 142 ENVI Series: VTC-IR302FN Full/Normal Screen Select full screen as seen below, to return to normal press Esc on your keyboard. Group Circulation Start sequencing between groups.
  • Page 143 ENVI Series: VTC-IR302FN Layout settings You can change the screen layout between 1,2,4, etc. Image in Original Size This allows for digital zoom.
  • Page 144 ENVI Series: VTC-IR302FN Draw Image by Maintaining Aspect Ratio Maintains the aspect ratio of the camera Draw Image by Filling the Screen...
  • Page 145 ENVI Series: VTC-IR302FN Enhanced Draw Mode On/Off. Enhance image for a better reproduction.

  • Page 146: Configuring & Viewing Player

    ENVI Series: VTC-IR302FN About Smart Viewer You can see the status of the Smart Viewer 30. Configuring & Viewing Player From the Home Screen click on Player...

  • Page 147: Main Window View

    ENVI Series: VTC-IR302FN 30.1. Main Window View Note: The appearance of Smart Player window may vary depending on version and type of Vitek device you’re using. This user’s manual is based on general display screen. Server Control Allows you to view cameras / servers that are registered in the system.

  • Page 148: Connecting To Nvr Player

    ENVI Series: VTC-IR302FN You can compose a new group by dragging & dropping servers, modules, and Group Control cameras into a group. Grouping provides search function of recorded video from cameras. Playback Control Users can use this bar for functions such as forward/reverse play, previous frame, next frame, pause, stop, playback speed.
  • Page 149 ENVI Series: VTC-IR302FN The following window will be displayed. Type in the group name and click OK. A new group with the assigned name will be created as shown below. To add a camera to the new group, drag and drop from the server tree to the newly created group.

  • Page 150: Searching Video

    ENVI Series: VTC-IR302FN 31. Searching Video Make sure you have recorded video on the calendar (recorded video shows in red). There are three choices in searching recorded video - Day Search, Condition Search, and Data Search. Make sure that Camera / Server Connection and Creating Group have been performed before you search recorded video.

  • Page 151: Search Mode

    ENVI Series: VTC-IR302FN 31.2.1. Search Mode By clicking a date in red on the calendar, the time frame recorded is shown. 31.2.2. GO to Time Position To go to specific time click on “Go to time position” than input time and click search.

  • Page 152: Advanced Search Mode

    ENVI Series: VTC-IR302FN video will start playing back right after searching is completed. 31.3.1. Advanced Search Mode In Advance Search Mode you can select which conditions to search from (Time, Event, etc) First, select Time checkbox, and choose the desired time frame (Start date and time ~ End date and time), and then click Add Condition button to add to Search Condition.

  • Page 153: Video Playback Controls

    ENVI Series: VTC-IR302FN Now that all the conditions have been configured, click Search button to start searching. Any video data which meets at least one of the conditions in Search Condition list will be shown as the results. 32. Video Playback Controls...

  • Page 154: Extra Features

    ENVI Series: VTC-IR302FN Back to Previous Frame Go to Next Frame Playback Speed Control Player Path Control (only for condition search mode) 33. Extra Features 33.1. Window Control Users can open or close control windows. 33.2. Recording Period You can view the starting and ending date of a recorded channel.

  • Page 155: Backup

    33.3. Backup There are two backup formats IDX and AVI. .IDX Default video file format used by Vitek .AVI Video file format supported by Microsoft Windows When the Backup button is clicked, the following window is displayed as below. Check the camera to backup. For AVI backup, only one camera is Select Camera permitted.

  • Page 156: Snapshot

    ENVI Series: VTC-IR302FN After searching is finished, backup operation will start. When backup is completed, the following window will appear. Click OK button. Note: For AVI file backup, only one camera is allowed. For IDX backup, multiple cameras are allowed.

  • Page 157: Print

    ENVI Series: VTC-IR302FN The below picture is a result of snapshot from the above window. 33.5. Print Choose the camera currently being played or paused, then click Print button. Then the image of the selected camera will be sent to your default printer.

  • Page 158: En-V-R Configuration

    ENVI Series: VTC-IR302FN 34. EN-V-R Configuration 34.1. System, Network Configuration General system and network properties of EN-V-R program can be set up in this section. To start, select System, Network Configuration from the menu list.

  • Page 159: Configuring System Name

    ENVI Series: VTC-IR302FN Items Descriptions System Name Setting Enter the system's name. Set up Admin password Modify the password for Admin. Access Control Configure the access privileges of users. HTTP Port Assign Assign an HTTP Port for EN-V-R Service. Configure IP-CCTV DNS Configure IP-CCTV DNS for EN-V-R Service 34.1.1.

  • Page 160: System, Network Configuration - Admin Password

    ENVI Series: VTC-IR302FN Items Descriptions System name Type in a System name. Click this button to apply the entered System Name. Cancel Click this button to discard the configured System name. 34.1.2. System, Network Configuration - Admin password To assign Password for the admin, click System, Network Configuration on the menu tree. Click...

  • Page 161: System, Network Configuration - Http Port

    ENVI Series: VTC-IR302FN Items Descriptions Set Full Access for the user. Anyone can connect to the EN-V-R without Full Access authentication, and be allowed live view, audio, PTZ, playback. Set Limited Access for the user. Only the users with proper permission to Limited Access the camera can access it.

  • Page 162: Ip-Cctv Dns Registration

    Items Descriptions Service Set to use IP CCT DNS or not. DNS Server IP Vitek IP CCTV DNS address already entered. Go Server Directs to Vitek IP CCTV DNS server MAC address of EN-V-R already entered Product Key Product Key of EN-V-R already entered External Port Enter an external HTTP Port to use for IP CCTV DNS service.
  • Page 163 ENVI Series: VTC-IR302FN Fill out the requested information as shown below and click on Apply. The following screen will confirm that your Membership has been completed successfully, that click OK. You will be brought back to the main page of the IPCCTVDNS website; in this case you need to Login...
  • Page 164 ENVI Series: VTC-IR302FN To register your first product, click on Product Registration as shown below. Enter the requested information (The name of your camera, the Mac Address and product Key) as shown below. Note that the Mac Address and the product Key will be available under the Network Configuration>>...
  • Page 165 ENVI Series: VTC-IR302FN A window will pop up confirming that your product has been registered successfully, click on OK. Product List You will be directed to the page where you will be able to see your recent camera registration. By clicking the Detail Information tab you will be allow edit DDNS Host Name Click Edit to change the DDNS Host Name.
  • Page 166 ENVI Series: VTC-IR302FN A window will pop up asking if you really want to apply the new configurations, to continue click OK. A window will pop up confirming that the product information has been modified successfully, click OK. Click under Product List to view your changes...

  • Page 167: Ip-Device Registration

    ENVI Series: VTC-IR302FN Your camera is now registered and ready for use. 36. IP-Device Registration You will see how to manage IP devices in this section, which includes registering, modifying, and deleting IP devices. To start managing IP devices, select IP-Device, Camera Management from the menu list.

  • Page 168: Ip-Device Registration (Manual)

    ENVI Series: VTC-IR302FN Items Descriptions IP-Device Manual Registration Register IP-Devices manually by users. IP-Device Automatic Scan and register IP-Devices automatically by the Registration program. IP-Device Modification Modify the information of registered IP-Devices. IP-Device Deletion Delete IP-Devices previously registered. IP-Device Homepage Go to the homepage of the IP-Device.
  • Page 169 ENVI Series: VTC-IR302FN Item Description IP-Device ID Select the IP-Device ID to register. Select the Vendor name of the IP-Device to register. Click the pull-down list, and choose a proper vendor name from the list. Vendor Select the total number of channels (streams) the IP device has. Click the Model pull-down list, and choose proper one from the list.

  • Page 170: Ip-Device Registration (Automatic)

    Check this box if the information from IP-Device needs to be acquired. from IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek products VS Module ID can be set to 0 to 15, and default is 0.
  • Page 171 ENVI Series: VTC-IR302FN Items Descriptions This list shows the IP devices found during the scan process. If you need IP-Device list to select multiple IP devices at the same time, drag your mouse over the devices or keep pressing CTRL or SHIFT key while clicking the IP devices.

  • Page 172: Ip-Device Modification

    ENVI Series: VTC-IR302FN Items Descriptions Descriptions of the image resolution modes in the IP-Device Resolution Description list.(R1, R2, R3, R4, R5, R6, R7, R8, R9, R10) Descriptions of the PTZ numbers in the IP-Device list. PTZ Install Description (P1, P2, P3, P4) IP-Device list IP-Device list to select from.
  • Page 173 (not allowed to modify) Getting Information from (not allowed to modify) IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek VS Module ID products can be set to 0 to 15, and default is 0. HTTP Port Enter the HTTP Port to use with the IP-Device.

  • Page 174: Ip-Device Deletion

    ENVI Series: VTC-IR302FN Cancel Click this button to discard the changed values. 36.3. IP-Device Deletion To delete a registered IP-Device, click IP-Device, Camera Management on the menu tree in the left pane. Then select an IP device to be deleted from the list. Click Remove IP-Device registration 36.4.

  • Page 175: Configure Camera Name And Information

    ENVI Series: VTC-IR302FN Camera Information Configure Information of the selected camera. Resolution and Quality Choose the resolution and quality of cameras. Recording Conditions Set up recording conditions. Alarm and Map service settings Configure Alarm and Map service functions. 36.5.1. Configure Camera Name and Information From the configuration list, select a camera to be assigned with a name.

  • Page 176: Camera Resolution, Quality

    ENVI Series: VTC-IR302FN The below image will be display, enter name (F), then click Apply to camera (H), then OK. Items Descriptions A,B,C,D Camera Selection Select one or more cameras for name assignment by clicking buttons. Unselect All Clear the device list which shows the selected cameras.

  • Page 177: Configure Camera Recording Condition

    ENVI Series: VTC-IR302FN Items Descriptions A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Resolution Select the video resolution. Quality Select the video quality. Apply to Camera Apply the selected video resolution and quality to the system.
  • Page 178 ENVI Series: VTC-IR302FN The below image is where you adjust the recording parameters. Item Description A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Condition List Define the condition for recording to be started.
  • Page 179 ENVI Series: VTC-IR302FN Pre Alarm Images Select pre-alarm images. Pre Alarm Speed Select pre-alarm speed. Post Alarm Images Select post-alarm images. Post Alarm Speed Select post-alarm speed Click this button to confirm the change and exit the window. Cancel Click this button to cancel the all the changed made in this session.

  • Page 180: Alarm, Event Configuration

    ENVI Series: VTC-IR302FN 36.5.4. Alarm, Event Configuration To configure the Alarm and Event features, select a camera to configure, and then click Configure alarm, map service Item Description...

  • Page 181: User Management

    ENVI Series: VTC-IR302FN A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Alarm Service Setup Put check marks on alarm types to use. Event Service Setup Put check marks on event types to use.

  • Page 182: User Registration

    ENVI Series: VTC-IR302FN 36.6.1. User Registration To register a new user, click the 1'st button on the tool bar in the sub-menu toolbar. Items Descriptions User ID Enter a new User ID to register. Password Enter the Password for the new user.

  • Page 183: User Deletion

    ENVI Series: VTC-IR302FN To modify a user's information, select the users name than click the second button on the submenu toolbar. The User Registration window will come up on the screen, make the necessary changes and click OK . 36.6.3. User Deletion To delete an existing user, select the user name than click Remove Registered user account, another screen will pop up confirming to proceed with deletion, click OK to proceed .

  • Page 184: Disk Mode Change

    ENVI Series: VTC-IR302FN device list. The following window will be displayed. Item Description Use HDD Decide whether this HDD is to be used. Possible Maximum Quota Display Possible maximum quota on this HDD. Possible Minimum Quota Display Possible minimum quota on this HDD.
  • Page 185 ENVI Series: VTC-IR302FN Items Descriptions Disk Circulation Setup Configure disk circulation type. Disk Usage Report Setup Configure email address for reporting. Click the Disk Circulation in the list. The following window will be displayed. Item Description Use circulation Select this if disk circulation will be used.

  • Page 186: Utilities

    ENVI Series: VTC-IR302FN Item Description Use to report HDD usage Choose whether to Enable or Disable the report service. When disk circulation is not used, select the HDD size when it will be Report HDD space reported by email. Periodic report Define when Periodic reports will be sent.

  • Page 187: About Program

    ENVI Series: VTC-IR302FN email account for mail service Item Description Service Decide whether to report HDD usage by email or not. SMTP server Enter the address of SMTP server for sending email. Authentication Decide whether to use Authentication. Email user id Enter the sender's id for email account.

  • Page 188: Using En-V-R Controller

    Click this button to close the Window. 37. Using EN-V-R Controller To open EN-V-R controller, click Start >All Programs>Vitek>SMART NVR Controller. Smart NRV controller will be on the lower right part of the system tray. Then right click the icon a sub- window will display, click on Open Smart NVR Controller.

  • Page 189: Connecting To En-V-R

    ENVI Series: VTC-IR302FN Items Descriptions Current Service State Shows whether EN-V-R Service is running or stopped. Start Service Click this button to start EN-V-R Service when it’s stopped. Stop Service Click this button to stop EN-V-R Service when it’s running.

  • Page 190: Pc Without En-V-R

    ENVI Series: VTC-IR302FN After you successfully connecting to the EN-V-R homepage, you will see the following window. Items Descriptions Home Go to EN-V-R’s homepage. Click this button to execute Live View program. You can use various Live View features such as live view, audio transmission, PTZ control, unconditional recording, etc.
  • Page 191 ENVI Series: VTC-IR302FN In case that the HTTP port for EN-V-R is not 80 (default), the port number should be entered  together with the IP address. (the example below assumes HTTP port of 7777)
  • Page 192 VOID in the event of alteration, defacement, or removal of serial numbers. Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.
  • Page 193 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70 VeRsion 1 12/2013...

This manual is also suitable for:

Vtc-402nz

Table of Contents
