1/3" Color dual programmed CCD tuned for
optimal performance in day or night conditions
•
480 TV Lines Resolution
•
60 Infrared LEDs at 850nm enable viewing in
Total Darkness up to 150 Feet (VTC-IR600) /
160 Infrared LEDs at 850nm enable viewing in
Total Darkness up to 350 Feet (VTC-IR1600)
•
Three individually isolated compartments for:
Camera, IR LEDs, and Power Module.
•
Vari-Focal DC Auto Iris IR Lens 4.2~15.5mm
F1.4 (VTC-IR600) / Vari-Focal DC Auto Iris IR
Lens 5.0~50mm F1.4 (VTC-IR1600)
•
Heavy Duty Weather/Vandal Resistant
Aluminum Construction is 100% water and dust
proof
•
Heavy Duty Aluminum Feed-Through Wall
Mount Included
VTC-IR600/4215
VTC-IR1600/550

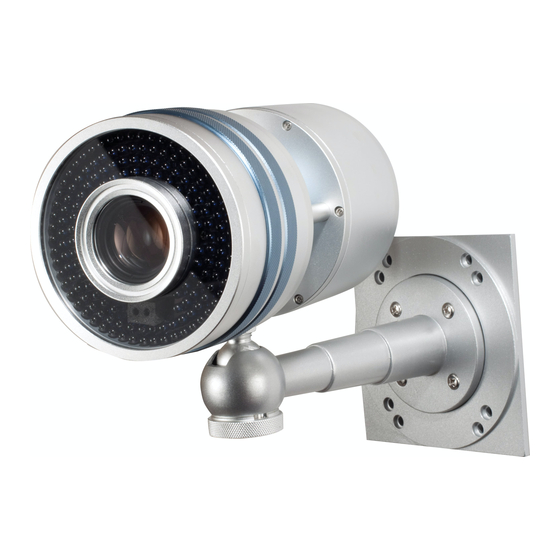

Long Distance Infrared Bullet
•
External focus and zoom controls for ease of
installation and adjustment
•
150mA Power consumption (IR-Off) & 900mA
(VTC-IR600 - IR On), 1800mA (VTC-IR1600 -
IR On)
•
IR picture quality is dramatically improved by
separating the Camera and IR LED
compartments, preventing stray IR light from
entering the lens.
•
80,000 Hour LED life expectancy
•
Dual Voltage: 12VDC / 24VAC
•
Dimensions: 6.875" L x 3.5" OD (VTC-IR600
Camera) / 9" L x 5" OD (VTC-IR1600 Camera)
/ 8.0" (Mount)
Cameras
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-IR1600/550
Summary of Contents for Vitek VTC-IR1600/550

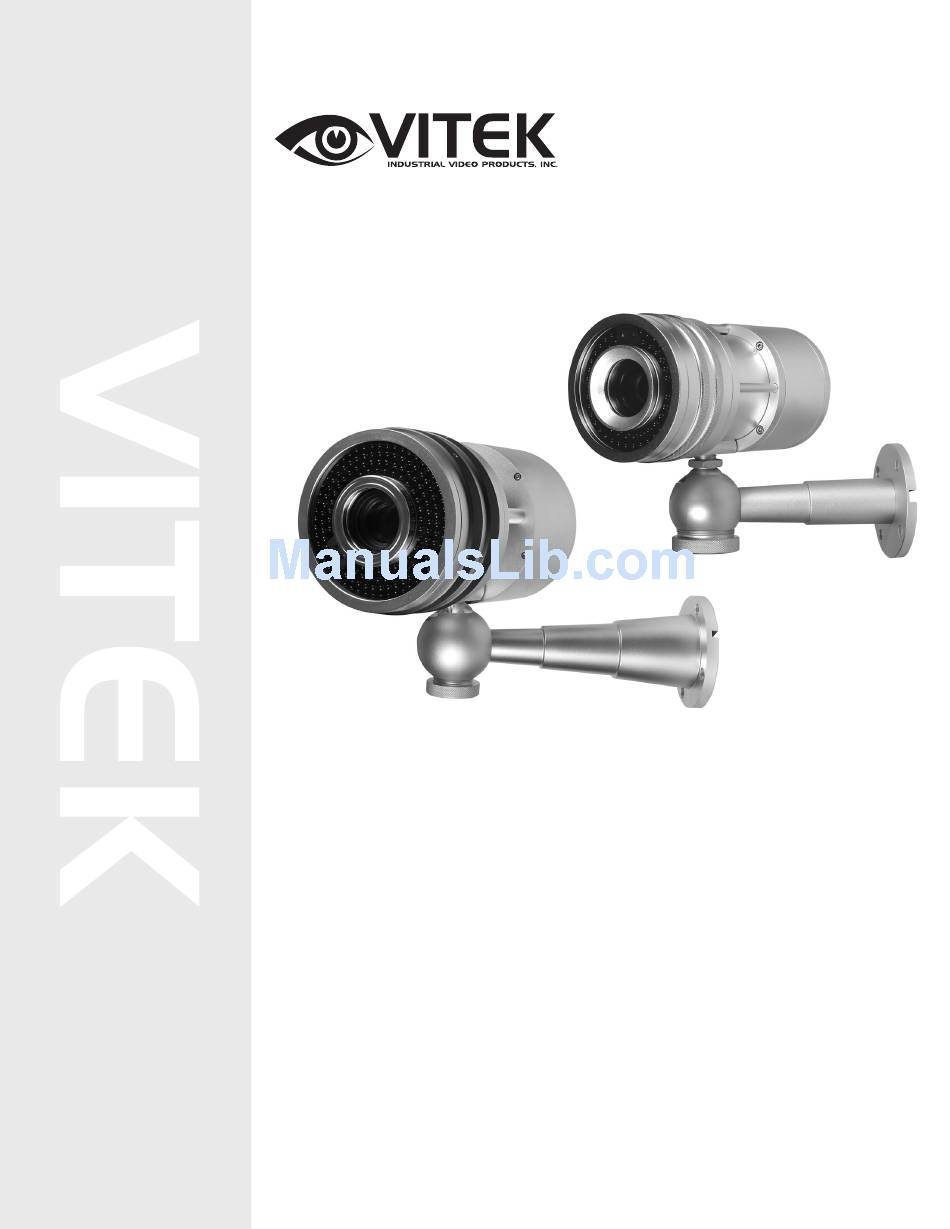

- Page 1 Heavy Duty Weather/Vandal Resistant Aluminum Construction is 100% water and dust proof • Heavy Duty Aluminum Feed-Through Wall Mount Included VTC-IR600/4215 VTC-IR1600/550 Long Distance Infrared Bullet Cameras • External focus and zoom controls for ease of installation and adjustment •...
-
Page 2: Risk Of Electrick Shock Warning
VTC-IR600/4215 / VTC-IR1600/550 The VTC-IR600/4215 and VTC-IR1600/550 are long range Infrared cameras that are robustly built with a revolutionary design. These cameras are ideal for use in commercial or residential applications that require a bright same-as-day quality visibility during the night time. - Page 3 1. One Camera 2. One Instruction manual If any of the contents are missing, please contact the Vitek Customer Help Desk immediately. Installation Overview Your camera is designed to be wall mounted. The camera is weather sealed for indoor or outdoor locations.
- Page 4 VTC-IR600/4215 / VTC-IR1600/550 FEATURE HIGHLIGHTS REVOLUTIONARY AND UNIQUE DESIGN These cameras are designed with three separate compartments for the camera module/lens, power module and infrared LEDs. Many infrared cameras encounter compromised video images due to the reflection of the LEDs into the lens, both viewing through a common surface (polycarbonate/glass).
-
Page 5: Adjusting The Field Of View
VTC-IR600/4215 / VTC-IR1600/550 ADJUSTING THE FIELD OF VIEW ② ① ① ZOOM: The front ring adjusts the zoom ratio. ② FOCUS: The rear ring adjusts the focus. -
Page 6: Specifications
VTC-IR600/4215 / VTC-IR1600/550 SPECIFICATIONS VTC-IR600/4215 Image Sensor Effective Pixels Scanning System Scanning Frequency Resolution Shutter Speed S/N Ratio Sync. System Min. Iilumination White Balance Video Output Lens Power Supply Power Consumption Operating Temp. Operating Humidity No. of I.R. LEDs Wave Length Angles of I.R. - Page 7 Operating Humidity No. of I.R. LEDs Wave Length Angles of I.R. LEDs Viewing Distance VTC-IR600/4215 / VTC-IR1600/550 1/3" (Interline transfer type color CCD (SONY) 768H x 494V (380K pixels) 525 Lines 2 : 1 Interlace 15.734KHz (H), 59.94Hz (V) 480 TV - Lines 1/60 ~ 1/100,000 sec.
- Page 8 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
