FEATURES:
• Sony® 1/2.8" Progressive Scan CMOS Sensor
• 2.1 MegaPixel with Full 1080p/720p TVI Output
• MegaPixel IR Corrected 2.8-12mm Varifocal Auto Iris Lens with External
Adjustments for Focus and Zoom
• 30 Dynamic Infrared LEDs at 850nm enable viewing in total darkness up to
100 feet
• Dual Glass Compartments to Eliminate IR Reflection
• Smart Motion Zoom tracks motion, then intelligently zooms into that area of
the frame
• 3D-DNR Digital Noise Reduction
• CVBS Output by BNC
• True Day/Night by ICR - Dual Filter Switch
• Fully programmable True WDR (Dual Scan)
• Secondary Video Output & OSD Control Joystick are accessible inside a
gasket sealed removable side panel
• Advanced OSD Functions: NORMAL, WDR, D-WDR, 3DNR, Dynamic IR,
Motion Detection, Privacy Mask, D-Zoom(~8x), Sens-up(x32), Flickerless,
BLC/HLC, Defog, Pixel Defect Compensation, Title Set, LSC, Deblur
• 3-Axis mount with Simple One Turn Positioning Lock for Ease of Installation
• IP-67 Rated Water Resistance
• 12VDC / 24VAC Dual Voltage Operation

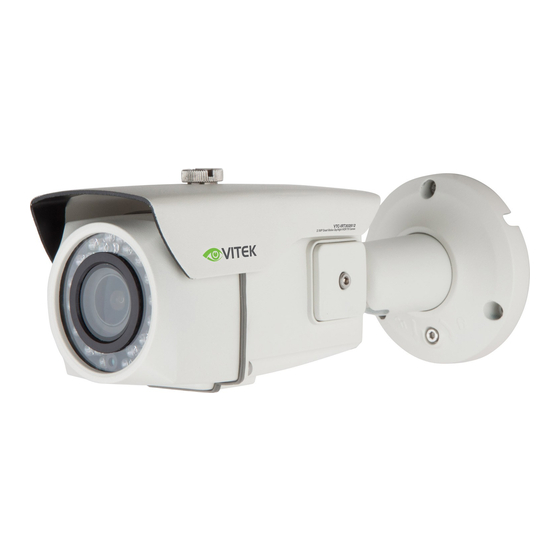

VTC-IRT30-2812
2.1MP Smart TVI WDR Bullet
Camera with 30 IR LEDs
Advertisement
Related Manuals for Vitek Premium TVI VTC-IRT30-2812
Summary of Contents for Vitek Premium TVI VTC-IRT30-2812
- Page 1 VTC-IRT30-2812 2.1MP Smart TVI WDR Bullet Camera with 30 IR LEDs FEATURES: • Sony® 1/2.8” Progressive Scan CMOS Sensor • 2.1 MegaPixel with Full 1080p/720p TVI Output • MegaPixel IR Corrected 2.8-12mm Varifocal Auto Iris Lens with External Adjustments for Focus and Zoom •...
-
Page 2: Safety Precaution
Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 3 Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 4: Table Of Contents
Contents p.02~03 Safety Precaution p.04 Contents p.05~06 Features p.06 Composition p.07 Dimensions p.08 Part Names p.09~11 Installation Instructions p.12~26 Operating Instructions p.27 Specifications... -
Page 5: Features
Features Key Features • Full HD, 2Mega Pixel HD-TVI CAMERA, 1920x1080(30p) • TVI Video Transmission Distance over Coax.; 500M (RG59, 75Ω) *depending on cable condition and characteristics • Automatically removable IR Cut filter by Dual filter switcher • Built-in f=2.8~12mm F1.4 Mega pixel DC Auto Iris Vari-focal lens •... - Page 6 Features General Description This camera realizes the natural and crisp image as you see the scene in front of you by Full HD(1920x1080p) camera module. • ICR mechanism: - Enhances its sensitivity about 10x at night time - Can accept infrared light •...
-
Page 7: Dimensions
Dimensions 3.17” 9.72” 9.29” CAUTION • Extreme care should be taken NOT to scratch the window in front of lens. • Care should be taken that the cable is NOT damaged, kinked or exposed in a hazardous area. • Do not point the camera lens directly at the sun or a spot light. -
Page 8: Part Names
Part Names SUNSHIELD BOLT SUNSHIELD POWER CABLE OSD Setup CONTROL COVER DUAL WINDOW BRACKET REAR CASE FRONT CASE FOCUS ZOOM... -
Page 9: Installation Instructions
Installation Instructions 1. Place the mounting template at the installation position and drill the ceiling or wall if needed. 2. Route the Power cable to the connecting place. 3. Place the camera bracket on pre-drilled position and attach it using mounting screws (4x40mm). - Page 10 Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°. 2) Tilt limit: Tilt is limited to 0°(2°) min ~ 90°...
- Page 11 Installation Instructions Installation Instructions • Make sure the power is removed before the installation. • Follow this order for applying power. First connect the low voltage cable (DC12V or AC24V), then plug the AC adapter into AC outlet to avoid damage from the surge voltage with no load. Power Supply Connections Camera can work with either 24VAC or 12VDC, dual voltage power.
-
Page 12: Operating Instructions
Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Video Sub-out Connector SUB-OUT... - Page 13 Operating Instructions OSD menu Startup Press ‘●’(OSD menu Joy stick key) down for about 2 seconds to access the setup menu mode. • RET : Returns to the previous menu. • EXIT : Exits the menu setting without save. • SAVE&EXIT : Exits the menu setting with save. MENU V3.xx 1.
- Page 14 FULL-HD MEGA-PIXEL CAMERA Operating Instructions NORMAL SCENE D-WDR – Improves the visibility by compensating the video gain for ENHANCE the dark area. Noise can increase in the dark area accordingly. BLC – Improves the visibility for dark objects by bright back light.
- Page 15 Operating Instructions 1. EXPOSURE EXPOSURE SHUTTER AUTO |:::::::|::::::| 10 BRIGHTNESS SENS-UP |:::::::|::::::| 12 RETURN 1-1. SHUTTER (default: AUTO) : Set SHUTTER MODE to AUTO, MANUAL and Flickerless. MANUAL and Flickerless modes disable SENS-UP functions. • AUTO: Optimizes the video level by controlling the iris and the shutter speed automatically.
- Page 16 Operating Instructions 2. LENS Select either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed MANUAL NORMAL MODE DEBLUR MODE RETURN RETURN 2-1. DC (default: DEBLUR for None LED type) : Select lens mode according to installation.
- Page 17 Operating Instructions FOCUS Adj. menu is a unique and patented feature that helps focus by simulating DAY &NIGHT conditions. Set zoom first and adjust focus to get best picture while switching between DAY & NIGHT. • DN DWELL (5s) : ICR switcher switches DAY & NIGHT at the interval of D/N DWELL.
- Page 18 Operating Instructions Higher setting reduces more noise but results in losing sharpness, and tail effects or motion blur may occur. 6. DAY / NIGHT : Refer to ‘DIRECT CONTROL MENU’ table. Default setting are EXT for IR-LED types and AUTO for None IR LED types. D/N AUTO |::::::::::::::| 0 SMART IR...
- Page 19 Operating Instructions 7-2. SHARPNESS : Adjusts the sharpness of video(0~20). (default: 10) 7-3. COLOR GAIN : Adjusts the color level of video(0~20). (default: 10) 7-4. GAMMA : Adjusts the gamma of video. (default: 0.5) 7-5. SHADING (default: OFF) ON enables to compensate the shade caused by wide lens setting. 8.
- Page 20 Operating Instructions 7-3. MOTION (default: OFF) : MOTION can detect the changes in the motion window and displays the results in blocks and/or a text message. • SENSITIVITY : Adjusts the detection sensitivity for motion. Higher value increases the sensitivity to detect small motion easier. Too low of sensitivity will cause erratic detection.
- Page 21 Operating Instructions • EXECUTE ‘ ’: Long pressing will execute the pixel calibration for the detected pixels. Menu will exit automatically after compensation. 8-5. TITLE SET : Camera title(name) can be set and edited up to 15 alpha numeric and symbolic characters from ASCII codes(ENGLISH only).
- Page 22 Operating Instructions • D-ZOOM RATIO: Set the D-Zoom Ratio from DX 1.1~DX5.0 • STAYING ZOOMING : Sets the duration time for preset zoom area. CAUTION • Set the direction of video by MIRROR/FLIP before POINTING ZOOM setting. Otherwise location of zoom center could be different from your intention. •...
- Page 23 Operating Instructions 9-4.UTC CONTROL (default: AUTO) : Camera can be adjusted through DVR using Up-the-Coax(UTC) communication with PELCO-C protocol. Select AUTO, PELCO-C or OFF • AUTO : The camera will automatically detect the PELCO-C protocol. • PELCO-C : Camera can detect PELCO-C protocol only. [Note] AUTO only supports the PELCO-C protocol of verified DVRs.
- Page 24 Operating Instructions ( Available with RS-485 model only ) Setting for RS-485 Communication with PTZ Controller ● Enter the MENU : Press buttons 9+5+PSET (PRESET) ● Set the Preset Zoom : Press buttons 1(or ~4)+PSET (PRESET) ● Move the cursor in the MENU : Moves UP/DOWN/LEFT/RIGHT Joy stick ●...
- Page 25 Operating Instructions SMART MOTION ZOOM H-POINTER V-POINTER D-ZOOM RATIO MZ2.0 MOTION CHK CUNT RETURN • H-POINTER (10): Moves MOTION ZOOM area(Yellow window) horizontally. • V-POINTER (10):Moves MOTION ZOOM area(Yellow window) vertically. • D-ZOOM RATIO (MZ2.0): Sets the area size to be digitally zoomed when motion occurs in the black window.
- Page 26 Operating Instructions POINTING ZOOM H-POINTER V-POINTER RETURN • H-POINTER (10): Sets the horizontal location of area to be zoomed by POINTING ZOOM. • V-POINTER (10) : Sets the vertical location of area to be zoomed by POINTING ZOOM * SMART MOTION and POINTING ZOOM VS. Conventional Zoom Smart Motion and Pointing Zoom Conventional Zoom...
-
Page 27: Specifications
Detailed Specifications Imaging Sensor 1/2.8” Sony Exmor Progressive Scan CMOS Sensor Video Output HD-TVI by BNC - CVBS by BNC Resolution 2.1 MegaPixel (1080p / 720p) Effective Pixels 1920(H) x 1080(V) x 30p S/N Ratio More than 50dB (AGC Off) Sensitivity 0.0009 Lux @ (LED Off, AGC 12, DSS x2) / 0 Lux with IR On Lens Type... - Page 28 ConSIDER THESE oTHER GREaT PRoDuCTS fRoM VT-SHP916 SpireHD 16 Channel Real Time Tribrid TVI / AHD / 960H Digital Video Recorder • Supports High Resolution TVI, AHD, and 960H Cameras • 16 Video Inputs with 1 HDMI, 2 Spot Monitor Outputs, and 1 VGA output •...
- Page 29 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
- Page 32 Version 1.0 28492 Constellation Road ValenCia, Ca 91355 November 2015 WWW.ViteKCCtV.CoM...
