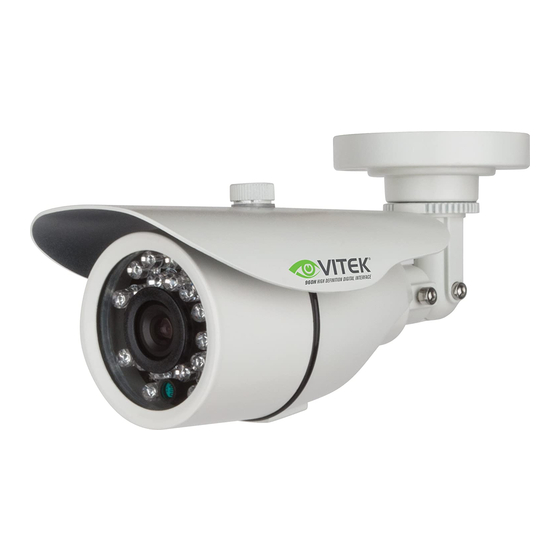

VTC-IRE24F
Day/Night 960H Infrared
Bullet Camera
• 1/3" High Resolution CCD
• 700 TV Lines of Resolution (960H)
• E-WDR by Adaptive Tone Reproduction
• 24 Dynamic Infrared LEDs with up to 65' Range
• 0.003 Lux / 0 Lux with IR LEDs On
• IR Corrected 3.6mm Fixed Iris Lens
• 2DNR Noise Reduction
• Motion Detection, Privacy Masking & Highlight Masking
• OSD (On Screen Display) menu and Camera ID
• IP-67 Rated Water Resistance
• Cable Feed Through Mount for tamper resistance
• 12 VDC Operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-IRE24F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VTC-IRE24F

Summary of Contents for Vitek VTC-IRE24F

  • Page 1 VTC-IRE24F Day/Night 960H Infrared Bullet Camera • 1/3” High Resolution CCD • 700 TV Lines of Resolution (960H) • E-WDR by Adaptive Tone Reproduction • 24 Dynamic Infrared LEDs with up to 65’ Range • 0.003 Lux / 0 Lux with IR LEDs On •...

  • Page 2: Package Contents

    This exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. PACKAGE CONTENTS 1 x VTC-IRE24F Camera 1 x Mounting Bracket 1 x User Manual 1 x Hex Wrench...
  • Page 3 VTC-BRE24F / VTC-IRE24F The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of non-insulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 4: Table Of Contents

    VTC-BRE24F / VTC-IRE24F Contents EXPOSURE DAY & NIGHT WHITE BAL MONITOR IMAGE MOTION SYSTEM EXIT...
  • Page 5 VTC-BRE24F / VTC-IRE24F Warning Contact an authorized technician for inspection. If you use your camera around smoke or unusual heat for a long time, fire may be caused. Unless the surface is suitable, it could cause falling or other hazards.
  • Page 6 VTC-BRE24F / VTC-IRE24F [OSD Menu] EXPOSURE ALC / ELC DAY / NIGHT DAY / NIGHT / AUTO / EXTERNAL / CDS WHITE BAL MANUAL / PUSH / ATW MONITOR GAMMA / CHROMA / SHARPNESS / SHADING / PED.LV BACK LIGHT / CONTRAST / POSI/NEGA / H-MIRROR /...
  • Page 7 VTC-BRE24F / VTC-IRE24F MAIN MENU DEFAULT DESCRIPTION Select Lens type according to mounted / built-in lens. EXPOSURE * ELC : Electronical Iris Lens (Manual Iris Lens / Fixed Focal Lens). * ALC: Auto Iris Lens(DC) * AUTO: DAY or NIGHT is decided automatically by light level coming through lens.

  • Page 8: Exposure

    VTC-BRE24F / VTC-IRE24F 1. EXPOSURE Select lens type in accordance with mounted/built-in lens. * ALC : Auto Iris Lens * ELC : Electronic Iris Lens (Fixed Focal Lens / Manual Iris Vari-focal Lens) EXPOSURE DEFAULT DESCRIPTION (ALC / ELC) Adjust the brightness level of screen when the BRIGHTNESS environment is extremely bright or dark.
  • Page 9 VTC-BRE24F / VTC-IRE24F DAY & DEFAULT DESCRIPTION NIGHT * NIGHT: Camera works as a regular B/W camera. ICR move to pass IR spectrum. DAY & * CDS : Not used NIGHT * EXT : DAY or NIGHT is decided by external signal(included CDS sensor) built in camera.
  • Page 10 VTC-BRE24F / VTC-IRE24F...

  • Page 11: White Bal

    VTC-BRE24F / VTC-IRE24F 2-2. NIGHT NIGHT DEFAULT DESCRIPTION BURST * Select BURST ON or OFF * Set LED POWER, ANTI-SAT & SAT AREA. SMART IR Can set SAT AREA when use ANTI-SAT. Note: If set D&N at Night, White Balance is not activated.

  • Page 12: Monitor

    VTC-BRE24F / VTC-IRE24F 4. MONITOR Set GAMMA, CHROMA, SHARPNESS, SHADING & PED. LEVEL of Monitor 5. IMAGE 5-1. BACK LIGHT 5-1-1...
  • Page 13 VTC-BRE24F / VTC-IRE24F DEFAULT DESCRIPTION LEVEL MIDDLE * Set up BLC LEVEL, MIDDLE, HIGH or OFF * Select ON or OFF of BLC area. DISPLAY BLC area appear in blue square frame. TOP/BOT * Adjust size of BLC area by moving TOP / BOTTOM / LEFT / RIGHT menu.
  • Page 14 VTC-BRE24F / VTC-IRE24F DEFOG 5-2-2 POSI / NEGA 5-2-3 Selectable POSI or NEGA image. H-MIRROR 5-2-4 Selectable MIRROR ON or OFF PRIVACY 5-2-5 This helps you can mask areas you not want to see but want to hide on the screen, offering total 8 masking zones.

  • Page 15: Dnr

    VTC-BRE24F / VTC-IRE24F 6. DNR DNR(Digital Noise Reduction) is technology useful at low light. But too strong reduction may occur tail effect and loss sharpness. * Can choose DNR level, LOW / MIDDLE / HIGH 7. MOTION Motion Detection allows to observe moving object in 4 different areas on the screen.

  • Page 16: System

    VTC-BRE24F / VTC-IRE24F 8. SYSTEM SPECIAL DEFAULT DESCRIPTION * Can make camera name up to 8 letters by using UP / DOWN button CAM TITLE Can use 0~9 & A~Z * LEFT / RIGHT button : choose lettering posion * ON: Camera name(camera title) is displayed...

  • Page 17: Exit

    VTC-BRE24F / VTC-IRE24F 8-1. CAM TITLE *Can input max. 8 letters with A~Z & 0~9 by using UP / DOWN button. *LEFT / RIGHT: move CAM TITLE input position Note) If ‘OFF’ is selected, the CAM TITLE does not appear on the monitor even if it has been inputted.
  • Page 18 Detailed Specifications VTC-IRE24F Image Device 1/3” High-Resolution Inter-Line CCD (960H) Resolution 700 TVL (960H) Effective Pixels 976(H) x 494(V) Minimum illumination 0.003 Lux (0 Lux with LED ON) Infrared LEDs 24 Dynamic IR LEDs IR Distance 65’ (20m) Day/Night Auto Built-In Lens 3.6mm IR Corrected Lens...
  • Page 19 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a Vitek Authorized Reseller.
