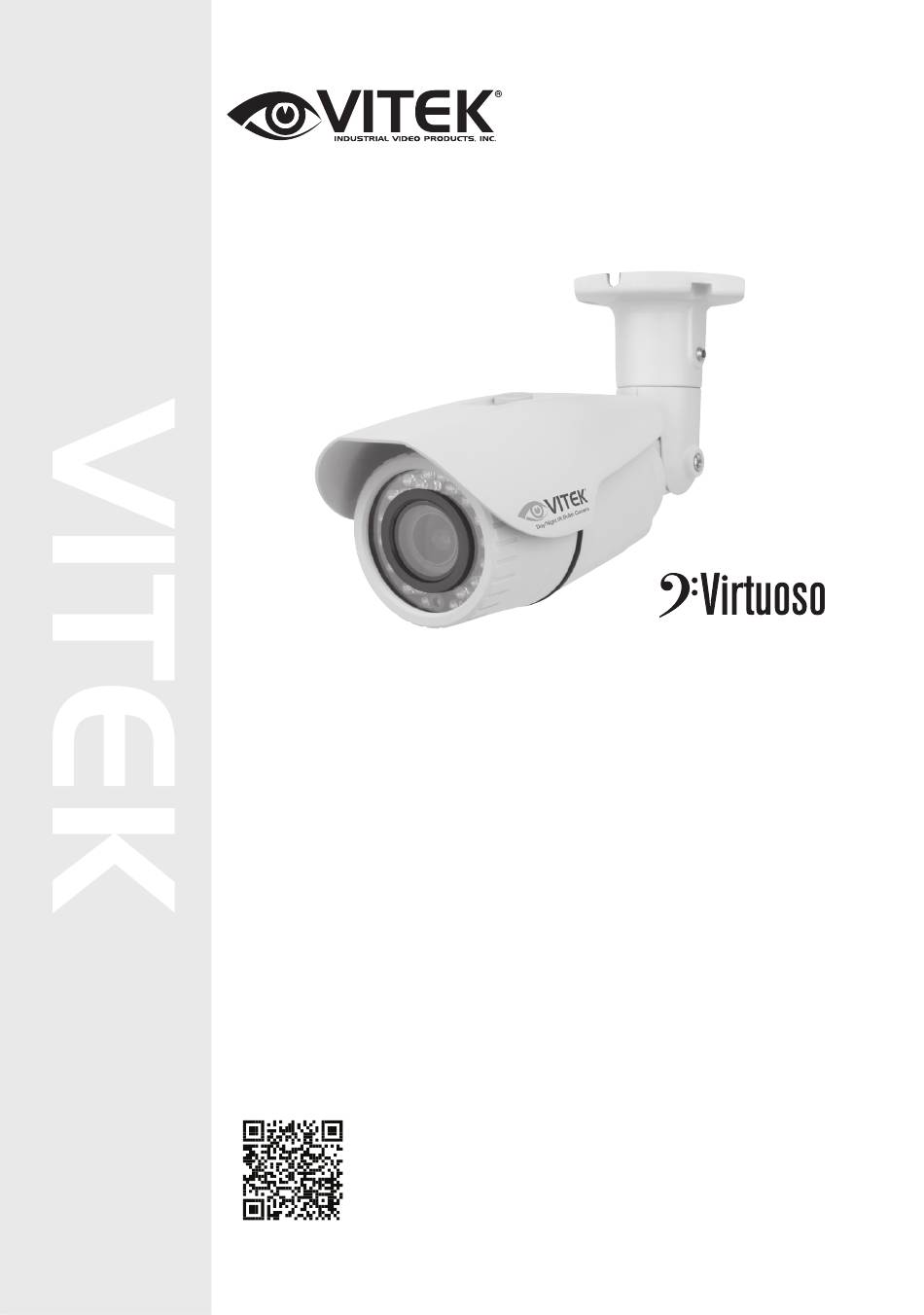

QUICK START GUIDE
FEATURES:
• 1/2.8" Sony® 3.23 MegaPixel RGB Bayer Array CMOS Sensor
• Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel)
• MegaPixel IR Corrected 3.6mm Fixed Iris Lens
• 30 Dynamic Infrared LEDs at 850nm enable viewing in total darkness up to
100 feet
• Dual Glass Compartments to Eliminate IR Reflection
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
• True Day/Night by ICR - Dual Filter Switch
• Triple Streaming (H.264/MJPEG) offering Extensive Integration Possibilities
• Real-time Lens Distortion Correction (LDC) for an optically correct picture
• Compliance with the latest Onvif Profile S
• On-board network security with IP address filtering
• Advanced OSD Features including Image Stabilization & Corridor Mode
• MicroSD memory card slot for Local recording supporting up to 128GB
MicroSDXC cards
• IP-66 Rated Water Resistance
• 12VDC and PoE (Power over Ethernet) Operation
PLEASE NOTE:
Complete user guide available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Manuals/Virtuoso-IP_Operation-Manual.pdf

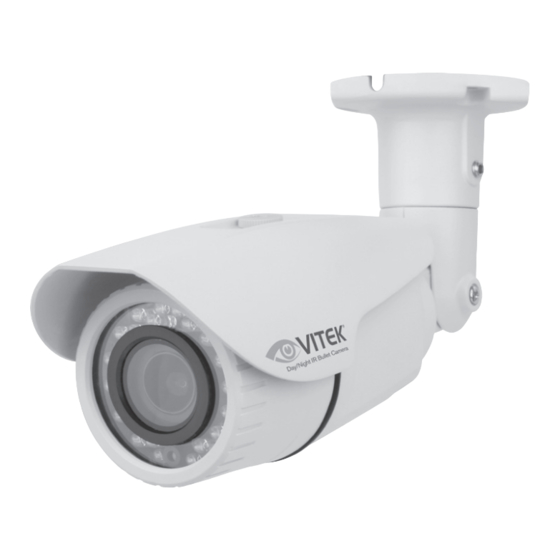

VTC-IR303FNP
Virtuoso Series 3.23MP WDR
IP Camera with 30 IR LEDs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Virtuoso VTC-IR303FNP and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek Virtuoso VTC-IR303FNP

Summary of Contents for Vitek Virtuoso VTC-IR303FNP

  • Page 1 VTC-IR303FNP Virtuoso Series 3.23MP WDR IP Camera with 30 IR LEDs QUICK START GUIDE FEATURES: • 1/2.8” Sony® 3.23 MegaPixel RGB Bayer Array CMOS Sensor • Up to 30fps live view @ 2048 x 1536 (3.15 MegaPixel) • MegaPixel IR Corrected 3.6mm Fixed Iris Lens •...

  • Page 2: Safety Precaution

    Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3 Composition Plastic Anchor: 6 x 30mm (3pcs) Mounting Screw: 4 x 30mm (3pcs) Hex L-Wrench: 3 mm (1pc) Camera Installation CD Quick Start Mounting Coupler for Guide Template RJ45 Cable (1pc) Dimensions (unit : mm) 3.15” 9.25”...

  • Page 4: Part Names

    Part Names SUNSHIELD BOLT SUNSHIELD POWER CABLE DUAL WINDOW BRACKET REAR CASE RUBBER SEALING FRONT CASE Reset Button Micro SD Card Slot...

  • Page 5: Installation Instructions

    Installation Instructions 1. Attach the mounting template at the installation site and drill three holes for mounting on the ceiling or wall. 2. Route the power cable to the connecting place and place the bracket on the pre-drilled position. 3. Attach the camera bracket using mounting screws. 4.

  • Page 6: Pan & Tilt Adjustment

    Installation Instructions Pan & Tilt Adjustment Loosen screws at the side of the bracket as illustrated below to adjust all three axes at once. L-Wrench 1) Pan: Adjusts view direction 2) Tilt: Adjusts view angle 3) Inclination: Adjusts horizontal image alignment.
  • Page 7 Virtuoso Quick Start Guide 1. PC Requirements 1. Operating System • Windows Vista (32 bit) Ultimate, Business Edition • Windows 7, 8, 10 (32/64 bit) Ultimate, Professional Edition 2. Processor • Intel Core 2 Duo 2.4 GHz or higher (for using 1920*1080 30 fps) •...
  • Page 8 Virtuoso Quick Start Guide 3. Accessing the IP Camera 1. Open Web browser 2. Type IP address • Enter the camera’s IP address in Internet Explorer® address bar. • The default IP address is 192.168.0.10 • The default User ID and Password is admin / admin 4.

  • Page 9: Quick Setup Menu

    Virtuoso Quick Start Guide 5. Quick Setup Menu Setting the Quick setup menu. Enter the setup menu icon on the Web Viewer. 5-1. Information The Information shows the camera basic information such as Model name, MAC address, IP address, Zeroconf IP address and Firmware version. 5-2.
  • Page 10 Virtuoso Quick Start Guide 5-2-2. Edit To edit a user: 1. Select one of the User Names in the User List you want to modify. 2. Click the Edit tab, then new pop-up window appears. 3. Type a password (1 to 8 alphanumeric characters) and retype confirm password. •...
  • Page 11 Virtuoso Quick Start Guide • Obtain IP address via DHCP : Select the choice box if you want to assign the IP address from DHCP server automatically, and then the remaining setting are read-only text. • Use the following IP address: Select the choice box if you want to assign the IP address manually.
  • Page 12 Virtuoso Quick Start Guide 5-4-1. Current Time Shows the current date and time. • Date: The default setting is 1970-01-01. • Time: The default setting is 00:00:00. 5-4-2. New Time Select one of the server time. • Synchronize with computer time: Sets the time according to the clock on your computer.

  • Page 13: Upgrading The Firmware

    Virtuoso Quick Start Guide If you suspect a problem is being caused by incorrect configuration or some other minor problem, consult the troubleshooting guide below. Upgrading the Firmware Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware.
  • Page 14 Virtuoso Quick Start Guide Poor image quality. Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. Rolling dark bands or flickering Try adjusting the Exposure Control setting under AE in image.

  • Page 15: Setup Menu Table

    Virtuoso Quick Start Guide Setup Menu table Main MENU Sub MENU CONFIGURATION Information Users Add / Edit / Delete Quick Setup Network IP Address Date & Time Current Time / New Time / Time Zone / Date & Time Display Video Video Source / Video Stream1 / Video Stream2 / Video Stream3...
  • Page 16 Virtuoso Quick Start Guide Sensitivity Motion Detection Triger Alarm In(*) / System / Manual / Network Events Action Alarm Out(*) / E-Mail / FTP / Video Rule Record Record Record / Schedule / Storage Video Analytics Tamper Security Users / HTTPS / IP Filer / ONVIF Current Time / New Time / Time Zone / Date &...
  • Page 17 Detailed Specifications Sensor 1/2.8” Sony® 3.23 MegaPixel RGB Bayer Array CMOS Resolution 3.15 MegaPixel (2048x1536) Video Encoding H.264 / MJPEG Frame Rate 30fps max Dynamic Intensity IR LEDs 30 850nm IR LEDs IR Range 100’ Lens 3.6mm Fixed Iris Corridor Format 90°...
  • Page 18 HDD (8 & 16 Channel Models) Included) • Plug & Play and Auto configuration • Plug & Play and Auto configuration for VITEK ENVI IP Cameras and many for VITEK ENVI IP Cameras and many leading ONVIF compliant Cameras leading ONVIF compliant Cameras •...

  • Page 19: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
  • Page 20 Version 1.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 May 2016 WWW.VITEKCCTV.COM...
