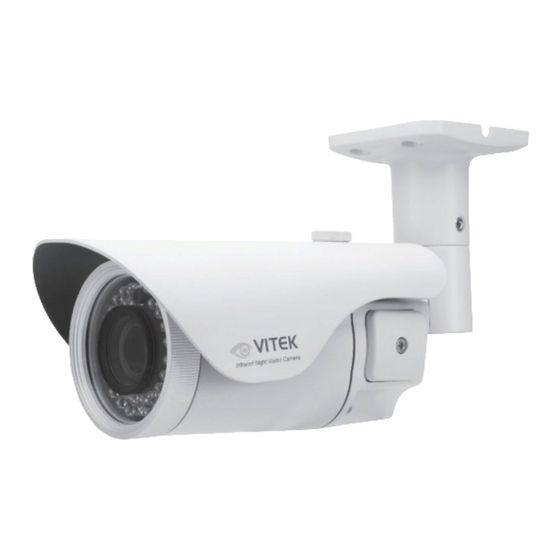

Vitek VTC-IR40-N User Manual

Envi series 1.3 & 2.0mp vandal resistant day/night ir bullet camera series w/150’ range
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
• 1/3" 1.3 & 2.0 Megapixel Progressive Scan CMOS image sensors
• Up to 30fps live view @ 1920x1080p (2.0 MegaPixel Models) / 1280x1024 (1.3
MegaPixel Models)
• 2.8-10mm Varifocal Auto Iris Lens
• Integrated 850nm Infrared LEDs with up to 150' Range
• Dual Glass Compartments to Eliminate Glare
• 2.8-10mm Varifocal DC Auto Iris IR Lens
• Heavy Duty IP68 rated weather resistant aluminum construction
• Secondary Video Output & OSD Control Joystick are accessible inside a Gasket
sealed removable side panel
• Externally adjustable Focus & Zoom with clutch to eliminate over-tightening
• 3D-DNR Noise Reduction
• 16:9 (2.0 MegaPixel Models) / 4:3 (1.3 MegaPixel Models) Video format
• Secondary video output for installation & maintenance
• Auto True Day Night (TDN) without focus shift is achieved with dual filter switch
function
• H.264/MJPEG Dual Streaming
• Full duplex 2 way audio, Alarm IN/OUT
• Minimal Latency w/Max 16 User Connections
• Onvif Compliance
• SD memory card slot for Local recording
• 12VDC/24VAC & PoE (Power over Ethernet) Operation
Specifications & installation procedure subject to change without notice.
Visit www.vitekcctv.com for the most current information available.
ENVI Series
ENVI Series 1.3 & 2.0MP Vandal
Resistant Day/Night IR Bullet
Camera Series w/150' Range

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-IR40-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VTC-IR40-N

Summary of Contents for Vitek VTC-IR40-N

  • Page 1 ENVI Series ENVI Series 1.3 & 2.0MP Vandal Resistant Day/Night IR Bullet Camera Series w/150’ Range • 1/3” 1.3 & 2.0 Megapixel Progressive Scan CMOS image sensors • Up to 30fps live view @ 1920x1080p (2.0 MegaPixel Models) / 1280x1024 (1.3 MegaPixel Models) •...

  • Page 2: Table Of Contents

    ENVI Series: VTC-IR40-N Table of Contents 1. Box Contents..........................6 2. Included Accessories ........................ 6 3. VTC-IR40-N Layout ........................7 3.1. Front View ........................7 3.2. Rear Side View ......................7 4. VTC-IR40-N Installation ......................8 4.1. Mounting The Camera ....................8 4.2.
  • Page 3 ENVI Series: VTC-IR40-N 12. System Configuration Menu ....................37 12.1. Server Name Setup..................... 37 12.2. Date & Time....................... 38 12.3. Admin Password ......................39 12.4. Access Control ......................39 12.5. User Registration ......................39 12.5.1. Add ......................... 39 12.5.2. Edit ......................... 41 12.5.3.
  • Page 4 ENVI Series: VTC-IR40-N 17.3. Reboot ........................97 17.4. Factory Default ......................97 17.5. System Update ......................98 18. ENVI Series Viewer......................101 18.1. Introduction ......................101 18.2. Key Features ......................101 18.3. System Requirement for PC..................101 19. Installing and Uninstalling ....................102 19.1.
  • Page 5 ENVI Series: VTC-IR40-N 27. Quick Start Guide ....................... 122 27.1. EN-V-R Configurator User Interface ................122 27.2. Searching for IP Devices ................... 123 27.3. Registering IP Devices ....................125 27.4. Viewing Live Video ....................127 27.5. Recording Video ....................... 129 28.
  • Page 6 ENVI Series: VTC-IR40-N 34.1.5. System, Network Configuration - IP-CCTV DNS ..........161 35. IP-CCTV DNS Registration ....................162 36. IP-Device Registration ......................167 36.1. IP-Device Registration (Manual) ................168 36.2. IP-Device Registration (Automatic) ................170 IP-Device Modification ....................172 36.3. IP-Device Deletion ....................174 36.4.

  • Page 7: Box Contents

    ENVI Series: VTC-IR40-N 1. Box Contents 1) VTC-IRE40-N Long range Weatherproof IR Bullet camera 2) Mounting Accessories 3) VT-MD-2VOC (Secondary Video Output Cable) 4) ENVI Series CD & Mounting Template 2. Included Accessories 3mm Hex L-wrench Qty: 1 Wall mounting screws...

  • Page 8: Vtc-Ir40-N Layout

    ENVI Series: VTC-IR40-N 3. VTC-IR40-N Layout 3.1. Front View 3.2. Rear Side View...

  • Page 9: Vtc-Ir40-Ninstallation

    ENVI Series: VTC-IR40-N 4. VTC-IR40-NInstallation • Make sure the power is not applied before the installation. 4.1. Mounting The Camera 1. Drill 4 holes into the wall or ceiling using the supplied template 2. Insert the anchors into the drilled holes 3.

  • Page 10: Pan/Tilt Adjustment

    ENVI Series: VTC-IR40-N 2. Ethernet Connection Insert one end of the Ethernet cable into the network jack of your camera, and insert the other end into the data port (switch, router, etc) 3. Alarm Connections This camera support Alarm IN/OUT, Green = alarm IN, Blue = alarm OUT. (For more information, refer to Section 14.5DI (Sensor Input) / DO (Alarm Output) on page 79)

  • Page 11: Setup Menu

    ENVI Series: VTC-IR40-N 3. Camera Rotation Inclination limited to +/-90° max. 4.4. Setup Menu 1. Accessing the Setup Menu & Controls The Setup menu can be accessed and controlled in two ways: a) Via the OSD control joy stick located on the side of the camera...

  • Page 12: Removable Storage

    ENVI Series: VTC-IR40-N b) Via the Web-Admin, Device Configuration> Camera & Motion> Camera Control. NOTICE: If the OSD menu is crushed and blurred, is due to small image size. Please have the secondaryimage size at 640x352 NOTE: For further information on OSD menu, refer to Section14.4Camera Control (Select Models) on page 55.

  • Page 13: Camera Software Installation

    ENVI Series: VTC-IR40-N 5. Camera Software Installation 1. Run IP Installer Software from the CD program on a computer that is on the same network as the IP camera. 2. StartIP Installer, by double clicking the icon “IP Installer” 3. After the program has started, the main window of IP Installer program will appear on the screen as shown below.
  • Page 14 ENVI Series: VTC-IR40-N 7. After the camera was configured by the program automatically, you will be able to get access Go Product Homepage a) Right click over the camera information, “ ” Connect Product Homepage b) Click over the icon “...
  • Page 15 ENVI Series: VTC-IR40-N On Live View you will be able to see live video from your camera. NOTE: For more information, refer to Section 10. ENVI Admin Menu on page 35...

  • Page 16: Vtc-Ir40-N Features

    • 12VDC/24VAC & PoE (Power over Ethernet) Operation 7. IP Installer: Introduction IP Installer is a proprietary utility program for VitekIP products. It enables users of Vitek products to search their network for any Vitek network camera, video server, or network video recorder no matter what IP address it has.

  • Page 17: Installing Ip Installer

    Installing IP Installer If the program is started from the CD supplied with Vitek products, insert the CD in to CD/DVD tray and check the installation file. If it is download or copied from the Internet or any other media, locate the file from the PC’s hard drive.
  • Page 18 ENVI Series: VTC-IR40-N To continue the installation, click Next. The following window will be displayed for location to install. The default location for installation is C:\Program Files\IP Installer. It is recommended to install in this folder, if you want to change it to a different location, click the Browse button to choose...
  • Page 19 ENVI Series: VTC-IR40-N When the files are done copying, the following window will be shown. Click the Finish button to complete the installation.

  • Page 20: Uninstalling Ip Installer

    ENVI Series: VTC-IR40-N 8.2. Uninstalling IP Installer If you want to remove the IP Installer program from your PC, click Start > All Programs > IP Installer > Uninstall. You may be prompt to continue running theuninstall program. Click onthe Yes button, then the following window will be shown on the screen.
  • Page 21 ENVI Series: VTC-IR40-N Click on the Uninstall button to start removing the IP Installer program from your computer. The following window will be displayed. Click on the Finish button to close the window...

  • Page 22: Using Ip Installer

    There are no network devices shown,as it is the first time running the program and nothing has been registered. Scan the network and shows the list of all the Vitek products that IP Search Product Installer program found.

  • Page 23: Search Product

    9.2. Search Product Make sure that your Vitek products are powered and connected to the network, and then click the Search Product button. A status window will pop up to show the progress of the search. Wait until it reaches 100%, or you may press the Cancel button to stop the search at any given timeand proceed with the results made until that moment.
  • Page 24 ENVI Series: VTC-IR40-N Manual Network Setup Configuring the network parameters of the devices in the list can be started either by highlighting and right clickingmouse button or by clicking Manual IP Setupbutton on the main Toolbar. When one IP device is selected, the following screen will appear MAC Address MAC address of the selected device is shown.
  • Page 25 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not. • Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 26: Automatic Network Setup

    HTTP port number of the IP device for web access to homepage. Password Password for the IP device.(Default password for Vitek products is “root”) If you click Apply to all button after changing just a field of one IP device, the remaining IP devices will have the same value for that parameter.
  • Page 27 (IP Address, Netmask, Default Gateway, DNS1, DNS2) Authentication Password for the IP device. (Default password for Vitek products is “root”) (Admin Password) Select whether the configured contents is to be saved in the Camera memory or not.

  • Page 28: Using Dhcp Server

    ENVI Series: VTC-IR40-N Note: If your network has more than one IP address Zone at the same time, the confirmation window will be displayed as below. You need to choose the one you are going to use for your IP devices.

  • Page 29: Using Pppoe

    ENVI Series: VTC-IR40-N For setting up other fields on the setup window, refer toSection0Manual Network Setupon page 23. After filling the fields with appropriate values, click Set button to apply the changed values to IP device. If you don’t want it, click Cancel button to restore the previous values.
  • Page 30 Password for the IP device. (Admin Password) (Default password for Vitek products is “root” unless already changed) Select whether the configured contents is to be saved in the Camera memory or not. • Save Configuration: Changed values will be saved in the Camera memory of the device, which means the changes are permanent.

  • Page 31: Updating Firmware

    IP Installer window. In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you could see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 32 ENVI Series: VTC-IR40-N After clicking OK the following window will be displayed. Note: Do not CLOSE window until completed, to avoid permanent damage to the camera. You can also select multiple IP devices at the same time, and have them start firmware updating in a single step.

  • Page 33: Filter Configuration

    ENVI Series: VTC-IR40-N 9.7. Filter Configuration When you need to search only for the IP device having a specific range of MAC or IP addresses, you can do it by using this feature. To set the search condition, click Filter Configuration button on the Toolbar, then the following window will show up on the screen.

  • Page 34: Live View

    ENVI Series: VTC-IR40-N To start searching with this condition now, click Search Product button on the toolbar. The program will start searching and show the result after a moment. 9.8. Live View Once searching and configuration on IP devices are done, you should make sure that the IP devices are accessible with the new settings.
  • Page 35 ENVI Series: VTC-IR40-N Click Live View on the top right of the window, then ENVI Series Viewer ActiveX program will be started. If you have not installed the ENVI Series Viewer program before, it will ask for a confirmation to install it. Allow it and you will be able to find out whether the configuration by IP Installer program is properly done.

  • Page 36: Envi Admin Menu

    After connecting to a VITEKENVI Series camera via web browser, you’ll find the web page as shown below. The upper rightmost item of the menu is Admin; this is where you can set up most of the features in the VITEK camera you’re connected to. 10.1.

  • Page 37: Admin Menu Structure

    ENVI Series: VTC-IR40-N 10.2. Admin Menu Structure The following table shows the hierarchy of the Admin menu structure that we’re going to deal with in this manual. 11. QuickConfiguration In Quick Configuration, you will be able to set up many of the essential parts of the configuration in a simple manner without going into details.

  • Page 38: Step 4: Ipcctvdns.com

    ENVI Series: VTC-IR40-N 11.4. Step 4: IPCCTVDNS.COM When VITEK Server is used in a Dynamic IP environment, it is required to utilize IPCCTVDNS.com feature. Refer toSection 35. IP-CCTVDNS Registration on page 162for setup information. 11.5. Step 5: Recording Configuration Vitek cameras with MicroSD card can be configured for recording options in this section.Refer to Section 16.1SD / MicroSD Card Configuration on page 90to see how to set up.

  • Page 39: Date & Time

    ENVI Series: VTC-IR40-N As an administrator, you can change the name of the camera/ server, but other values are not allowed to be changed. To change the camera/ servername, enter a new name in the Server Name field. You may use up to 21 alphanumeric or up to 10 Unicode characters. Tab or any other special characters are not allowed.

  • Page 40: Admin Password

    Apply button to put it into effect. Because you have replaced the password with a new one, the existing network connection made with old password to VITEK camera is lost now. You will have to reconnect to the VITEK camera using new password.
  • Page 41 ENVI Series: VTC-IR40-N Enter aUser ID between 4 and 23 alphanumeric characters. In bothPassword and Confirm Password fields, enter the identical password respectively. The password must be between 4 and 23 alphanumeric characters. In Name filed, enter the user’s name up to 23 alphanumeric characters.

  • Page 42: Edit

    ENVI Series: VTC-IR40-N • VS Module ID: VS Module is a network device that has been registered in theVITEKcamera • Camera No.: Among the cameras of the VS Module select one to set up. (between all,1or2) • Alarm Control: Determine if Alarm control is to be allowed.

  • Page 43: Static Ip Configuration

    ENVI Series: VTC-IR40-N 13.1. Static IP Configuration Select Network Configuration under Network configuration For static IP, select Static IP and input IP address, NetMask, Gateway, DNS1, DNS2 and click apply to save settings. After apply, program will ask to close web browser for updates, which will take 20~30 seconds.

  • Page 44: Pppoe Configuration

    ENVI Series: VTC-IR40-N 13.3. PPPoE Configuration PPPoE is used to connect VITEK products to a PPPoE modem provided by the ISP. Since PPPoE needs verification, ID and a password are necessary to access the network. Type in PPPoE user ID and password 13.4.

  • Page 45: Bandwidth Control Configuration

    ENVI Series: VTC-IR40-N 13.5. Bandwidth Control Configuration Bandwidth control is for limiting maximum network traffic. If it is enabled with Bandwidth limits, maximum data size transferred from VITEKcameras won’t exceed bandwidth limits set by users. If transferred data is exceeded, part of the data will be randomly lost.

  • Page 46: Network Status Notify

    ENVI Series: VTC-IR40-N 13.7. Network Status Notify This feature helps to send updated network status information to registered email address if any changes happen. This function will work under DHCP or PPPoE. If Network Status Notify is set to Enable, VITEKcameras network status will be emailed to a specific person in case of the following events: •...

  • Page 47: Ip-Cctv Dns Setup

    ENVI Series: VTC-IR40-N First, select Enable to use the feature. Then enter the address of the SMTP server which is needed for email service. If your SMTP server requires a user ID and a password for authentication, you will have to Enable Authentication Loginand enter the user ID and Password.

  • Page 48: Port Forwarding & Upnp

    ENVI Series: VTC-IR40-N 13.9. Port Forwarding & UPnP UPnP(Universal Plug and Play)is a kind of network protocol to help users to find and configure network products in the same local network area. Port forwarding is to assign a certain network port to a network product so users can access it from outside of the Local Area Network.

  • Page 49: Rtp/Rtsp Setup

    ENVI Series: VTC-IR40-N 13.10. RTP/RTSP Setup Factory default is Enable to be used with other manufactures VMS software’s RTSP (Real-Time Streaming Protocol) is a protocol to transfer video and audio streams over the network. Any application supporting Standard RTSP can be used for VITEKcameras. Quick Time Player or VLC program can be used withthis;...

  • Page 50: Device Configuration

    ENVI Series: VTC-IR40-N Enable: Start RTSP service Service Disable: Stop RTSP service In normal case, use default port number 554 to connect to RTSP service. If not using port 554, enter the port number you want to use. RTSP Port e.g.) port number 445==>rtsp:// network video server ip...
  • Page 51 ENVI Series: VTC-IR40-N To Add a Privacy zone click Newbutton, aGreen-colored box will appear, click on the Green box and it will turn Red, at this point you can resize it by clicking and holding any corner and drag to desired size.
  • Page 52 ENVI Series: VTC-IR40-N Users can add up to 8 Privacy Zones per screen by repeating above steps. If you add more than 8, an error message will display on the screen. To delete a privacy zone, click the zone and click Delete button followed by Apply button.

  • Page 53: Camera & Motion

    ENVI Series: VTC-IR40-N 14.2. Camera & Motion This menu is used to set up the selection of video format, data added to video data, encoding speed, audio control, image resolution, video quality, motion detection, etc. Click Camera & Motion on Device Configuration menu. The configuration menu will be displayed, and it may be different between VITEKcameras.
  • Page 54 • Audio: (not available on all models) Select if Audio function is to be used (applies to Primary Stream only). VITEK Cameras provides 2-way audio streaming by combining microphone input with video data. Users can listen to the streamed audio through a PC and speakers.

  • Page 55: Camera Configuration

    ENVI Series: VTC-IR40-N NTSC 704 x 480 352 x 240 160 x 112 704 x 576 352 x 288 160 x 144 640 x 480 320 x 240 160 x 112 1.3M Pixel 1280 x 1024 640 x 480 320 x 240 160 x 112 2.0M Pixel...

  • Page 56: Rate Control Mode

    ENVI Series: VTC-IR40-N 14.3.1. Rate Control Mode 14.3.2. Image Quality Setup In Image Quality level setup, select “Low Compression” for higher image quality, but it requires higher network bandwidth. Selecting the “Lowest” requires lower network bandwidth, but gives decreased image quality.
  • Page 57 ENVI Series: VTC-IR40-N Exposure AGC (Automatic Gain Control) You can adjust the AGC manually...
  • Page 58 ENVI Series: VTC-IR40-N SENS –UP Allows color video in low light environment without noise (static). Levels of adjustment (x2, 4, 6, 8, 10, 15, 20,30) If set to high ghosting may appear Brightness D-WDR You can select (OFF, Low, Middle, High)
  • Page 59 ENVI Series: VTC-IR40-N DEFOG Enhances image in foggy weather. (The performance is very limited) You can select (OFF, Low, Middle, High) BACKLIGHT>> GAIN Adjusts the amplification of the video through Low, Middle and High levels...
  • Page 60 ENVI Series: VTC-IR40-N AREA To adjust the Area where “BLC” is relevant. Position Position the shaded area by using UP/DOWN/LEFT/RIGHT arrows, then click ENTER SIZE Change the Size using UP/DOWN/LEFT/RIGHT arrows, then click ENTER...
  • Page 61 ENVI Series: VTC-IR40-N Return to Exposure Menu or select arrow right to AGAIN to redo area. DEFAULT Default the settings from BLC Return Return to the Exposure screen...
  • Page 62 ENVI Series: VTC-IR40-N HSBLC BACKLIGHT >> This function is to prevent against the intense light from washing out the picture, such as headlights from a vehicle. SELECT AREA 1 You can select area 1 thru 4 by clicking right or left button.
  • Page 63 ENVI Series: VTC-IR40-N POSITION Using the UP / Down / Left / Right position the area where needed, then click ENTER Size Using the UP / Down / Left / Right position the size needed then click ENTER...
  • Page 64 ENVI Series: VTC-IR40-N Return to Exposure Menu or select arrow right to AGAIN to redo area. LEVEL Adjust the intensity level of the highlight masking...
  • Page 65 ENVI Series: VTC-IR40-N Mode Day or Night for highlight masking BLACK MASK Turns masking ON and OFF DEFAULT...
  • Page 66 ENVI Series: VTC-IR40-N Defaults HSBLC selection RETURN Return to EXPOSURE screen RETURN Return to SETUP screen LENS>> This camera is equipped with an Auto Iris Lens “DC” for the automatic adjustment of lighting conditions.
  • Page 67 ENVI Series: VTC-IR40-N MODE Adjust mode to the proper application (indoor / outdoor) RETURN Return to SETUP screen MANUAL LENS>> FUNCTION NOT AVAILABLE FOCUS ADJ. Adjusts the focus between day and night...
  • Page 68 ENVI Series: VTC-IR40-N D/N DWELL Adjust the time between day and night when POP on CVBS is turned on POP ON CVBS Start sequencing between day and night images for focusing RETURN Return to SETUP screen DAY & NIGHT DAY&NIGHT menu can be set to AUTO, COLOR, B/W or EXT.
  • Page 69 ENVI Series: VTC-IR40-N In AUTO, camera determines DAY or NIGHT by the incoming light level through the lens only and IR CUT FILTER switches following the DAY/NIGHT modes. In COLOR, camera disables DAY/NIGHT feature and works as a regular color camera and IR CUT FILTERis inserted to cut out the infrared spectrum from the light.
  • Page 70 ENVI Series: VTC-IR40-N NR(Noise Reduction) 2D&3DNR are very sophisticated and powerful noise reduction technologies at low light. The process of removing image noise from a video signal by applying a digital 2DNR comb filter 3DNR A 3D filter reduces the noise caused by movement resulting in less blur.
  • Page 71 ENVI Series: VTC-IR40-N 2DNR. ON reduces the noise that can be found in low light images 3DNR ON Reduces the noise caused by movement. Start / End of noise reduction with respect to light level can be set to required levels START THRES sets the point from which 3DNR levels starts when the illumination level dims.
  • Page 72 ENVI Series: VTC-IR40-N SMART NR continuously monitors motion on the screen.When no motion is detected, 3DNR is automatically activated for the maximum reduction of noise at low light. 3DNR becomes immediately deactivated upon motion. This will save HDD space PICT ADJUST (Picture Adjustment) InPICT ADJUST menu, WHITE BAL, SHARPNESS, MONITOR, OSD COLOR, CORNER COMP andD-EFFECT can be set.
  • Page 73 ENVI Series: VTC-IR40-N SHARPNESS Increases or decreases the sharpness of the picture.Too much sharpness makes the image harsh and shows more noise and line flicker at the edge of objects in the picture. MONITOR Sets LCD or CRT. LCD: GAMMA, BLUE, GAIN or RED GAIN is adjustable for the best view with LCD monitor.
  • Page 74 ENVI Series: VTC-IR40-N TEXT COLOR - Can be change to 1 of 8 colors. Selected color is applied to menu text and cameratitle. OUTLINE – Makes the letters bold BACK TABLE - Is the color bar where the cursor is located CORNER COMP Enhances brightness of the corners caused by the lens, or the narrow angle of IR LEDs.
  • Page 75 ENVI Series: VTC-IR40-N MIRROR:OFF(normal display), MIRROR(Left & right mirrored), V-FLIP(upside down) and ROTATE(H/V-FLIP) D-Zoom (Function not available) NEG.IMAGE: If set to ON,. SPECIAL In SPECIAL menu, CAM TITLE, MOTION, PRIVACY, LANGUAGE, PIXEL COM and TV SYSTEM can be set.
  • Page 76 ENVI Series: VTC-IR40-N CAM TITLE: OFF / ON. When on click ENTER Up to 15 characters can be use on camera title line, use ▲,▼,◀,▶ to navigate around chart, when letter or character is flashing click ENTER, continue this in till completed. When done arrow over to POS (POSITION), click ENTER and position camera title to desire location, click enter to return to previous screen and arrow over to END and click ENTER.
  • Page 77 ENVI Series: VTC-IR40-N Note USE Privacy settings under Device Configuration LANGUAGE English, Japanese, Chinese 1, Chinese 2, German, French, Italian, Spanish and Polish. PIXEL COMPENSATION Sometimes image sensors have defective pixels, this can be compensated in two different ways LIVE DPC, compensates the defective pixels in real time and STATIC...
  • Page 78 ENVI Series: VTC-IR40-N ON - Enables LIVE DPC and compensates the defective pixels whose magnitude exceeds the threshold by set level. OFF - Disables LIVE DPC. Note: High setting of LEVEL in LIVE DPC reduces the sharpness STATIC DPC Detects the defective pixels with lens closed and saves the data for compensation ON -Enables the compensation for the detected defective pixels.
  • Page 79 ENVI Series: VTC-IR40-N STATIC THR For white dots (noise) caused by a defective pixel exceeding the levels will be compensated. The lower the setting the more pixels will be compensated up to 1024 staring from top to bottom. PIXEL BOOST It is easier to detect defective pixels with PIXEL BOOST, but the higher the level the more noise might be detected by mistake and give a false reading.

  • Page 80: Di (Sensor Input) / Do (Alarm Output)

    ENVI Series: VTC-IR40-N Factory Defaults the camerasettings (Not the network settings) EXIT Exits the Set up menu 14.5. DI (Sensor Input) / DO (Alarm Output) Select DI/DO from Device Configuration menu to name and configure Sensor Input and Alarm Output. After configuring, select DI Status/DO Control on Device Configuration menu to manually control DO (Alarm Output) and check status of DI (Sensor Input).
  • Page 81 ENVI Series: VTC-IR40-N DI/DO functionality can be set to either Normal Open or Normal Closed type as follows. • Normal Open Type: Normal is OPEN, and goes CLOSED when triggered by an event. • Normal Close Type: Normal is CLOSED, and goes OPEN when triggered by an event.

  • Page 82: Advanced Configuration

    ENVI Series: VTC-IR40-N 15. Advanced Configuration There are two types of advanced service, one is Buffered Service and the other is Periodic Service. In Buffering Service, a series of images are continuouslybeing stored in a buffer memory of thecamera/server for a certain period of time. When the camera/server is triggered by an event or schedule, the images or alarm statusjust before and after the event/schedule are reported to you by email or buffered FTP services.

  • Page 83: Advanced Services

    ENVI Series: VTC-IR40-N 15.1. Advanced Services Pre-Alarm buffer size and buffering speed can be defined here. • Pre-Alarm Buffer Size: You can set the buffer size which will store the images before event. The unit is in frame, and each channel can be set with different values. The total number of frames for Pre-Alarm Buffer and Post-Alarm Buffer is limited to 10 frames.

  • Page 84: E-Mail Service Configuration

    ENVI Series: VTC-IR40-N 15.1.1. E-mail Service Configuration Email configuration is set up here for Alarm in case any event occurs. Item Description Camera 1~2 Select a channel to be configured for email notification Service Select Enable in order to use this service SMTP server address Enter SMTP server’s address for sending email.
  • Page 85 ENVI Series: VTC-IR40-N E-mail Service Setup for Each Channel For each channel, the following items can be configured for email service: Condition, Post-Alarm Buffer Size, and Post-Alarm speed. The content of text message and display style of DI value can be configured as well.
  • Page 86 ENVI Series: VTC-IR40-N After finishing setup, click Save button to apply. If you don’t want to change, click Back button. Condition, Schedule & Event Configuration If you click on a Condition link, the Advanced Service windows is displayed as shown below.

  • Page 87: Ftp (Buffered) Service Configuration

    ENVI Series: VTC-IR40-N 15.1.2. FTP (Buffered) Service Configuration Item Description Camera 1 - Camera Select which channel to set up for FTP (Buffered). Select Enable to use the FTP (Buffered) service. Otherwise select Service Disable. Server Address FTP Server Address.
  • Page 88 ENVI Series: VTC-IR40-N User ID Enter a User ID to log in to FTP server. Password Enter the Password for the user ID to log in to FTP server FTP Control Port Port number for FTP server (Normally 21 is used)

  • Page 89: Ftp (Periodic) Service Configuration

    ENVI Series: VTC-IR40-N Item Description Condition 1 ~ Select a condition for FTP (Buffered) service to be activated. Up to 3 Condition 3 conditions can be set. Pre-Alarm Buffer Size The Buffer size assigned for Pre-Alarm. Check Video buffer Click this link to go to Advanced Services for video buffer setup.
  • Page 90 ENVI Series: VTC-IR40-N Item Description Camera 1 - Camera 2 Select which channel to set up for FTP (Periodic) service Select Enable to use the FTP (Periodic) service. Otherwise select Service Disable. Server Address FTP Server Address. The directory in FTP server where the data will be uploaded.

  • Page 91: Recording Configuration For Cameras With Sd Card

    16.1. SD/ MicroSDCard Configuration If a SD card is not present in the slot already, power down the VITEK IP camera before inserting an SD card. Make sure to turn the power on after inserting the SD card. Open a webbrowser, type in the IP address of the VITEK camera.
  • Page 92 ENVI Series: VTC-IR40-N If entire SD information is showing “-NONE-” this means SD card is not formatted, in this case click Note: Be sure to turn off the device before installing a SD card. Otherwise, the SD card may become defective. Always check the recommended type of SD card because non-conforming SD cards can cause abnormal behavior of the system.
  • Page 93 ENVI Series: VTC-IR40-N Note: if program is terminated during the “Format” process SD Card might be damaged After formatting is completed the following screen will be displayed Click OK and you will be brought back to the “SD Status & Format screen” click on “Reboot”...

  • Page 94: Recording Configuration With Sd Card

    ENVI Series: VTC-IR40-N 16.2. Recording Configuration with SD card Each camera has 2 streams (referred as Camera 1 / Camera 2 (see image below)) which can be configured for recording options in this section. Configuration items include motion detection recording, 24-hour continuous recording, event-driven recording, etc.
  • Page 95 ENVI Series: VTC-IR40-N Select Condition 1andthe following window will be display. Enable / Disable...

  • Page 96: Utilities

    ENVI Series: VTC-IR40-N By clicking on Enable you will be able to select your mode (Always, Schedule only etc). in this example we will be selecting “Event Only”. Schedule Under Scheduleyou can select time and date for motion recording if left blank motion recording will be 24hrs, 7 days a week.

  • Page 97: System Log

    System log file provides you the information about when and who access’ the contents of VITEKCameras such as HTTP file or CGI programs. In each line, log data consists of date, time, category, IP address, user ID. 17.2. Save Configuration VITEK cameras save the configurations after every step.

  • Page 98: Reboot

    ENVI Series: VTC-IR40-N 17.3. Reboot It is recommended to reboot the system after making changes to the configuration. To reboot, click Reboot on Utilities menu. A screen will display to confirm a system reboot, click ok to continue. Windows Internet Explorer will ask to close the webpage, click Yes.

  • Page 99: System Update

    ENVI Series: VTC-IR40-N 17.5. System Update ** Is Highly Recommended to Use the IP Installer Program for This Process ** Once IP devices are searched and shown on the screen as functioning successfully, you can update the firmware of them using the“IP Installer” program. To do that, first check the firmware version...
  • Page 100 ENVI Series: VTC-IR40-N In the above picture, the firmware version of this product is 4.14-01-ds while the latest firmware version available is 4.16-B0-ds-VI as you can see at Vitek’s homepage (http://www.vitekcctv.com/Downloads.asp). If you decide to update the firmware, first create a folder on your computer for the update firmware, than download the latest firmware to that folder.
  • Page 101 ENVI Series: VTC-IR40-N Note:Do not CLOSE window until completed, to avoid permanent damage to the camera.

  • Page 102: Envi Series Viewer

    TCP/IP network. ENVI Series Viewer works with EN-V-R network video software, Vitek Network Video Servers, Network Video Recorders, and Network Cameras to show real-time live video images and enables users to control audio, Relay Output, and PTZ functions.

  • Page 103: Installing And Uninstalling

    19.1. Installing ENVI Series Viewer Connect to the Vitek Camera/Server using Internet Explorer, and click Live View on the main page. Then ENVI Series Viewer will be automatically downloaded and installed. If an Internet connection is not available, it's possible to manually install the program file in advance (from supplied CD) and connect to the Vitek Camera / Server later.
  • Page 104 ENVI Series: VTC-IR40-N Click the Install ActiveX Control, and the pop-up window will be displayed as above. Click the Install button. Click “YES” to allow program to run. After the installation is successfully completed, ENVI Series Viewer window will be displayed.

  • Page 105: Manual Installation

    ENVI Series: VTC-IR40-N 19.1.2. Manual Installation When an Internet connection is not available or having some difficulties, you can manuallyinstall from the supplied CD usingENVI Series Viewer program file.Execute the downloaded file, and you will see the ENVI Series Viewer Setup Wizard window as shown below. Click the Install button to start installing.

  • Page 106: Uninstalling Envi Series Viewer

    ENVI Series: VTC-IR40-N 19.2. Uninstalling ENVI Series Viewer There are two ways to uninstall ENVI Series Viewer program from your computer. Before uninstalling, close all the Internet Explorer windows. 19.2.1. Uninstalling with Program Menu Click Uninstall and the following window will be shown. Click the Yes button.

  • Page 107: Uninstalling On Control Panel

    ENVI Series: VTC-IR40-N 19.2.2. Uninstalling on Control Panel Click Start button on the screen, then select the Control Panel. In the Control Panel window, double-click the Add or Remove Programs icon.

  • Page 108: Starting Envi Series Viewer

    Uninstall /Changebutton. Then, it will start uninstalling the program. 20. Starting ENVI Series Viewer Once ENVI Series Viewer is installed in your computer, you can start it by connecting to the Vitek Camera / Server using Internet Explorer and select Live View on the main menu.

  • Page 109: Control Bar

    ENVI Series: VTC-IR40-N The appearance of ENVI Series Viewer window varies depending on what type of Vitek Server is connected (Network Video Server, Network Camera, or Network Video Recorder). • ENVI Series Viewer window for Network Video Server or Network Camera 20.1.

  • Page 110: Channel Control Bar

    ENVI Series: VTC-IR40-N 20.2. Channel Control Bar Displays or hides live view video from channel 1 Displays or hides live view video from channel 2 Displays or hides live view video from ALL channels No Display 20.3. OSD Channels Buttons 20.3.1.

  • Page 111: Saving As Video File

    ENVI Series: VTC-IR40-N 20.3.2. Saving as Video File In ENVI Series Viewer, Live video currently displayed can be captured and recorded as a video file in AVI format. Select a live view you want to save, and click RecAvi button on OSD ChannelButtons. Clicking it again will stop recording.

  • Page 112: Instant Playback

    ENVI Series: VTC-IR40-N recorded to the SD Card by clicking this button. The recorded video can be viewed by Instant Playback feature of OSD Channel Buttons or by running ENVI Series Player program. To finish, click the icon again. Max duration is 1 minute and recording will be stopped after 1 minute.

  • Page 113: Extended Features

    ENVI Series: VTC-IR40-N Set the beginning of video data. Instant playback will scan 1 min after this. Se the playback speed. Begin searching data Playback Reverse playback. 1 frame playback 1 frame reverse playback Pause Stop 20.4. Extended Features When you click the right mouse button on the Live View Window, a pop-up menu will appear for extended features as shown below.

  • Page 114: Flip Control

    ENVI Series: VTC-IR40-N 20.4.3. Flip Control Flip Control: The horizontal view of the image can be changed using the (mirror) function. The vertical view of the image can be changed using the (flip) function. 21. EN-V-R: Introduction This User's manual explains how to set up EN-V-R software in your PC. EN-V-R is the integrated system software for video security applications, which runs on Microsoft’s Windows-based computers.

  • Page 115: Requirements For Installation

    ENVI Series: VTC-IR40-N 22. Requirements for Installation 22.1. EN-V-R Versions EN-V-R is supplied to customers in different versions for each appropriate application. Users will need to choose the right versions for their needs. Support Version Register Time Recording Retransmission Max Recoding...

  • Page 116: Installing En-V-R

    ENVI Series: VTC-IR40-N 720P Intel Core i-5 460M 1.5GB 1080P Intel Core i-5 -2500 3.0GB Intel Core i-5 661 1.5GB 32 channels 720P Intel Core i-5 -2400S 2.0GB 1080P Intel Xeon X5590 Dual CPU 4.0GB Intel Core i-5 -2500 3.0GB...
  • Page 117 ENVI Series: VTC-IR40-N The default location for installation is C:\Program Files\Vitek. It is recommended to install in this folder, but if you want to change it to another location, click Browse button to choose a proper path. Now click Install button.
  • Page 118 ENVI Series: VTC-IR40-N After installing EN-V-R programfor the first time, it needs to be configured before use, so it automatically executes the configuration program, which is called EN-V-R Configurator. Enter the proper Admin Password. The default password is root. The following screen will be displayed, click OK to continue.

  • Page 119: Uninstalling En-V-R

    ENVI Series: VTC-IR40-N For more information about the EN-V-R Configurator program, refer toSection 26.Starting EN-V-R Configuratoron page 121. 24. Uninstalling EN-V-R 24.1. Closing Active EN-V-R If you need to uninstall EN-V-R, first you need to make sure EN-V-R program is not running on your computer by checking the system icon.

  • Page 120: Executing Uninstaller

    24.2. Executing Uninstaller To start uninstalling, click Start >All Programs >Vitek>EN-V-R>Uninstall. When the following window appears, click YES button. The progress of uninstalling is displayed. After all the install files are deleted, the following window will be displayed. Click OK button on the...

  • Page 121: Components Of En-V-R Program

    ENVI Series: VTC-IR40-N 25. Components of EN-V-R Program EN-V-R Service, EN-V-R Configurator, and EN-V-R Controller EN-V-R consists of three programs, ( 25.1. EN-V-R Configurator EN-V-R Configurator is used to set up various parameters and conditions of EN-V-R Service. Users can register, modify, and delete IP devices and users with this program.

  • Page 122: Starting En-V-R Configurator

    ENVI Series: VTC-IR40-N 26. Starting EN-V-R Configurator EN-V-R Configurator starts automatically right after installation is completed; you may also click the EN-V- R icon on the Windows desktop. If EN-V-R program is already running in background, you may also select the EN-V-R icon on the system tray by clicking right button of the mouse.

  • Page 123: Quick Start Guide

    ENVI Series: VTC-IR40-N Now EN-V-R Configurator window will be displayed. 27. Quick Start Guide EN-V-R is full-functioning Network Video Recorder software that runs on your PC. When started for the first time after EN-V-R is installed, there is no IP devices connected.

  • Page 124: Searching For Ip Devices

    ENVI Series: VTC-IR40-N Items Descriptions Main Toolbar Frequently-used menu items are shown on this toolbar. Configuration Menu tree Configurable categories are shown as a menu tree style. Configuration Menu Descriptions and usages of the selected category are displayed. Description Menu items for the selected category are shown.
  • Page 125 ENVI Series: VTC-IR40-N You are now given a choice to register the IP devices by “search and register or manually”. To make it easy, choose Search and register IP-Device in this stage, and click Next button. On the following window,click Scan button.

  • Page 126: Registering Ip Devices

    ENVI Series: VTC-IR40-N 27.3. Registering IP Devices After scanning is finished, you have a list of IP devices found on your network. Next step is registering them. Double click the IP device you want to register or you may highlight it and then click Register button.
  • Page 127 ENVI Series: VTC-IR40-N Click on Save after configuring IP device (camera) Click Apply after registering one or more IP devices (cameras).The image below represents the configurator with multiple IP devices registered.

  • Page 128: Viewing Live Video

    ENVI Series: VTC-IR40-N After clicking Apply, the program will ask you to confirm it.Then click OK EN-V-R service is being stopped momentarily, and then it will start running again. 27.4. Viewing Live Video Once the network and cameras are set up, it is necessary to check if EN-V-R is functioning by viewing the live video from those devices.
  • Page 129 ENVI Series: VTC-IR40-N Click Live View on top right part of the window to see the live video from registered IP devices (cameras) If this is the first time you are using VitekLive View feature, the web browser may ask you to allow installing of an ActiveX program.

  • Page 130: Recording Video

    ENVI Series: VTC-IR40-N 27.5. Recording Video The essential feature of EN-V-R is recording the video from IP devices. Before starting the recording, it is required to prepare the hard drive of your PC where EN-V-R program is running. Click Disk Quota on the Menu tree.
  • Page 131 ENVI Series: VTC-IR40-N Possible Maximum Quota (the available of free space on your HDD) Possible Minimum Quota (the minimum amount required) Set Quota (desired amount of HDD to be use for recording) To set up the recording feature, select an IP device from the Menu tree on the left pane. The device information will be shown on the right pane.
  • Page 132 ENVI Series: VTC-IR40-N The recording feature is already enabled and recording conditions are configured in default settings. In the example shown above, you can see that Camera 1 of Device 0 will record video only when motion is detected. ClickOK to use this Recording Conditioned.
  • Page 133 Now that the configuration is done, you need to start the EN-V-R service program. Select Start > All Programs >Vitek>smart NVR>Smart NVR controller. You will find the EN-V-R icon on the system tray, which is located right, bottom part of the Windows desktop.

  • Page 134: Envi Smart Player

    ENVI Series: VTC-IR40-N You can find out from this window that the service is running at that moment. If not, click Start Service button to run. Once EN-V-R service is started, the video sent from the configured camera will be recorded according to the recording condition.

  • Page 135: System Requirement For Pc

    Installing Smart Player Connect to the Vitek Camera / Server / NVR on Internet Explorer, and click Player on the main page. If you're using Windows XP Service Pack 2 or later, it may asked you to install ActiveX click the...

  • Page 136: Manual Installation

    ENVI Series: VTC-IR40-N After the installation is successfully completed, Smart Player window will be displayed. 29.1.1. Manual Installation When an Internet connection is not available or having some difficulties, you can manually download and install the Smart Player program file prior to setup, visit http://www.vitekcctv.com/Downloads.asp. You may also install from the provided CD.

  • Page 137: Uninstalling Smart Player

    ENVI Series: VTC-IR40-N After installation is successfully completed, the following window will be displayed. Click Finish. 29.2. Uninstalling Smart Player Before uninstalling, close all the Internet Explorer windows. 29.2.1. Uninstalling on Program Menu Click Uninstall and the following window will be shown. Click the Yes button.
  • Page 138 ENVI Series: VTC-IR40-N Live View & Play Back To live view and play back your cameras, go to Start menu, All Programs, Vitek Folder, Click on Smart NVR Controller, as shown below. Look for icon on right side of taskbar as shown below (windows XP and windows 8 might show it different).
  • Page 139 ENVI Series: VTC-IR40-N Click on Start Service to run the program. Click on Go Home to view Smart Player Home Page Click on Live View The following screen will be display were you can configure your live view.
  • Page 140 ENVI Series: VTC-IR40-N Server Control Bar Allows you to view cameras / servers that are registered in the system. Toggle On/Off Group Control Bar...
  • Page 141 ENVI Series: VTC-IR40-N In order to view video, cameras must be assigned to a group, in this section you create groups with cameras you want to view. Create Group In order to create a group in Group Control Bar, right click on Group, another window will appear then select New.
  • Page 142 ENVI Series: VTC-IR40-N PTZ control Bar In this section you will be able to control PTZ’s connected to the system. Audio Control Bar Controls Speaker and Mic volume. When audio is available click on Connect and adjust speaker and mic levels, when done click...
  • Page 143 ENVI Series: VTC-IR40-N Full/Normal Screen Select full screen as seen below, to return to normal press Escon your keyboard. Group Circulation Start sequencing between groups.
  • Page 144 ENVI Series: VTC-IR40-N Layout settings You can change the screen layout between 1,2,4, etc. Image in Original Size This allows for digital zoom.
  • Page 145 ENVI Series: VTC-IR40-N Draw Image by Maintaining Aspect Ratio Maintains the aspect ratio of the camera Draw Image by Filling the Screen...
  • Page 146 ENVI Series: VTC-IR40-N Enhanced Draw Mode On/Off. Enhance image for a better reproduction.

  • Page 147: Configuring& Viewing Player

    ENVI Series: VTC-IR40-N About Smart Viewer You can see the status of the Smart Viewer 30. Configuring& Viewing Player From the Home Screen click on Player...

  • Page 148: Main Window View

    ENVI Series: VTC-IR40-N 30.1. Main Window View Note:The appearance of Smart Player window may vary depending on version and type of Vitek device you’re using. This user’s manual is based on general display screen. Server Control Allows you to view cameras / servers that are registered in the system.

  • Page 149: Connecting To Nvr Player

    ENVI Series: VTC-IR40-N You can compose a new group by dragging&dropping servers, modules, and Group Control cameras into a group.Grouping provides search function of recorded video from BarB cameras. Playback Control Users can use this bar for functions such as forward/reverse play, previous frame, next frame, pause, stop, playback speed.
  • Page 150 ENVI Series: VTC-IR40-N The following window will be displayed. Type in the group name and click OK. A new group with the assigned name will be created as shown below. To add a camera to the new group, drag and drop from the server tree to the newly created group.

  • Page 151: Searching Video

    ENVI Series: VTC-IR40-N 31. Searching Video Make sure you have recorded video on the calendar (recorded video shows in red). There are three choices in searching recorded video - Day Search, Condition Search, and Data Search. Make sure that Camera / Server Connection and Creating Group have been performed before you search recorded video.

  • Page 152: Search Mode

    ENVI Series: VTC-IR40-N 31.2.1. Search Mode By clicking a date in red on the calendar, the time frame recorded is shown. 31.2.2. GO to Time Position To go to specific time click on “Go to time position” than input time and click search.

  • Page 153: Advanced Search Mode

    ENVI Series: VTC-IR40-N video will start playing back right after searching is completed. 31.3.1. Advanced Search Mode In Advance Search Mode you can select which conditions to search from (Time, Event, etc) First, select Time checkbox, and choose the desired time frame (Start date and time ~ End date and time), and then click Add Condition button to add to Search Condition.

  • Page 154: Video Playback Controls

    ENVI Series: VTC-IR40-N Now that all the conditions have been configured, click Search button to start searching. Any video data which meets at least one of the conditions in Search Condition list will be shown as the results. 32. Video Playback Controls...

  • Page 155: Extra Features

    ENVI Series: VTC-IR40-N Back to Previous Frame Go to Next Frame Playback Speed Control Player Path Control (only for condition search mode) 33. Extra Features 33.1. Window Control Users canopen or close control windows. 33.2. Recording Period You can view the starting and ending date of a recorded channel.

  • Page 156: Backup

    33.3. Backup There are two backup formats IDX and AVI. .IDX Default video file format used by Vitek .AVI Video file format supported by Microsoft Windows When the Backup button is clicked, the following window is displayed as below. Check the camera to backup. For AVI backup, only one camera is Select Camera permitted.

  • Page 157: Snapshot

    ENVI Series: VTC-IR40-N After searching is finished, backup operation will start. When backup is completed, the following window will appear. Click OK button. Note: For AVI file backup, only one camera is allowed. For IDX backup, multiple cameras are allowed.

  • Page 158: Print

    ENVI Series: VTC-IR40-N The below picture is a result of snapshot from the above window. 33.5. Print Choose the camera currently being played or paused, then click Print button. Then the image of the selected camera will be sent to your default printer.

  • Page 159: En-V-R Configuration

    ENVI Series: VTC-IR40-N 34. EN-V-R Configuration 34.1. System, Network Configuration General system and network properties of EN-V-R program can be set up in this section. To start, select System, Network Configuration from the menu list.

  • Page 160: Configuring System Name

    ENVI Series: VTC-IR40-N Items Descriptions System Name Setting Enter the system's name. Set up Admin password Modify the password for Admin. Access Control Configure the access privileges of users. HTTP Port Assign Assign an HTTP Port for EN-V-R Service. Configure IP-CCTV DNS Configure IP-CCTV DNS for EN-V-R Service 34.1.1.

  • Page 161: System, Network Configuration - Admin Password

    ENVI Series: VTC-IR40-N Items Descriptions System name Type in a System name. Click this button to apply the entered System Name. Cancel Click this button to discard the configured System name. 34.1.2. System, Network Configuration - Admin password To assign Password for the admin, click System, Network Configuration on the menu tree. Click...

  • Page 162: System, Network Configuration - Http Port

    ENVI Series: VTC-IR40-N Items Descriptions Set Full Access for the user. Anyone can connect to the EN-V-R without Full Access authentication, and be allowed live view, audio, PTZ, playback. Set Limited Access for the user. Only the users with proper permission to Limited Access the camera can access it.

  • Page 163: Ip-Cctvdns Registration

    Items Descriptions Service Set to use IP CCT DNS or not. DNS Server IP Vitek IP CCTV DNS address already entered. Go Server Directs to Vitek IP CCTV DNS server MAC address of EN-V-R already entered Product Key Product Key of EN-V-R already entered External Port Enter an external HTTP Port to use for IP CCTV DNS service.
  • Page 164 ENVI Series: VTC-IR40-N Fill out the requested information as shown below and click on Apply. The following screen will confirm that your Membership has been completed successfully, that click OK. You will be brought back to the main page of the IPCCTVDNS website; in this case you need to Login...
  • Page 165 ENVI Series: VTC-IR40-N To register your first product, click on Product Registrationas shown below. Enter the requested information (The name of your camera, the Mac Address and product Key) as shown below. Network Configuration>> IP- Note that the Mac Address and the product Key will be available under the CCTV DNS setupin thecamera menu.
  • Page 166 ENVI Series: VTC-IR40-N A window will pop up confirming that your product has been registered successfully, click on OK. Product List You will be directed to the page where you will be able to see your recent camera registration. By clicking the Detail Information tab you will be allow edit DDNS Host Name Click Edit to change the DDNS Host Name.
  • Page 167 ENVI Series: VTC-IR40-N A window will pop up asking if you really want to apply the new configurations, to continue click OK. A window will pop up confirming that the product information has been modified successfully, click OK. Click under Product List to view your changes...

  • Page 168: Ip-Device Registration

    ENVI Series: VTC-IR40-N Your camera is now registered and ready for use. 36. IP-Device Registration You will see how to manage IP devices in this section, which includes registering, modifying, and deleting IP devices. To start managing IP devices, select IP-Device, Camera Management from the menu list.

  • Page 169: Ip-Device Registration (Manual)

    ENVI Series: VTC-IR40-N Items Descriptions IP-Device Manual Registration Register IP-Devices manually by users. IP-Device Automatic Scan and register IP-Devices automatically by the Registration program. IP-Device Modification Modify the information of registered IP-Devices. IP-Device Deletion Delete IP-Devices previously registered. IP-Device Homepage Go to the homepage of the IP-Device.
  • Page 170 ENVI Series: VTC-IR40-N Item Description IP-Device ID Select the IP-Device ID to register. Select the Vendor name of the IP-Device to register. Click the pull-down list, and choose a proper vendor name from the list. Vendor Select the total number of channels (streams) the IP device has. Click the Model pull-down list, and choose proper one from the list.

  • Page 171: Ip-Deviceregistration (Automatic)

    Check this box if the information from IP-Device needs to be acquired. from IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek products VS Module ID can be set to 0 to 15, and default is 0.
  • Page 172 ENVI Series: VTC-IR40-N Items Descriptions This list shows the IP devices found during the scan process. If you need IP-Device list to select multiple IP devices at the same time, drag your mouse over the devices or keep pressing CTRL or SHIFT key while clicking the IP devices.

  • Page 173: Ip-Devicemodification

    ENVI Series: VTC-IR40-N Items Descriptions Descriptions of the image resolution modes in the IP-Device Resolution Description list.(R1, R2, R3, R4, R5, R6, R7, R8, R9, R10) Descriptions of the PTZ numbers in the IP-Device list. PTZ Install Description (P1, P2, P3, P4) IP-Device list IP-Device list to select from.
  • Page 174 (not allowed to modify) Getting Information from (not allowed to modify) IP-Device Select the VS Module ID. Enter 0 for non-Vitek IP devices. Vitek VS Module ID products can be set to 0 to 15, and default is 0. HTTP Port Enter the HTTP Port to use with the IP-Device.

  • Page 175: Ip-Devicedeletion

    ENVI Series: VTC-IR40-N Cancel Click this button to discard the changed values. 36.3. IP-DeviceDeletion To delete a registered IP-Device, click IP-Device, Camera Management on the menu tree in the left pane. Then select an IP device to be deleted from the list. Click Remove IP-Device registration 36.4.

  • Page 176: Configure Camera Name And Information

    ENVI Series: VTC-IR40-N Camera Information Configure Information of the selected camera. Resolution and Quality Choose the resolution and quality of cameras. Recording Conditions Set up recording conditions. Alarm and Map service settings Configure Alarm and Map service functions. 36.5.1. Configure Camera Name and Information From the configuration list, select a camera to be assigned with a name.

  • Page 177: Camera Resolution, Quality

    ENVI Series: VTC-IR40-N The below image will be display, enter name (F), then click Apply to camera(H), then OK. Items Descriptions A,B,C,D Camera Selection Select one or more cameras for name assignment by clicking buttons. Unselect All Clear the device list which shows the selected cameras.

  • Page 178: Configure Camera Recording Condition

    ENVI Series: VTC-IR40-N Items Descriptions A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Resolution Select the video resolution. Quality Select the video quality. Apply to Camera Apply the selected video resolution and quality to the system.
  • Page 179 ENVI Series: VTC-IR40-N The below image is where you adjust the recording parameters. Item Description A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Condition List Define the condition for recording to be started.
  • Page 180 ENVI Series: VTC-IR40-N Pre Alarm Images Select pre-alarm images. Pre Alarm Speed Select pre-alarm speed. Post Alarm Images Select post-alarm images. Post Alarm Speed Select post-alarm speed Click this button to confirm the change and exit the window. Cancel Click this button to cancel the all the changed made in this session.

  • Page 181: Alarm, Event Configuration

    ENVI Series: VTC-IR40-N 36.5.4. Alarm, Event Configuration To configure the Alarm and Event features, select a camera to configure, and then click Configure alarm, map service Item Description...

  • Page 182: User Management

    ENVI Series: VTC-IR40-N A,B,C,D Camera Selection Select one or more cameras by clicking buttons. Unselect All Clear the device list which shows the selected cameras. Alarm Service Setup Put check marks on alarm types to use. Event Service Setup Put check marks on event types to use.

  • Page 183: User Registration

    ENVI Series: VTC-IR40-N 36.6.1. User Registration To register a new user, click the 1'st button on the tool bar in the sub-menu toolbar. Items Descriptions User ID Enter a new User ID to register. Password Enter the Password for the new user.

  • Page 184: Userdeletion

    ENVI Series: VTC-IR40-N To modify a user's information, select the users name than click the second button on the submenutoolbar. The User Registration window will come up on the screen, make the necessary changes and click OK . 36.6.3. UserDeletion To delete an existing user, select the user name than click Remove Registered user account, another screen will pop up confirming to proceed with deletion, click OK to proceed .

  • Page 185: Disk Mode Change

    ENVI Series: VTC-IR40-N device list. The following window will be displayed. Item Description Use HDD Decide whether this HDD is to be used. Possible Maximum Quota Display Possible maximum quota on this HDD. Possible Minimum Quota Display Possible minimum quota on this HDD.
  • Page 186 ENVI Series: VTC-IR40-N Items Descriptions Disk Circulation Setup Configure disk circulation type. Disk Usage Report Setup Configure email address for reporting. Click the Disk Circulation in the list. The following window will be displayed. Item Description Use circulation Select this if disk circulation will be used.

  • Page 187: Utilities

    ENVI Series: VTC-IR40-N Item Description Use to report HDD usage Choose whether to Enable or Disable the report service. When disk circulation is not used, select the HDD size when it will be Report HDD space reported by email. Periodic report Define when Periodic reports will be sent.

  • Page 188: About Program

    ENVI Series: VTC-IR40-N email account for mail service Item Description Service Decide whether to report HDD usage by email or not. SMTP server Enter the address of SMTP server for sending email. Authentication Decide whether to use Authentication. Email user id Enter the sender's id for email account.

  • Page 189: Using En-V-R Controller

    Click this button to close the Window. 37. Using EN-V-R Controller To open EN-V-R controller,click Start >All Programs>Vitek>SMART NVR Controller. Smart NRV controller will be on the lower right part of the system tray. Then right click the icon a sub- window will display, click on Open Smart NVR Controller.

  • Page 190: Connecting To En-V-R

    ENVI Series: VTC-IR40-N Items Descriptions Current Service State Shows whether EN-V-R Service is running or stopped. Start Service Click this button to start EN-V-R Service when it’s stopped. Stop Service Click this button to stop EN-V-R Service when it’s running.

  • Page 191: Pc Without En-V-R

    ENVI Series: VTC-IR40-N After you successfully connecting to the EN-V-R homepage, you will see the following window. Items Descriptions Home Go to EN-V-R’s homepage. Click this button to execute Live View program. You can use various Live View features such as live view, audio transmission, PTZ control, unconditional recording, etc.
  • Page 192 ENVI Series: VTC-IR40-N In case that the HTTP port for EN-V-R is not 80 (default), the port number should be entered  together with the IP address. (the example below assumes HTTP port of 7777)
  • Page 193 VOID in the event of alteration, defacement, or removal of serial numbers. Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.
  • Page 194 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70 VERSION 3 03/2013...

Table of Contents
